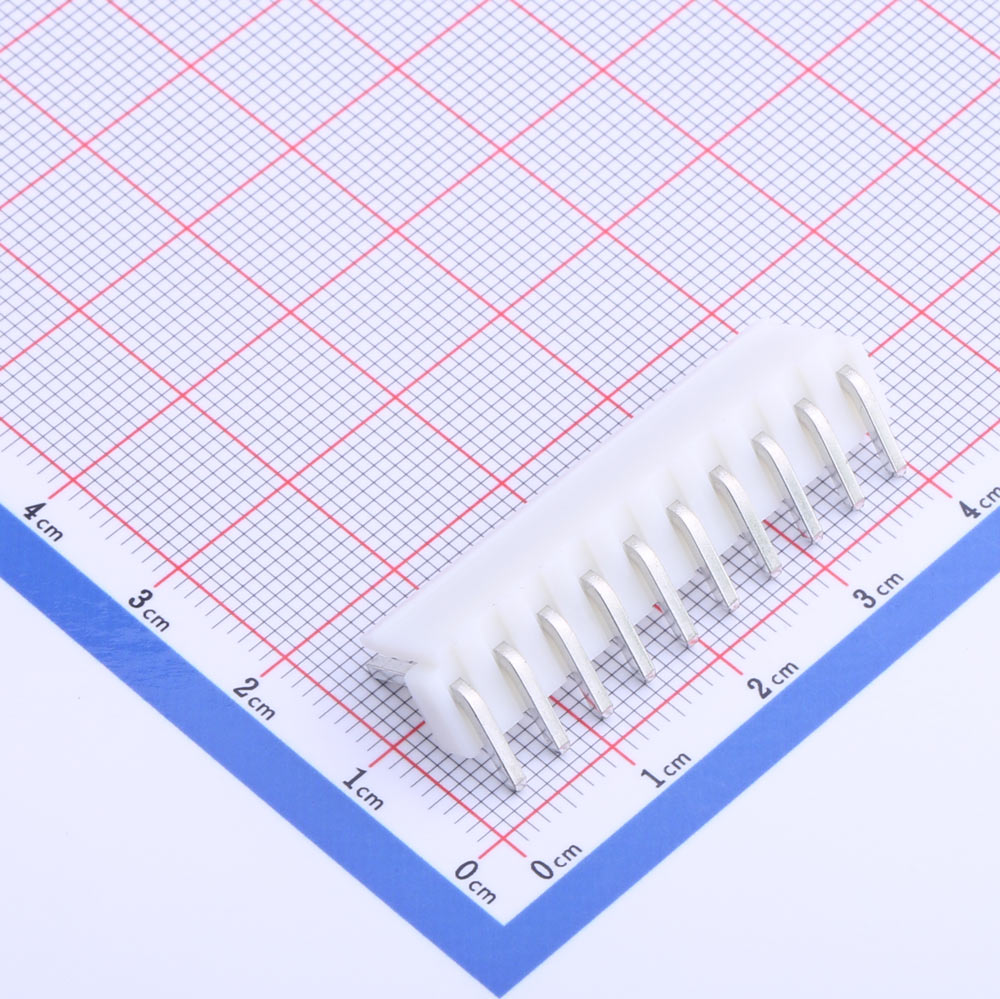

Wire to Board Connector, VH connector, 3.96mm Pitch, 1x10P, KH-VH-10P-W
Product Features● Push-pull package, 3.96mm pitch● 1x10P, single row● Right-angle mounting type● VH
Current Rating: 7A AC/DC
Voltage Rating: 250V AC/DC
Temperature Range: -25℃ to +85℃
Contact Resistance: 20mΩ Max
Insulation Resistance: 1000MΩ Min
Product Features
● Push-pull package, 3.96mm pitch
● 1x10P, single row
● Right-angle mounting type
● VH series connector
● 7A current rating, 250V AC/DC voltage
● Operating temperature: -25℃ to +85℃
Product Benefits
● Secure push-pull locking mechanism
● Saves PCB space with right-angle design
● Easy and fast installation
● Supports stable high current and voltage
● Reliable contact ensures system stability
● Cost-effective and durable
Product Applications
● Power connection in smart home devices
● Control boards in industrial machines
● Signal wiring in LED lighting systems
● Interfaces in communication devices
● Internal wiring for automation equipment
Name
Title
Description
Datasheet
Support
Support
If you need design/technical support, please let us know and fill inResponse FormWe will get back to you as soon as possible.
Longevity
The Longevity Program is aimed to provide our customers information from time to time about the expected time that our products can be ordered. The NLP is reviewed and updated regularly by our executive Management Team. View ourlongevity programhere.
