Show 3D Model

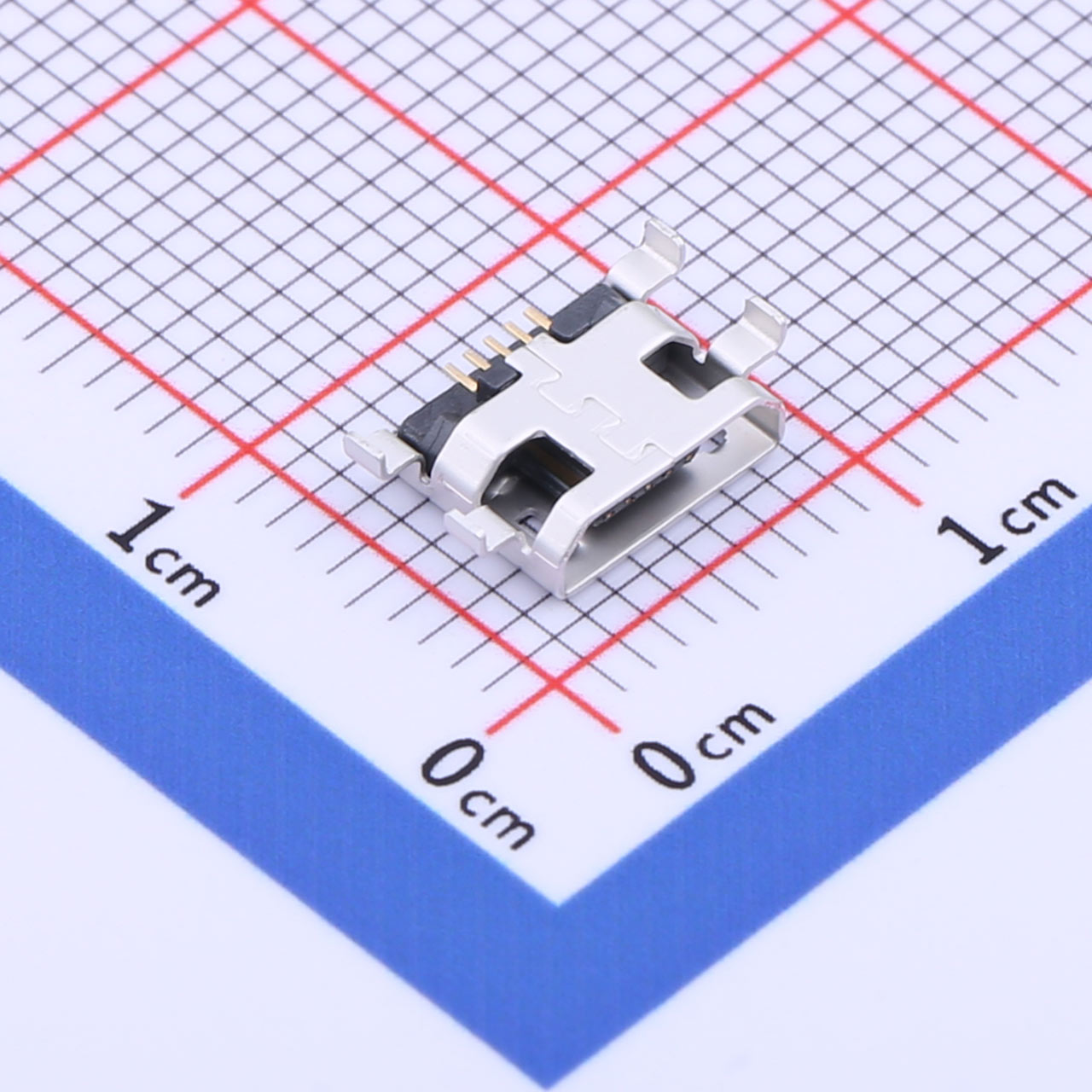

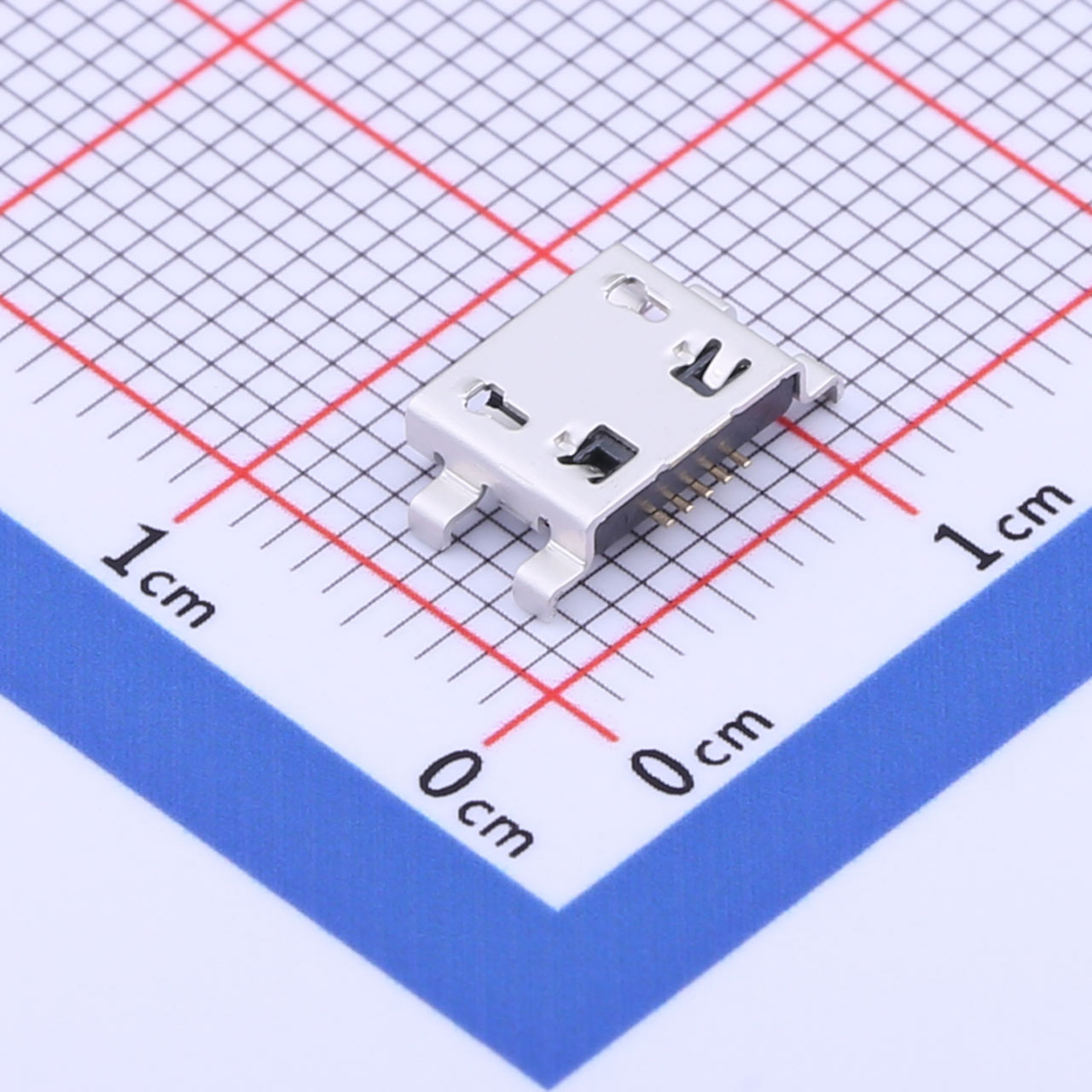

RoHS Compliant USB Micro-B Connectors | Fast Shipping & Free Samples from Manufacturer

Explore our range of USB Micro-B connectors, all RoHS compliant and designed for seamless integration in your projects. We provide fast shipping, free samples, and top-notch customer service to meet all your connectivity needs.

Current Rating: 1.8A/contact terminal

Voltage Rating: 30V DC

Contact Resistance: 50 milliohms MAX

Dielectnic Withstanding Voitage: 300 V AC AT Sea Levol

Insulation Resistance: 100MEGA ohms MIN

Download Datasheet Online Consultation

Product Details Product Documents Technical Support

Product Features

● Supports USB 2.0 and higher standards for fast data transfer and stable power supply

● 0.8mm pin pitch design saves PCB space and allows compact layouts

● SMD (Surface Mount Device) installation for strong, reliable connections

● High-quality materials ensure durability and excellent electrical performance

● 5-pin configuration (D+, D-, Vcc, GND) for data and power connections

Product Benefits

● Space-saving design ideal for high-density applications

● Stable and reliable performance in various environments

● Fast data transfer speeds to meet modern device demands

● Easy integration into compact electronic devices

● Reduces risk of contact failure from vibration or frequent use

Product Application

● Ideal for compact electronic devices with USB connectivity

● Used in consumer electronics, wearables, and small form-factor devices

● Suitable for devices requiring reliable data and power connections

● Applied in industrial, automotive, and IoT products requiring USB interfaces
