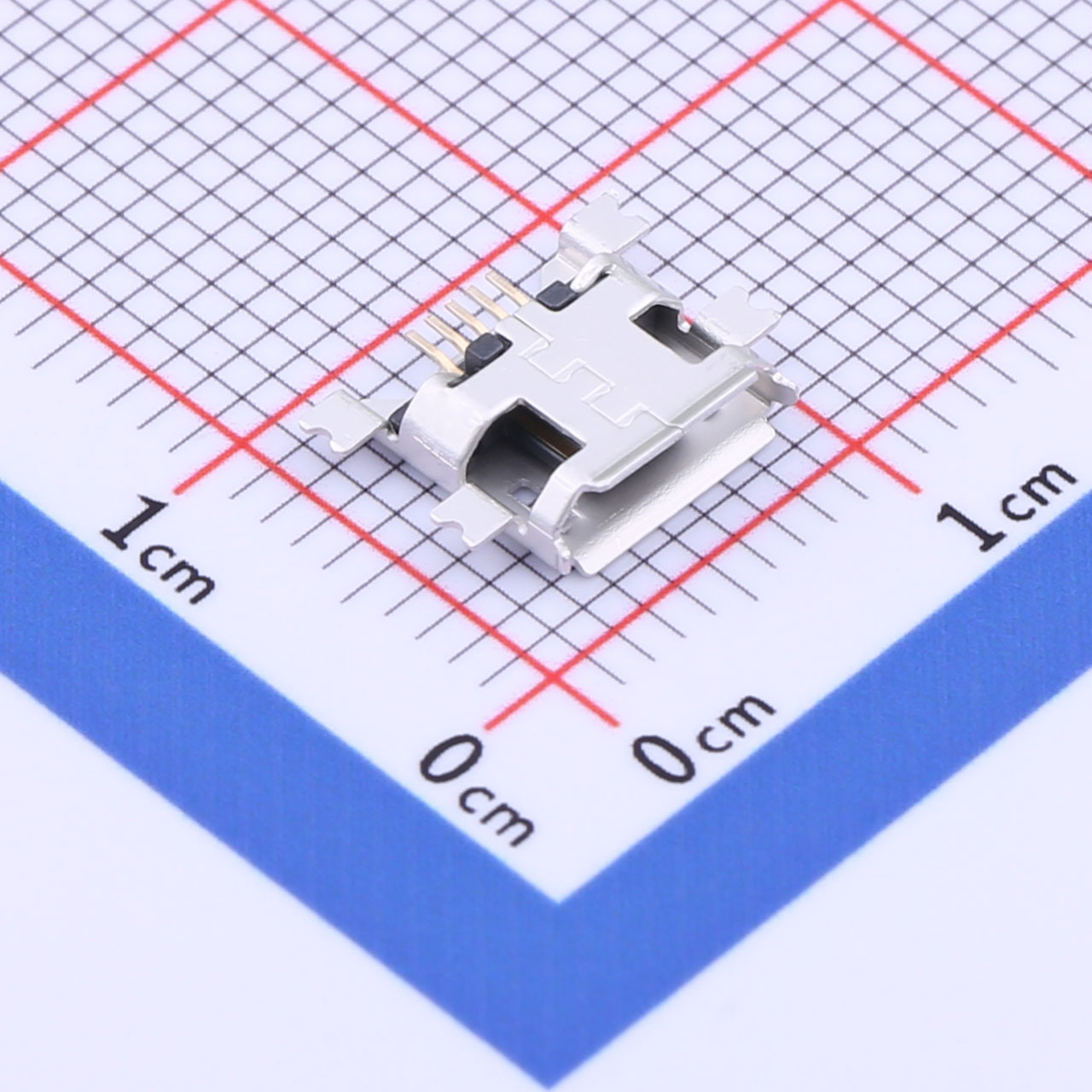

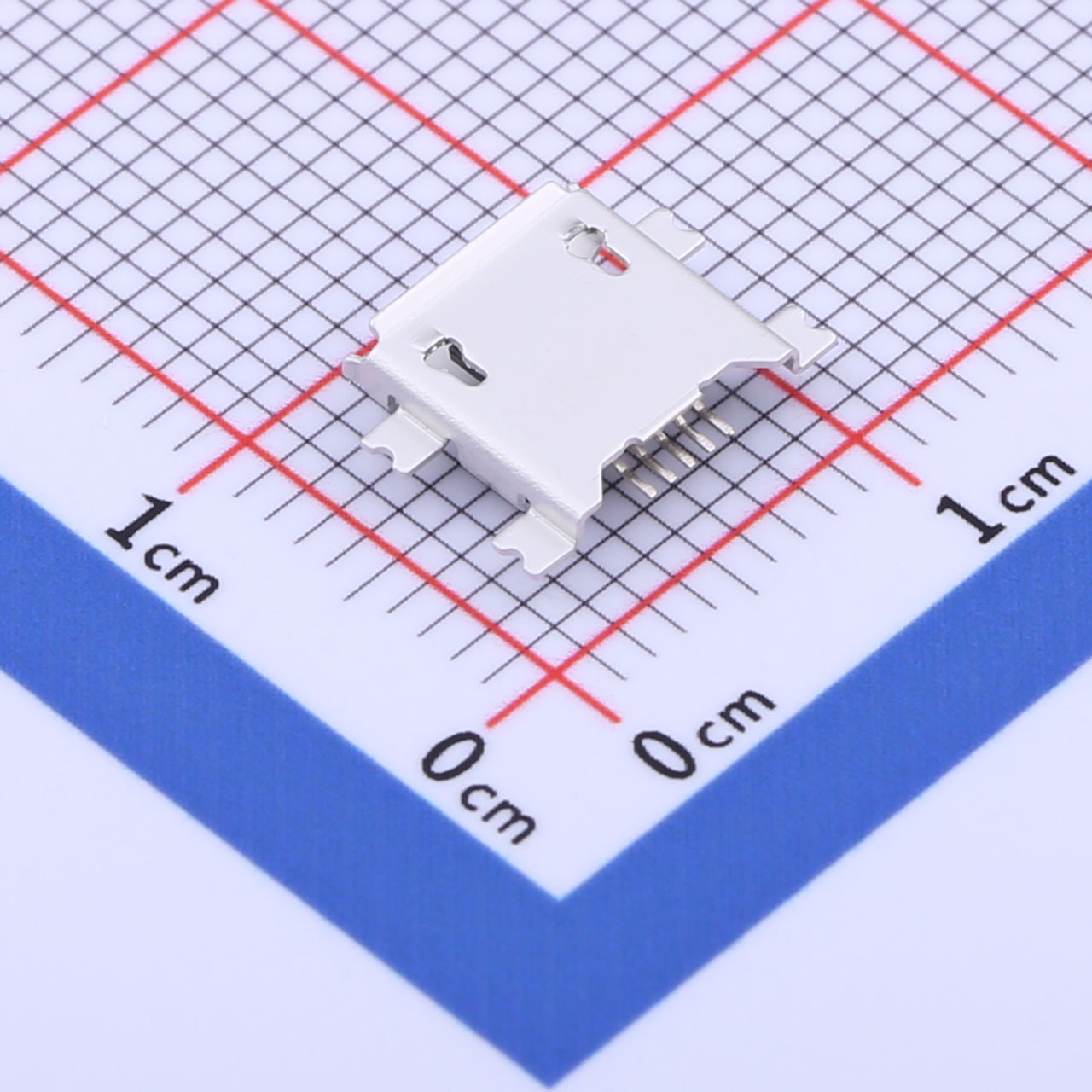

Home Product Categories Data Signal Connectors Data Signal Connectors USB Micro-B Connector

Show 3D Model

RoHS Compliant USB Micro-B Connectors | Fast Shipping & Free Samples from Manufacturer

Explore our range of USB Micro-B connectors, all RoHS compliant and designed for seamless integration in your projects. We provide fast shipping, free samples, and top-notch customer service to meet all your connectivity needs.

Current Rating: 1.8A/contact terminal

Voltage Rating: 30V DC

Contact Resistance: 50 milliohms MAX

Dielectnic Withstanding Voitage: 300 V AC AT Sea Levol

Insulation Resistance: 100MEGA ohms MIN

Download Datasheet Online Consultation

Product Details Product Documents Technical Support

Product Features

● USB 2.0 high-speed data transfer

● 5 pins: 4 for data, 1 for power

● 1.8A current rating per pin

● SMD package for automated assembly

● Board-mount, stable installation

● Wide operating temperature range

Product Benefits

● Stable and reliable data transfer

● Safe with overcurrent and short-circuit protection

● Easy installation with SMD design

● Compact and durable for long-term use

● Supports high-power devices

Product Applications

● Consumer electronics: smartphones, tablets, cameras

● Industrial automation: data and power connections

● Medical devices: charging and data transfer

● Automotive electronics: in-car charging and data transfer

Name

Title

Description

KH-MICRO1.17CB-5PJ.pdf

Datasheet
