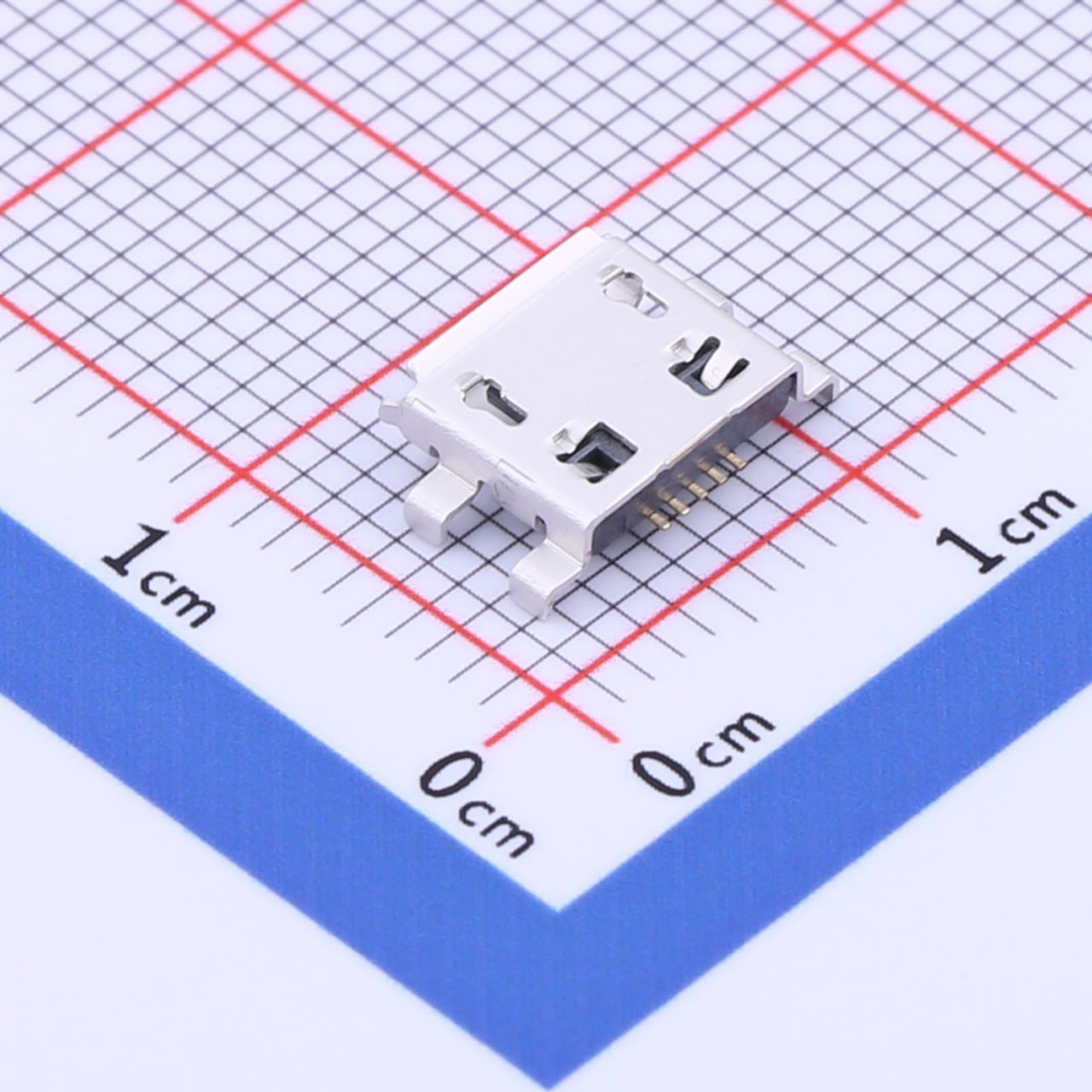

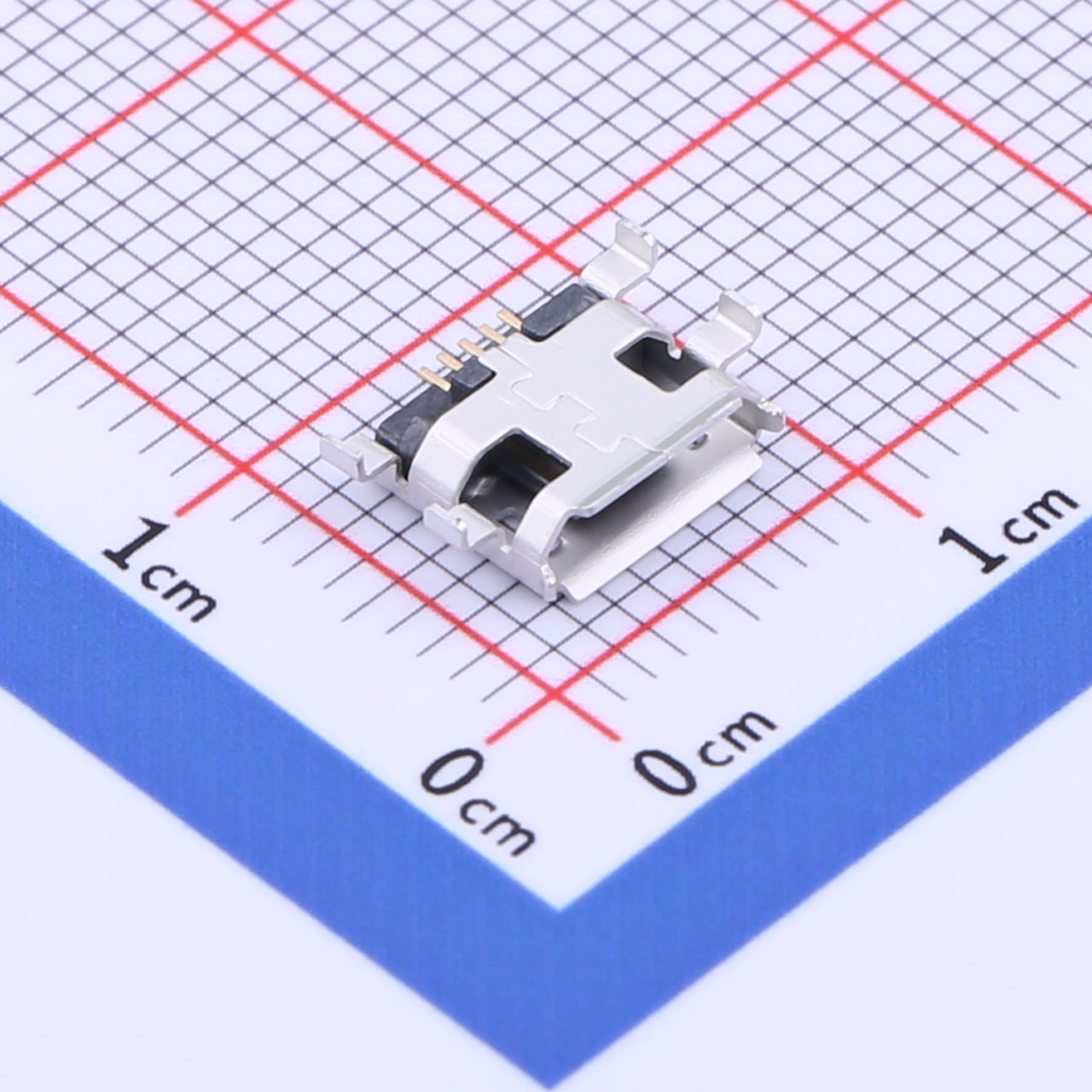

USB Micro-B Connectors Manufacturer | RoHS Compliant, Fast Shipping & Free Samples

Looking for reliable USB Micro-B connectors? Our RoHS compliant connectors KH-MICRO0.8CB-5PJ come with fast shipping and free samples. As a trusted manufacturer, we provide high-performance connectors for all your electronic projects.

Current Rating: 1.8A/contact terminal

Voltage Rating: 30V DC

Contact Resistance: 50 milliohms MAX

Dielectnic Withstanding Voitage: 300 V AC AT Sea Levol

Insulation Resistance: 100MEGA ohms MIN

Download Datasheet Online Consultation

Product Details Product Documents Technical Support

Product Features

● USB 2.0 or higher standard compatibility

● SMD (Surface Mount Device) design for compact installation

● 0.8mm pitch for space-saving PCB design

● 5-pin configuration (D+, D-, Vcc, GND, J)

● High-quality materials for durability and reliability

Product Benefits

● Saves PCB space, ideal for compact device designs

● Provides stable and reliable connections in various environments

● Supports high-speed data transmission for efficient performance

● Ensures a strong mechanical connection with the PCB

● Suitable for space-constrained applications

Product Applications

● Ideal for devices requiring Micro-B USB connections

● Suitable for high-density PCB layouts

● Used in portable electronics, chargers, and data transfer applications

● Perfect for compact or miniaturized electronic designs
