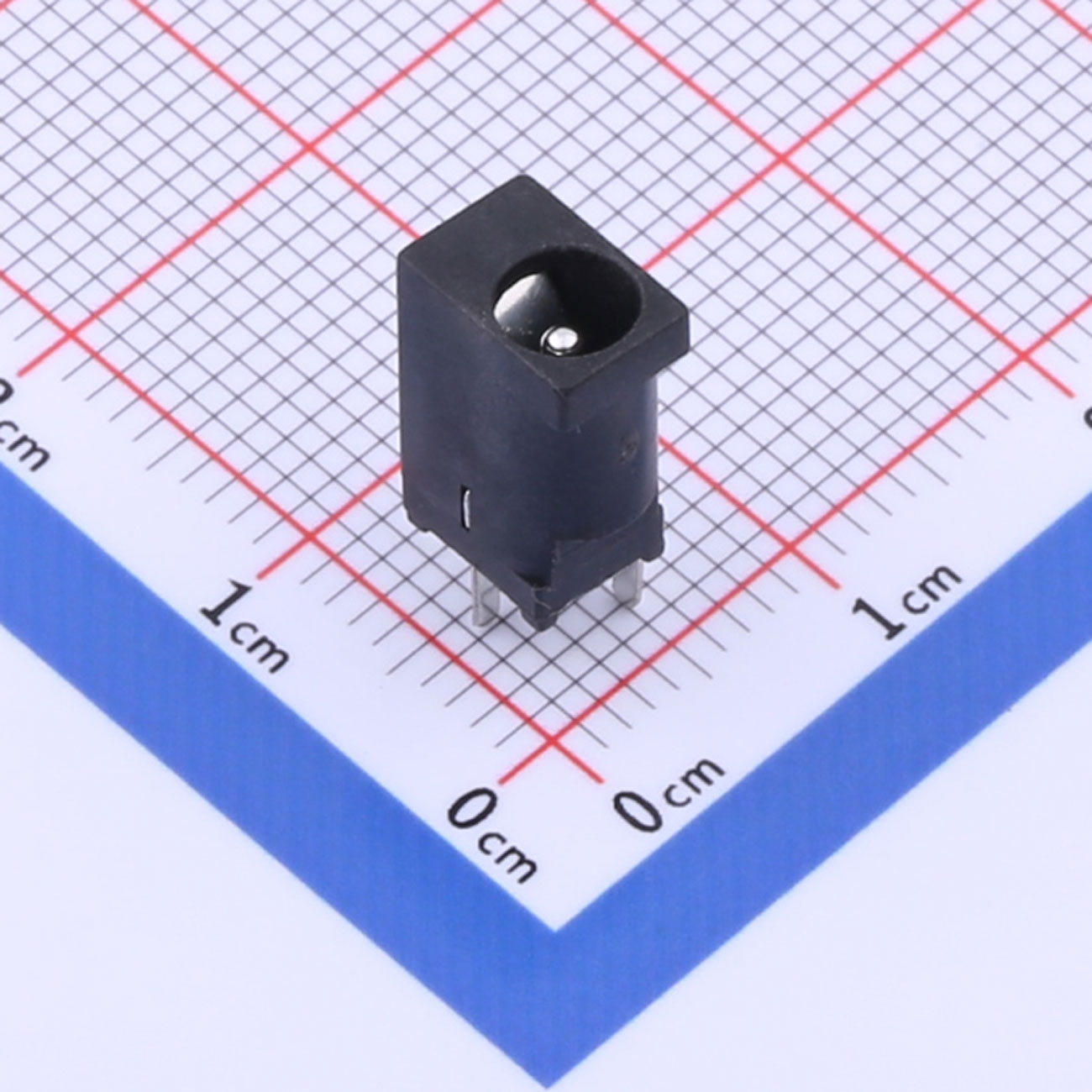

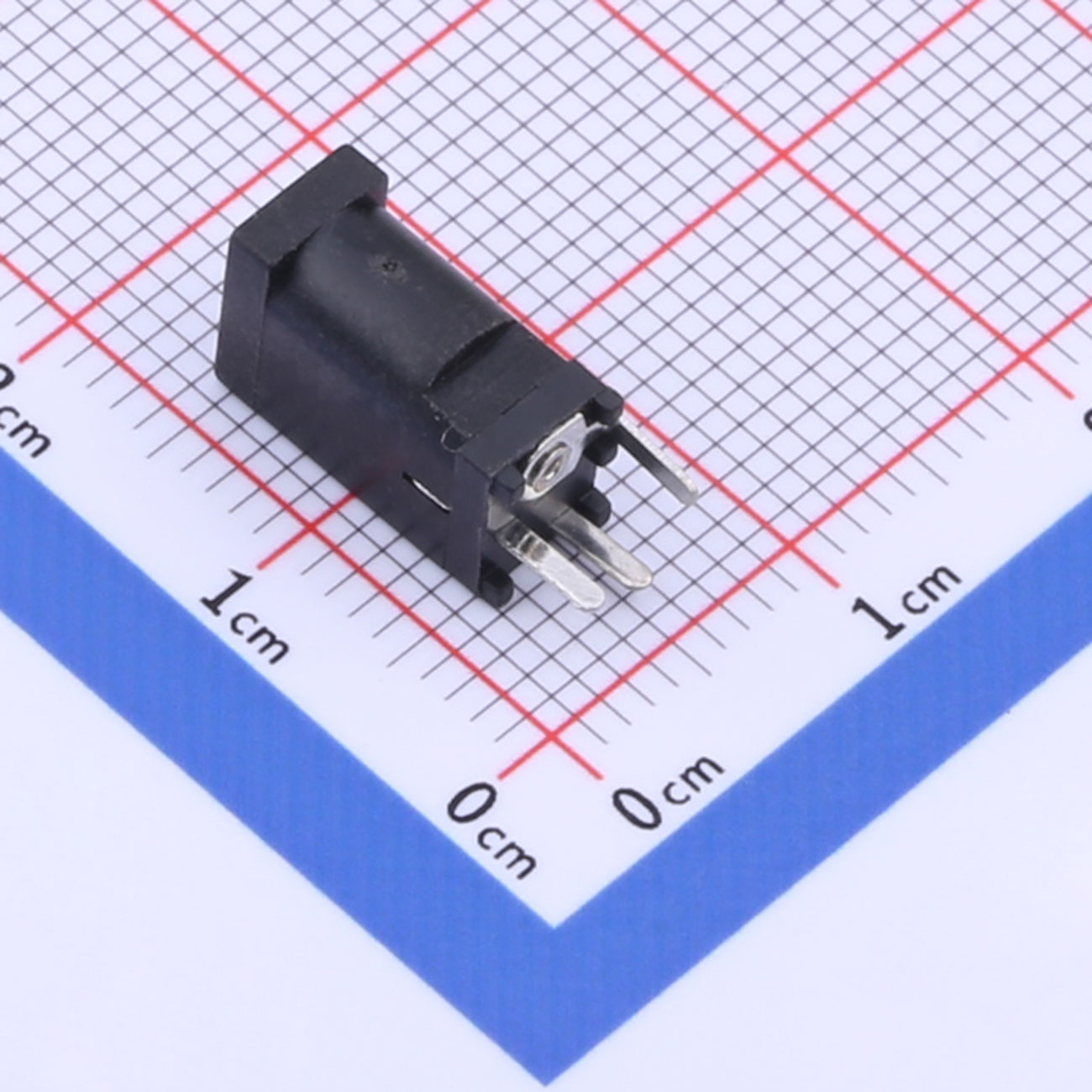

DC Power Socket, 4.2mm OD, 1A, 30V, KH-DC-002F-1.3
Product OverviewThe KH-DC-002F-1.3 is a reliable DC power socket with a 4.2mm outer diameter, rated
Rating: 1A, DC 30V
Contact Resistance: Max 30 mΩ
Insulation Resistance: Min 100 MΩ DC 500V
Dielectric Withstanding Voltage: AC 500V (50Hz) @ 0.5A for 1 minute
Durability (Life Test): ≥ 5000 cycles
Product Overview
The KH-DC-002F-1.3 is a reliable DC power socket with a 4.2mm outer diameter, rated for 1A at 30V. It offers excellent durability and performance, with low contact resistance and high insulation resistance, perfect for various low-power applications.
Key Features
● 4.2mm OD, rated for 1A at DC 30V
● Max contact resistance of 30 mΩ for efficient power transfer
● Insulation resistance ≥ 100 MΩ (DC 500V)
● Dielectric strength: AC 500V (50Hz) @ 0.5A for 1 minute
● Durability of ≥ 5000 cycles for long-lasting performance
● Compact and easy to integrate into various devices
Applications
● Low-power electronics and devices
● Power supply and distribution units
● Custom enclosures and embedded systems
● DIY projects and electronic repairs
● Educational kits and testing setups
Name
Title
Description
Datasheet
Support
Support
If you need design/technical support, please let us know and fill inResponse FormWe will get back to you as soon as possible.
Longevity
The Longevity Program is aimed to provide our customers information from time to time about the expected time that our products can be ordered. The NLP is reviewed and updated regularly by our executive Management Team. View ourlongevity programhere.
