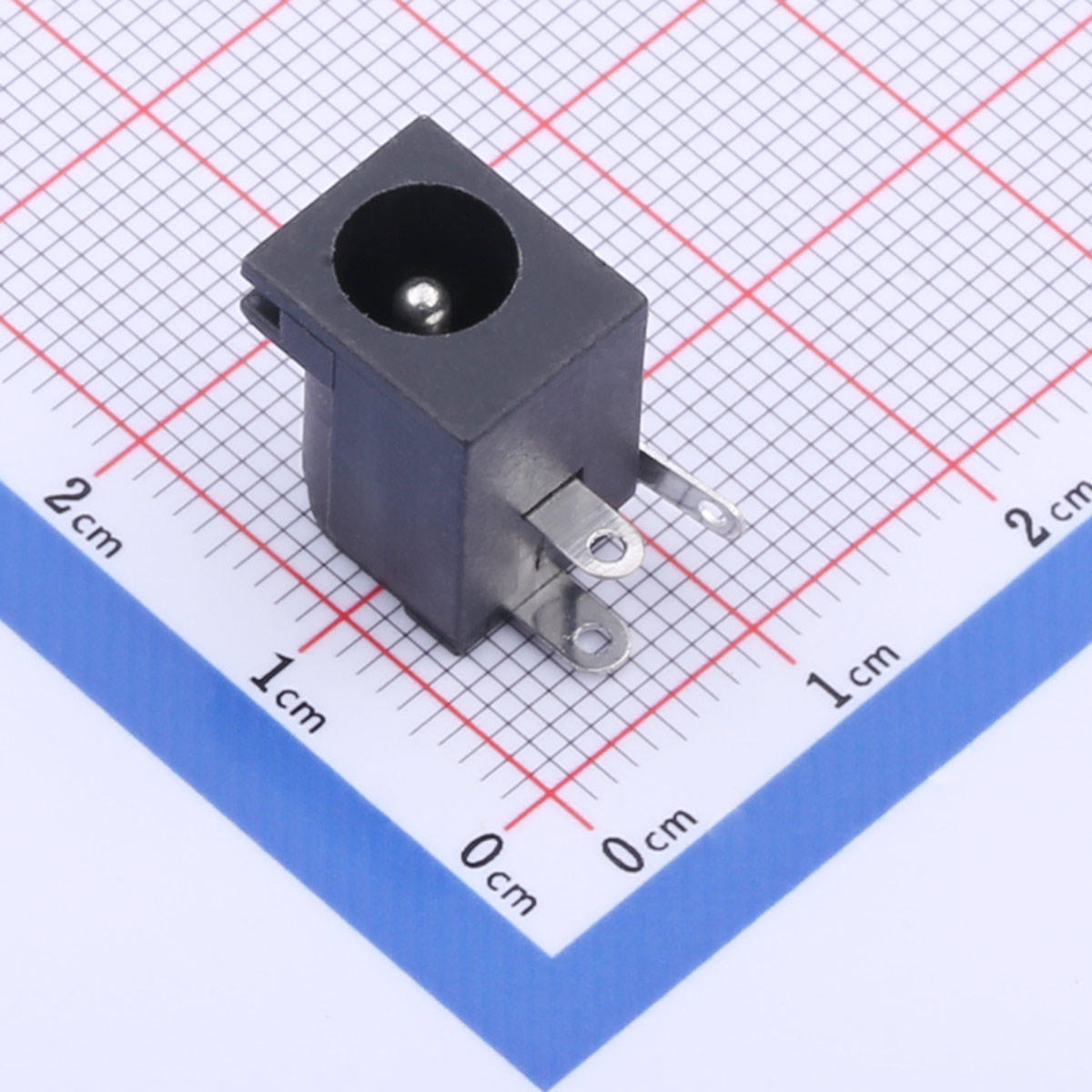

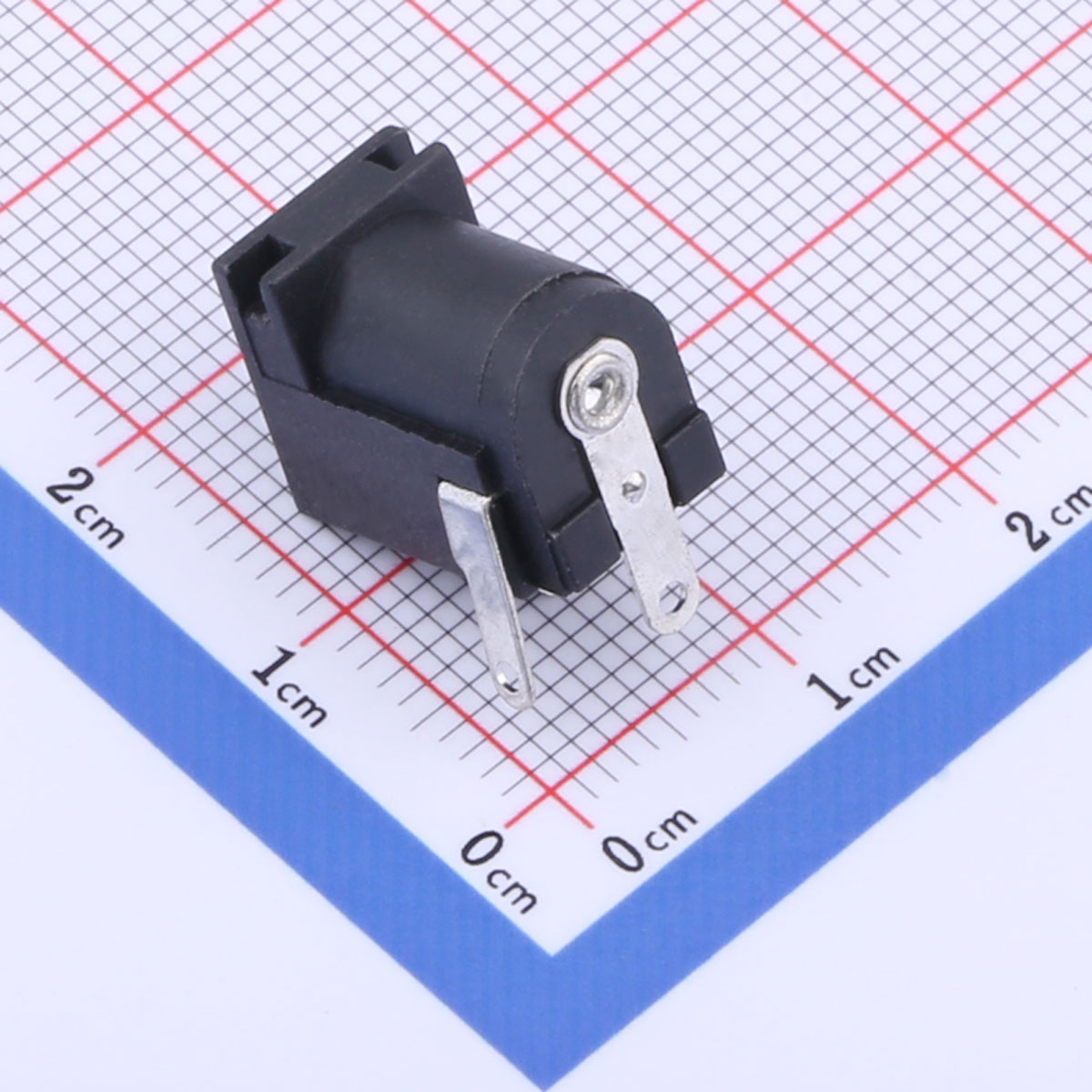

DC Power Socket, 2mm ID, 6.3mm OD, 500mA, 30V, KH-DC-005B-2.0
Product OverviewKH-DC-005B-2.0 is a compact DC power socket (2mm ID, 6.3mm OD), rated 500mA at 30V.
Operating Temperature: -30°C to +70°C
Rated Voltage/Current: DC 30V, 0.5A
Contact Resistance: ≤ 0.03 Ω
Insulation Resistance: ≥ 100 MΩ DC 250V
Dielectric Withstanding Voltage: AC 500V (50Hz, 1 minute)
Product Overview
KH-DC-005B-2.0 is a compact DC power socket (2mm ID, 6.3mm OD), rated 500mA at 30V. It offers low contact resistance and high insulation, ideal for low-power devices.
Key Features
● 2mm inner / 6.3mm outer diameter
● 500mA, 30V rating for low-power use
● Contact resistance ≤ 0.03 Ω
● Insulation resistance ≥ 100 MΩ (DC 250V)
● Withstands AC 500V (50Hz, 1 min)
● Compact and easy to install
Applications
● Small electronics and DIY projects
● Consumer device repair
● Embedded systems
● Custom enclosures
● Educational kits and testing setups
