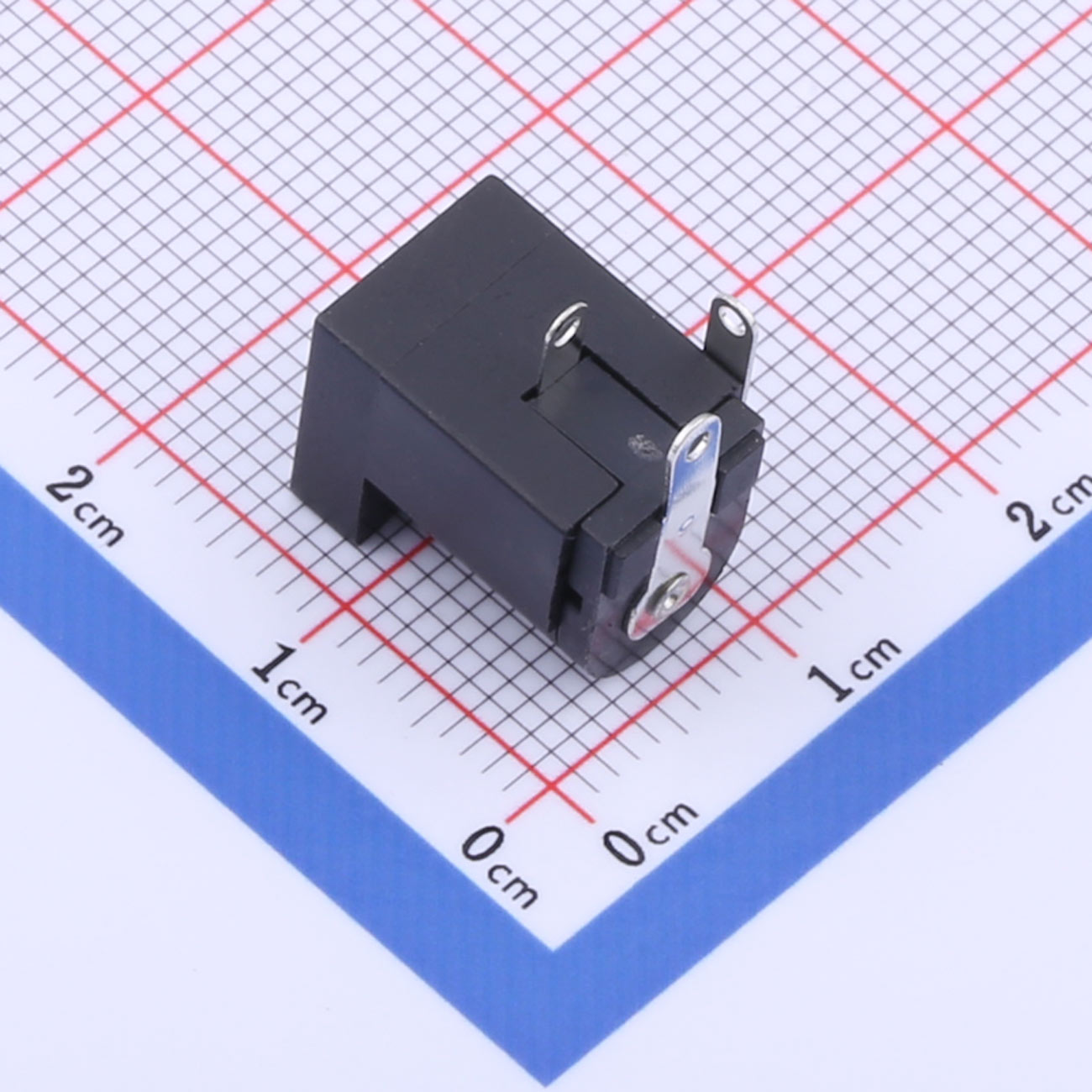

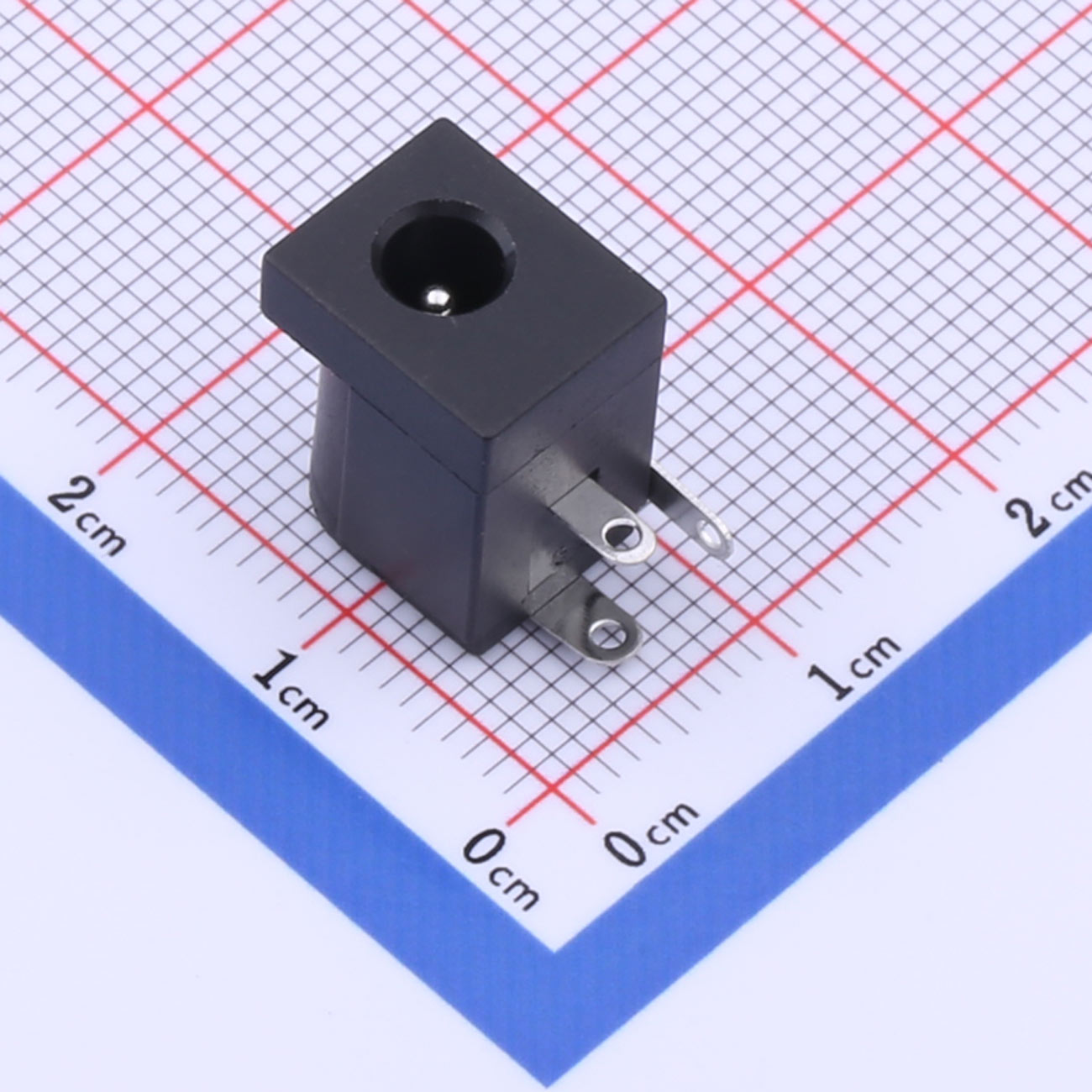

DC Power Socket, 1.3mm ID, 3.9mm OD, 500mA, 30V, KH-DC-005C-1.3
Product Description:Compact DC power socket with 1.3mm inner diameter and 3.9mm outer diameter, desi
Rating: DC 30V, 0.5A
Contact Resistance: 30mΩ Max
Insulation Resistance: 100MΩ (at DC 250V) Min
Withstand Voltage: 500VAC
insertion and Extraction Force: 3-20N
Life Test: 5000 cycles
Product Description:
Compact DC power socket with 1.3mm inner diameter and 3.9mm outer diameter, designed for reliable low-voltage power delivery. Rated at 500mA and 30V DC, with 3–20N insertion/extraction force and tested for 5000+ cycles. Ideal for compact and portable devices.
Product Benefits
● Compact design for space-limited applications
● Rated for 500mA current and 30V DC voltage
● 3–20N insertion and extraction force for stable connection
● Life-tested up to 5000 insertion/removal cycles
● Compatible with 1.3mm DC plugs for secure fit
Product Applications
● Portable electronic devices
● Miniature consumer electronics
● Battery-powered systems
● DIY and prototyping projects
● Smart home and IoT devices
Name
Title
Description
Datasheet
Support
Support
If you need design/technical support, please let us know and fill inResponse FormWe will get back to you as soon as possible.
Longevity
The Longevity Program is aimed to provide our customers information from time to time about the expected time that our products can be ordered. The NLP is reviewed and updated regularly by our executive Management Team. View ourlongevity programhere.
Related Products
DC Power Socket, 2mm ID, 6.3mm OD, 500mA, 30V, KH-DC-013-2.0BCu
品牌： kinghelm， Product： KH-DC-005C-1.3 Category： Connector Classification： DC Power Jack Type： DC Jack Mounting Style： Socket

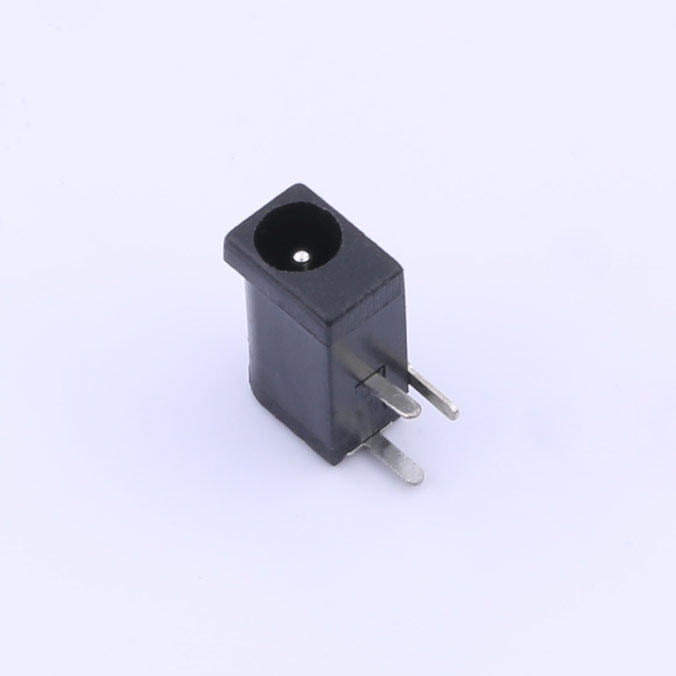

DC Power Socket, 1mm ID, 4.2mm OD, 500mA, KH-DC-002-1.0
品牌： kinghelm， Product： KH-DC-005C-1.3 Category： Connector Classification： DC Power Jack Type： DC Jack Mounting Style： Socket
DC Power Socket, 1.3mm ID, 4.2mm OD, KH-DC-002-1.3
品牌： kinghelm， Product： KH-DC-005C-1.3 Category： Connector Classification： DC Power Jack Type： DC Jack Mounting Style： Socket
DC Power Socket, 4.2mm OD, 1A, 30V, KH-DC-002F-1.3
品牌： kinghelm， Product： KH-DC-005C-1.3 Category： Connector Classification： DC Power Jack Type： DC Jack Mounting Style： Socket

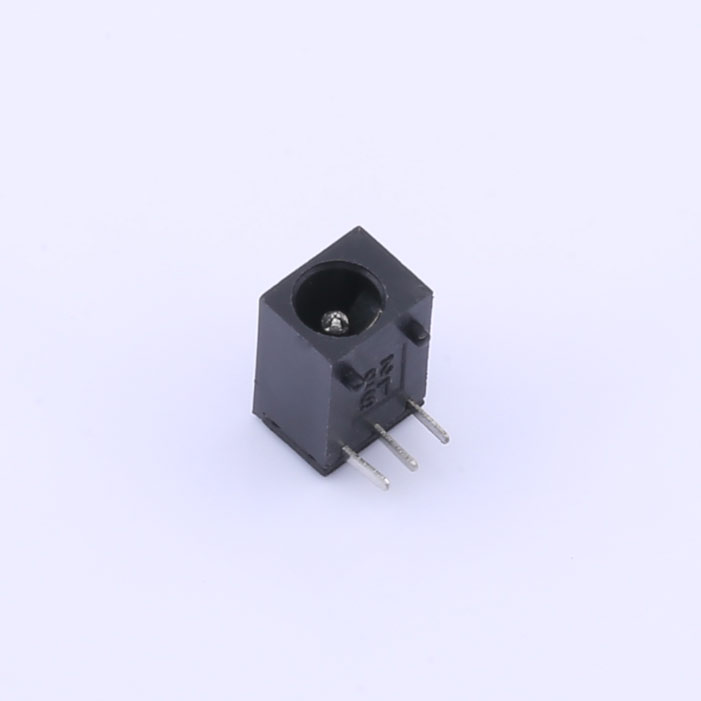

DC Power Socket, 1.3mm ID, 3.8mm OD, 500mA, 30V, KH-DC-003-1.3
品牌： kinghelm， Product： KH-DC-005C-1.3 Category： Connector Classification： DC Power Jack Type： DC Jack Mounting Style： Socket
DC Power Socket, 3.8mm OD, 500mA, 30V, KH-DC-003A-1.3
品牌： kinghelm， Product： KH-DC-005C-1.3 Category： Connector Classification： DC Power Jack Type： DC Jack Mounting Style： Socket
DC Power Socket, 6.4mm OD, 1A, 30V, KH-DC-005-2.5
品牌： kinghelm， Product： KH-DC-005C-1.3 Category： Connector Classification： DC Power Jack Type： DC Jack Mounting Style： Socket
DC Power Socket, 2mm ID, 6.3mm OD, 500mA, 30V, KH-DC-005B-2.0
品牌： kinghelm， Product： KH-DC-005C-1.3 Category： Connector Classification： DC Power Jack Type： DC Jack Mounting Style： Socket

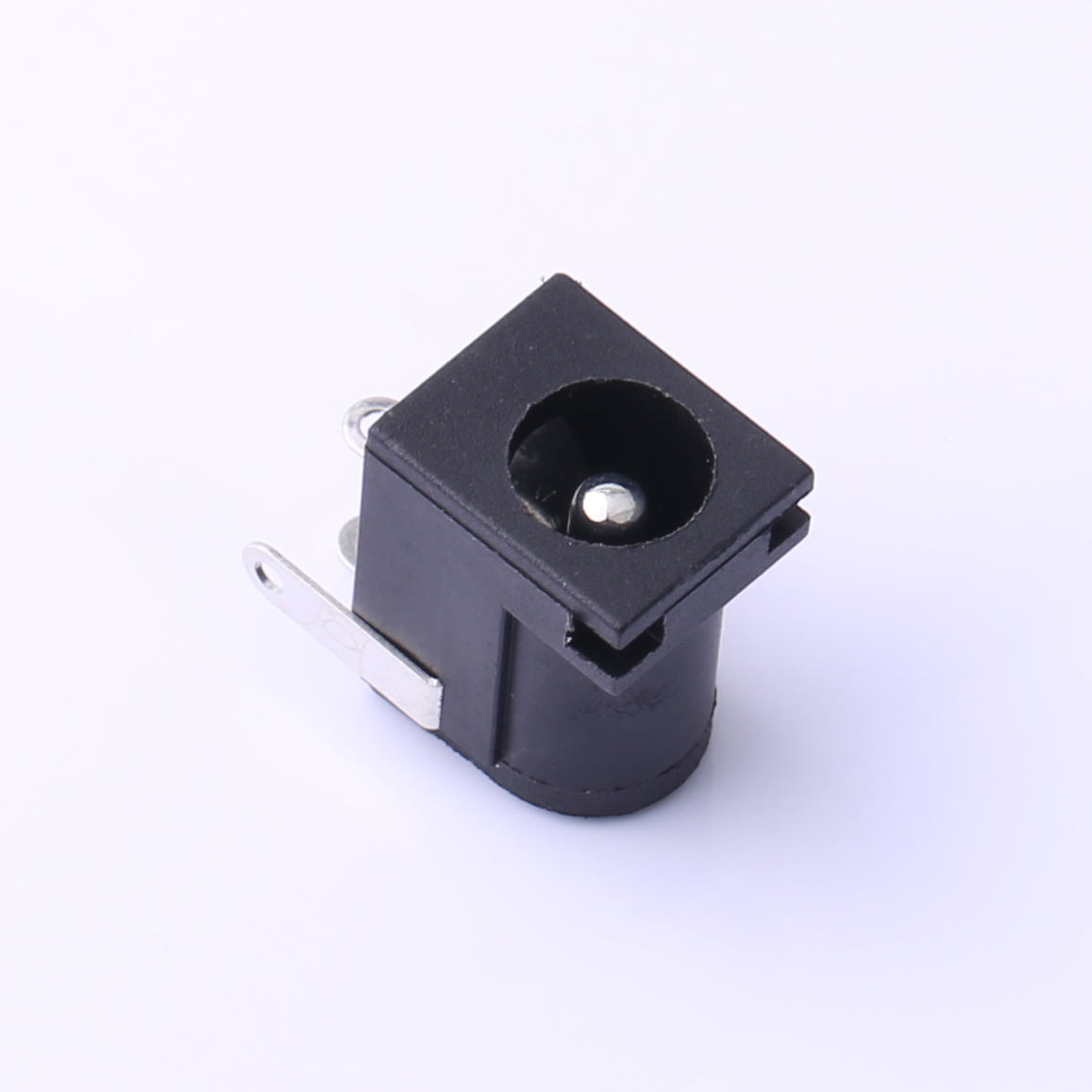

DC Power Socket, 2.5mm ID, 6.3mm OD, 500mA, 30V, KH-DC-005B-2.5
品牌： kinghelm， Product： KH-DC-005C-1.3 Category： Connector Classification： DC Power Jack Type： DC Jack Mounting Style： Socket

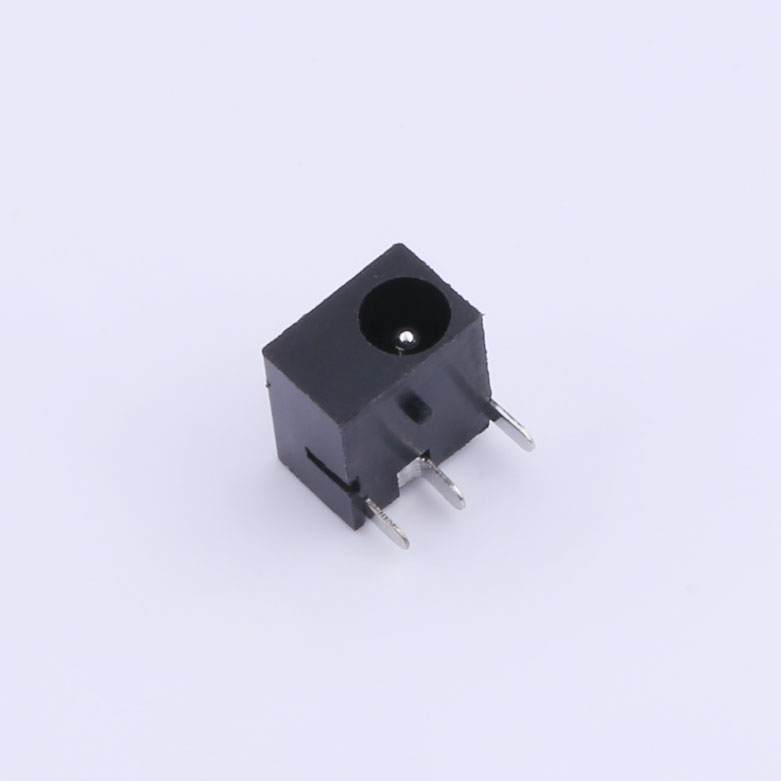

DC Power Socket, 1.3mm ID, 4mm OD, 500mA, 30V, KH-DC-006-1.3
