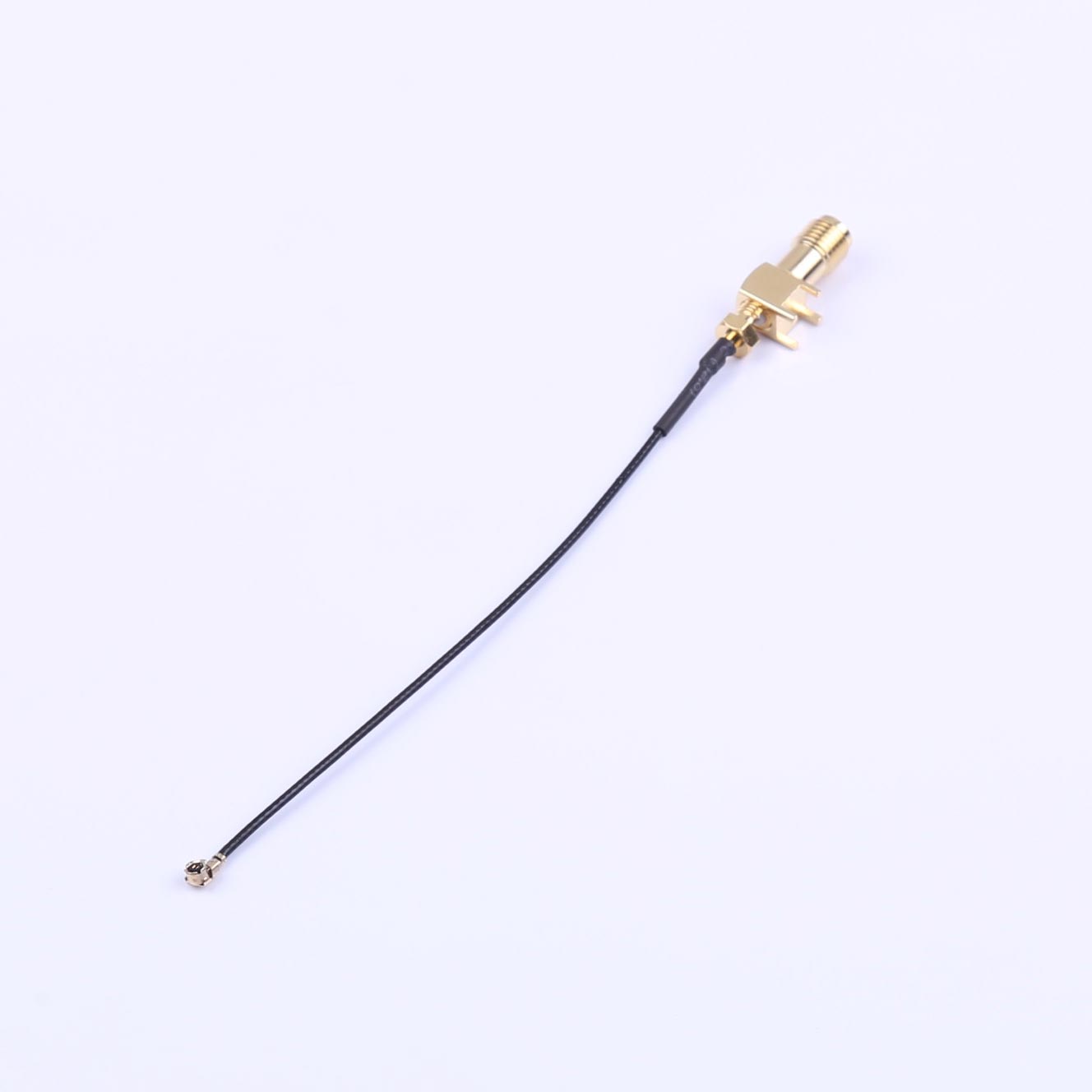

RF Cable Assemblies,IPEX to SMAKWE,RG1.13,100mm,KH-IPEX-SMAKWE

Frequency range: 0-3g

Input Impedance: 50 Ohms

VSWR: 1: 1.2

Cable: RF1.13-180 mm

Maximum Diameter: 13.6 mm

Minimum Diameter: 1.13 mm

Download Datasheet Online Consultation

Product Details Product Documents Technical Support

Product Description:

Frequency Range:

●Covers frequencies from 0 to 3 GHz, making it versatile for various communication applications.

Input Impedance:

●Maintains a consistent 50 ohm input impedance for efficient signal transmission.

VSWR (Voltage Standing Wave Ratio):

●Low VSWR of 1:1.2 ensures minimal signal reflection and high transmission efficiency.

Cable Type:

●Utilizes RF1.13-100mm cable known for its flexibility and durability.

●Max Diameter: 13.6mm

●Min Diameter: 1.13mm

Connector Type:

●Features IPEX to SMAKWE connectors for a reliable and secure connection interface.

Lightning Protection:

●Incorporates DC grounding for lightning protection, ensuring safety and longevity in outdoor or high-risk environments.
