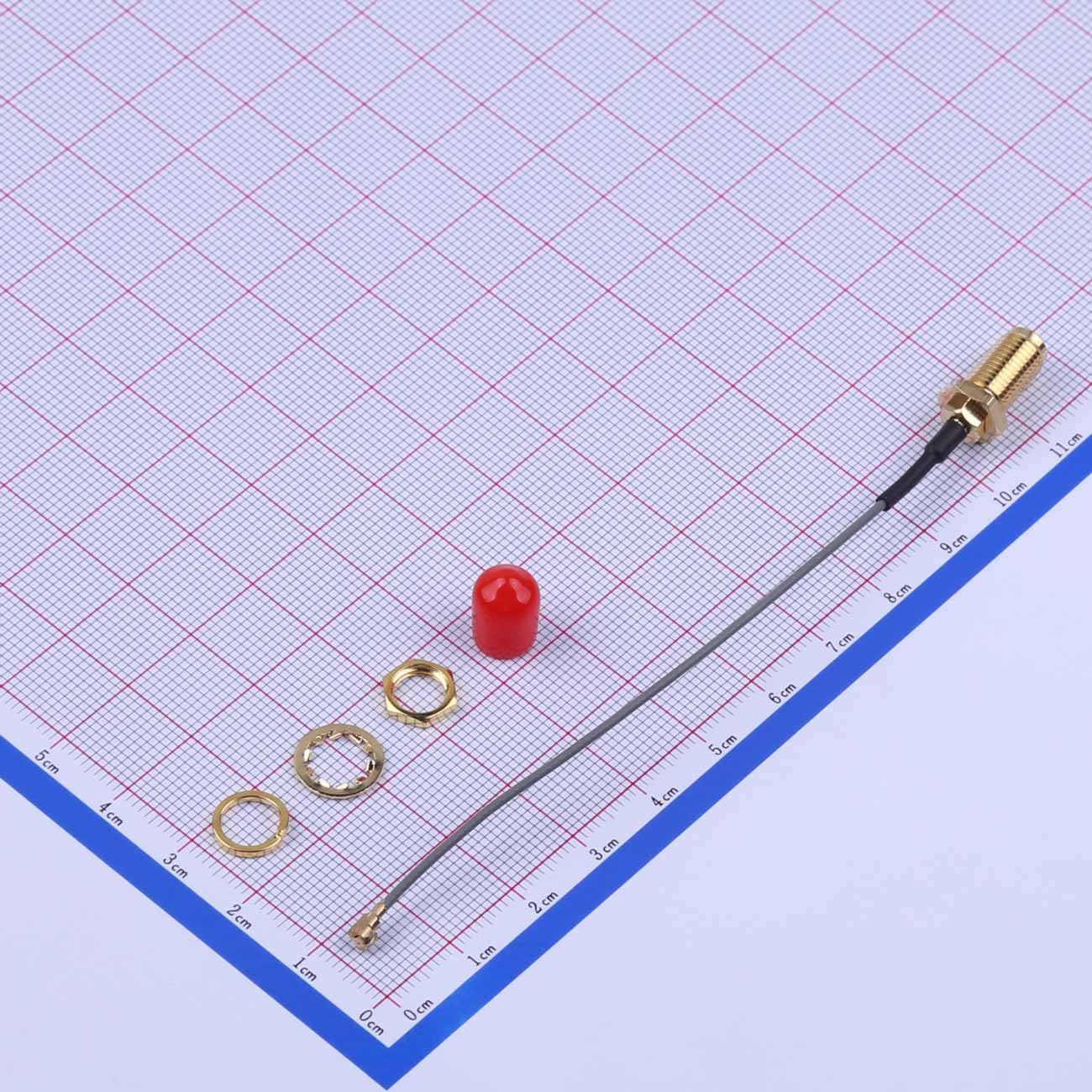

RF Cable Assemblies,IPEX to SMA,RF1.13,100mm,KHB(RG113)-100-29

Voltage Rating: DC 300V for 10 milliseconds

Conductance Resistance: Maximum of 3.0 ohms

Insulation Resistance: Minimum of 5.0 megaohms

Download Datasheet Online Consultation

Product Details Product Documents Technical Support

Product Description:

Electrical Specifications:

●Voltage Rating: DC 300V for 10 milliseconds.

●Conductance Resistance: Maximum of 3.0 ohms per meter.

●Insulation Resistance: Minimum of 5.0M ohms.

●Testing: Subjected to 100% electrical testing.

●Quality Assurance: Guaranteed to be free from open circuits, short circuits, miswiring, and intermittent failures.

Material Composition:

●Details: Refer to the accompanying table for specifics on the materials used in construction.

Mechanical Specifications:

●SMA Pull Force: Designed to withstand a pull force of 12.0 kilograms.

Compliance:

●RoHS Compliant: All components adhere to RoHS regulations for environmental sustainability.
