Kinghelm Coaxial Connector with 11 Gold-Plated Teeth and 1.37mm OD RF Cable IPEX to SMA KH-122-137SMA-60

English

Home Product Categories RF Connector & Cable Jumper Series RF Cable Assembly IPEX to SMA

Show 3D Model

Voltage rating: DCV 300V 10ms

Conductance resistance: 3.0 ohm/max

Insulation resistance: 5.0M ohm/min

Coaxial Cable: RF 1.37 Black Wire, OD: 1.37mm

Download Datasheet Online Consultation

Product Details Product Documents Technical Support

Product Description:

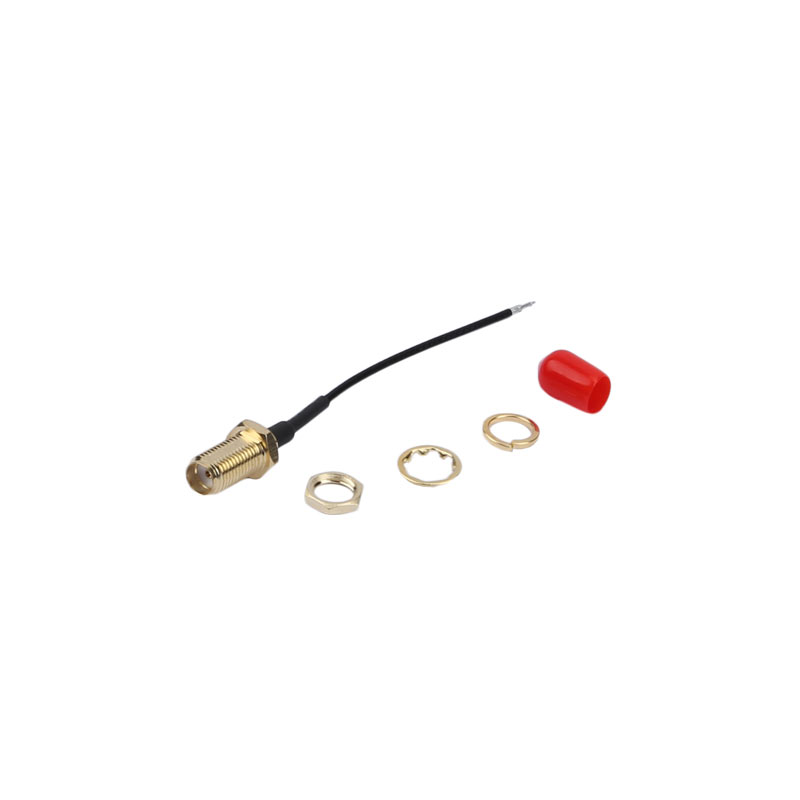

The Kinghelm Coaxial Connector with 11 Gold-Plated Teeth and 1.37mm OD RF Cable IPEX to SMA KH-122-137SMA-60 is a high-quality connector designed for use in various applications. It features a black heat shrink tubing with 2.0mm OD joint, a separable SMA female pin connector with 11 gold-plated teeth, and a 1.37mm OD RF cable. This product is RoHS compliant and has been 100% electrically tested to ensure no open/short, miswiring, or intermittent failures.

Product Features:

--Black heat shrink tubing with 2.0mm OD joint

--Separable SMA female pin connector with 11 gold-plated teeth

--1.37mm OD RF cable

--RoHS compliant

--100% electrically tested

Product Specifications:

Voltage Rating	DCV 300V 10MS
Conductance Resistance	3.0 OHM/MAX
Insulation Resistance	5.0M OHM/MIN

Application Fields:
The Kinghelm Coaxial Connector with 11 Gold-Plated Teeth and 1.37mm OD RF Cable IPEX to SMA KH-122-137SMA-60 is suitable for use in various applications, including telecommunications, broadcasting, and wireless communication systems.

Brand Certificate:
Kinghelm is a trusted brand in the industry, known for producing high-quality connectors and cables that meet or exceed industry standards.

Product Packaging:
This product is packaged in a secure and durable packaging to ensure safe delivery to the customer.
