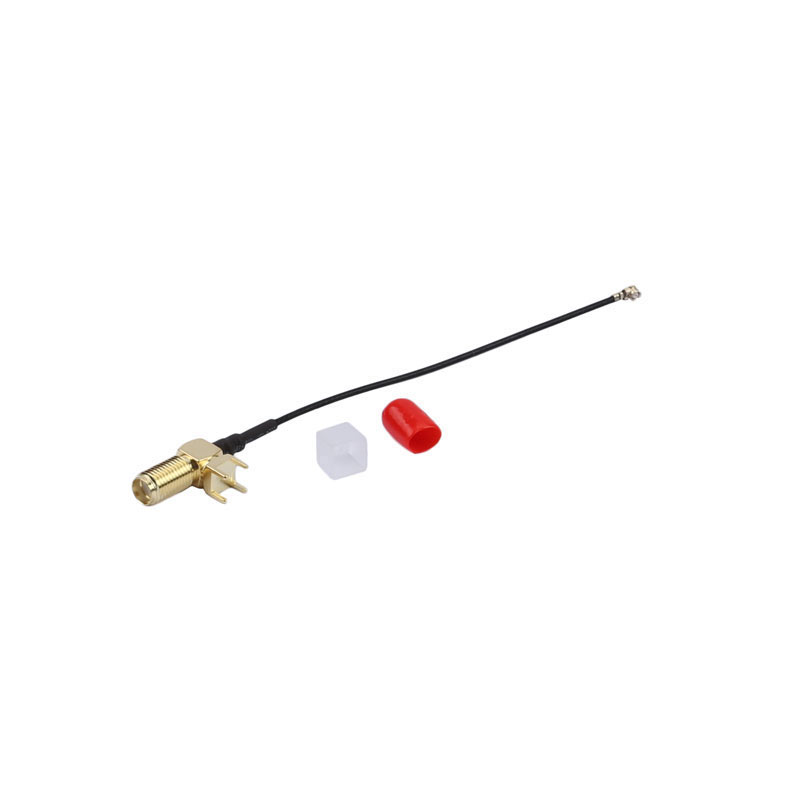

Kinghelm Connector Cable Adapter Set (3-Piece) - KH-IPEX-SMAKWE-RG137-Q120MM

Kinghelm's brand products KH series include Beidou GPS antenna, RF connector, electrical data signal connector, terminal, plug-in unit and the three categories: customized automobile and motorcycle wiring harness, industrial medical connector as well as special antenna connector. Kinghelm begins with providing Beidou GPS dual-mode antenna, IPEX terminal and RF connector , and its product categories have expanded a lot, such as series antennas for WiFi, Bluetooth, NB-IoT, LORA, Zigbee, UWB and GSM communication antennas, RFID tag, RF patch cords, GJB RF connectors, microwave antennas, auto SMA and SMB, FAKRA RF connectors, and coaxial cables.

Voltage Rating: DCV 300V 10MS

Conductance Resistance: 3.0 ohm/max.

Insulation Resistance: 5.0M ohm/min.

Coaxial Cable: RF1.37 Black Wire, OD1.37mm

Download Datasheet Online Consultation

Product Details Product Documents Technical Support

Product Overview:

Our KH-IPEX-SMAKWE-RG137-Q120MM Heat Shrink Tubing is a high-quality electrical component designed for various applications. It features a black color and is specifically designed for 2.0mm terminal connectors. With its high-quality construction and reliable performance, this heat shrink tubing is an ideal choice for electrical projects.

Product Features:

1. High-Quality Material

2. OD: 2.0mm Terminal Compatibility

3. Gold-Plated Connectors

4. SMA Female to Male Pin

5. RF1.37 Black Wire

Technical Specifications:

1. Electrical:

- Voltage Rating: DCV 300V 10MS

- Conductance Resistance: 3.0 ohmimax.

- Insulation Resistance: 5.0M ohm/min.

- 100% Electrical Test: The cable undergoes thorough electrical testing to ensure its reliability.

- No Open/Short, Miswiring, or Intermittent Failures: The cable is free from any such issues, ensuring consistent performance.

2. Material:

- RoHS Compliance: All components used in the construction of this heat shrink tubing are RoHS compliant.

Applications:

This heat shrink tubing is widely used in various electrical applications and is particularly suitable for projects requiring a reliable and secure connection for 2.0mm terminal connectors. It is commonly utilized in electronics manufacturing, telecommunications, automotive, and other industries where high-quality electrical components are required.
