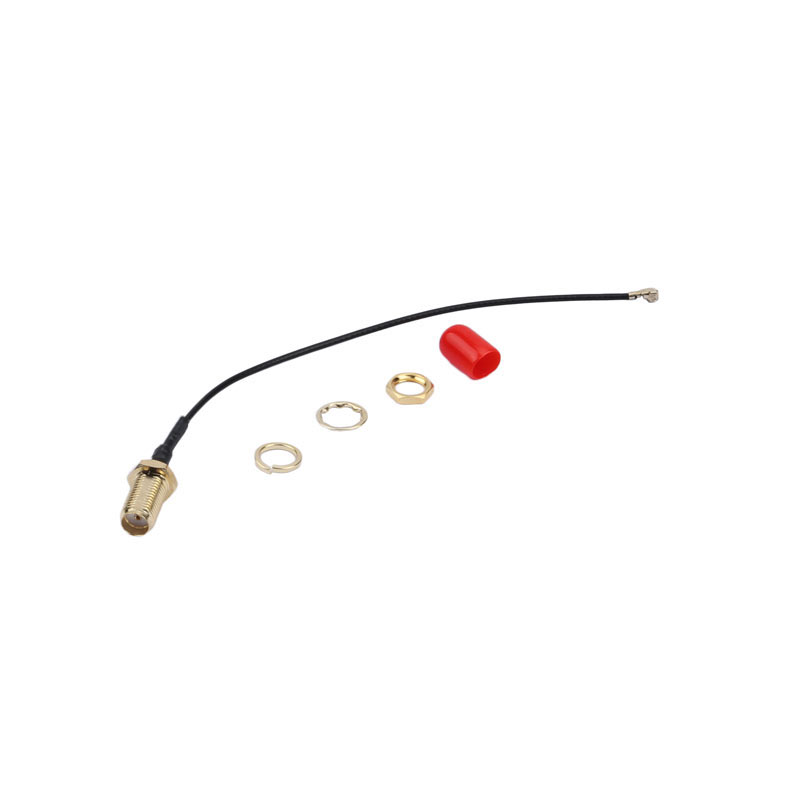

Kinghelm Connector Adapter Set (5 pieces) - KH-IPEX-SMA-RG137-100MM

Kinghelm's brand products KH series include Beidou GPS antenna, RF connector, electrical data signal connector, terminal, plug-in unit and the three categories: customized automobile and motorcycle wiring harness, industrial medical connector as well as special antenna connector. Kinghelm begins with providing Beidou GPS dual-mode antenna, IPEX terminal and RF connector , and its product categories have expanded a lot, such as series antennas for WiFi, Bluetooth, NB-IoT, LORA, Zigbee, UWB and GSM communication antennas, RFID tag, RF patch cords, GJB RF connectors, microwave antennas, auto SMA and SMB, FAKRA RF connectors, and coaxial cables.

Voltage Rating: 300V DC (10 ms)

Contact Resistance: 3.0 Ω/Max

Insulation Resistance: 5.0 MΩ/Min

Coaxial Cable: RF 1.37 Black Wire, OD: 1.37mm

Download Datasheet Online Consultation

Product Details Product Documents Technical Support

Product Overview:

KH-IPEX-SMA-RG137-100MM is a high-quality cable connector kit suitable for various electronic devices and communication systems. It uses black heat shrink tubing and gold-plated connectors to provide reliable connection and excellent signal transmission performance. The product is well-designed, RoHS compliant, and suitable for various application fields.

Product Features:

--High-quality materials

--Black heat shrink tubing

--Gold-plated connectors

--1.37 terminals

--SMA female inner hole

--RF 1.37 black cable

Technical Specifications:

--Voltage rating: 300V DC, 10ms

--Conductance resistance: 3.0 ohms/m (maximum)

--Insulation resistance: 5.0 megaohms/minute (minimum)

--SMA pull force: 12.0 kg

--RoHS compliant

Application Fields:

--Wireless communication systems

--RF connections

--Electronic devices

--Communication equipment
