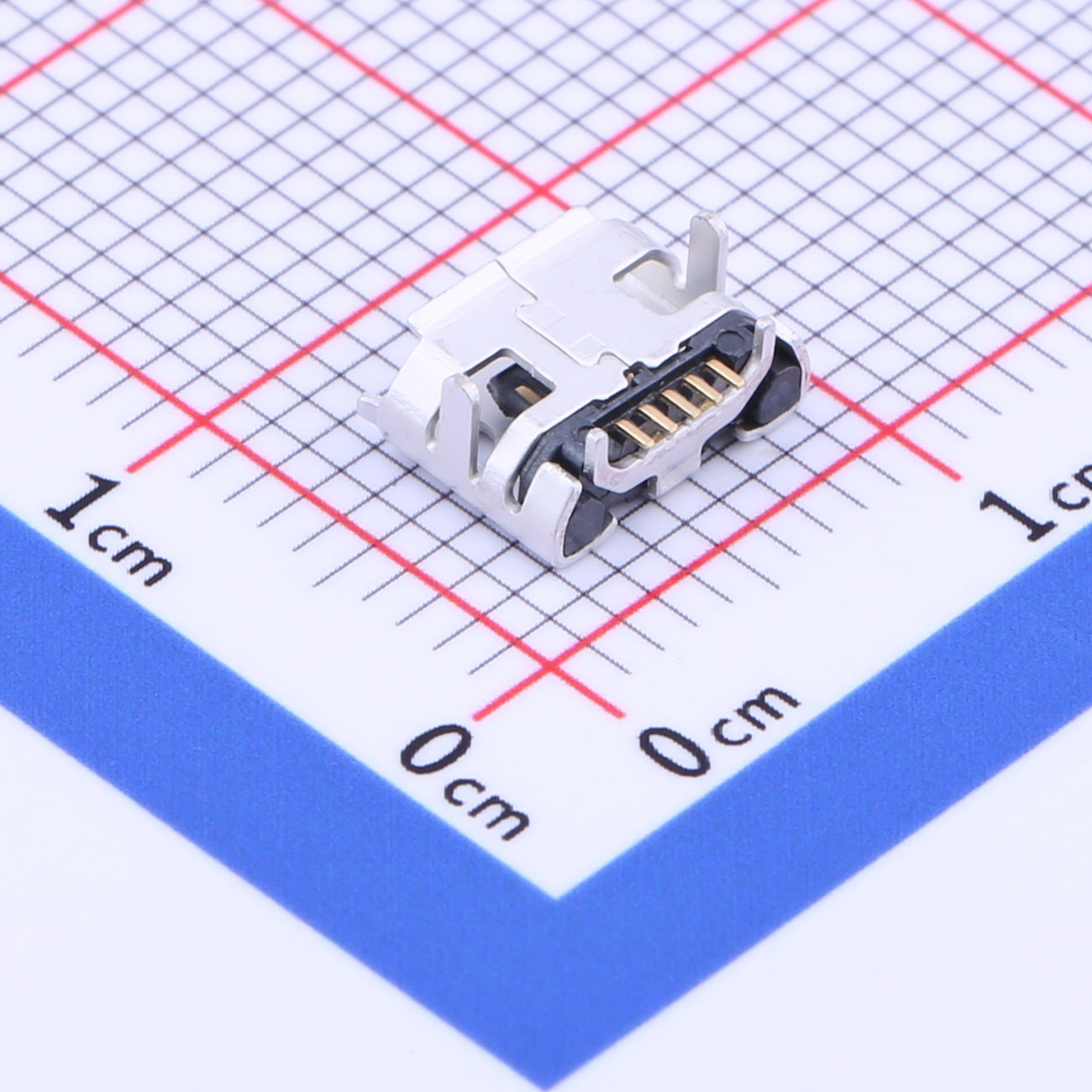

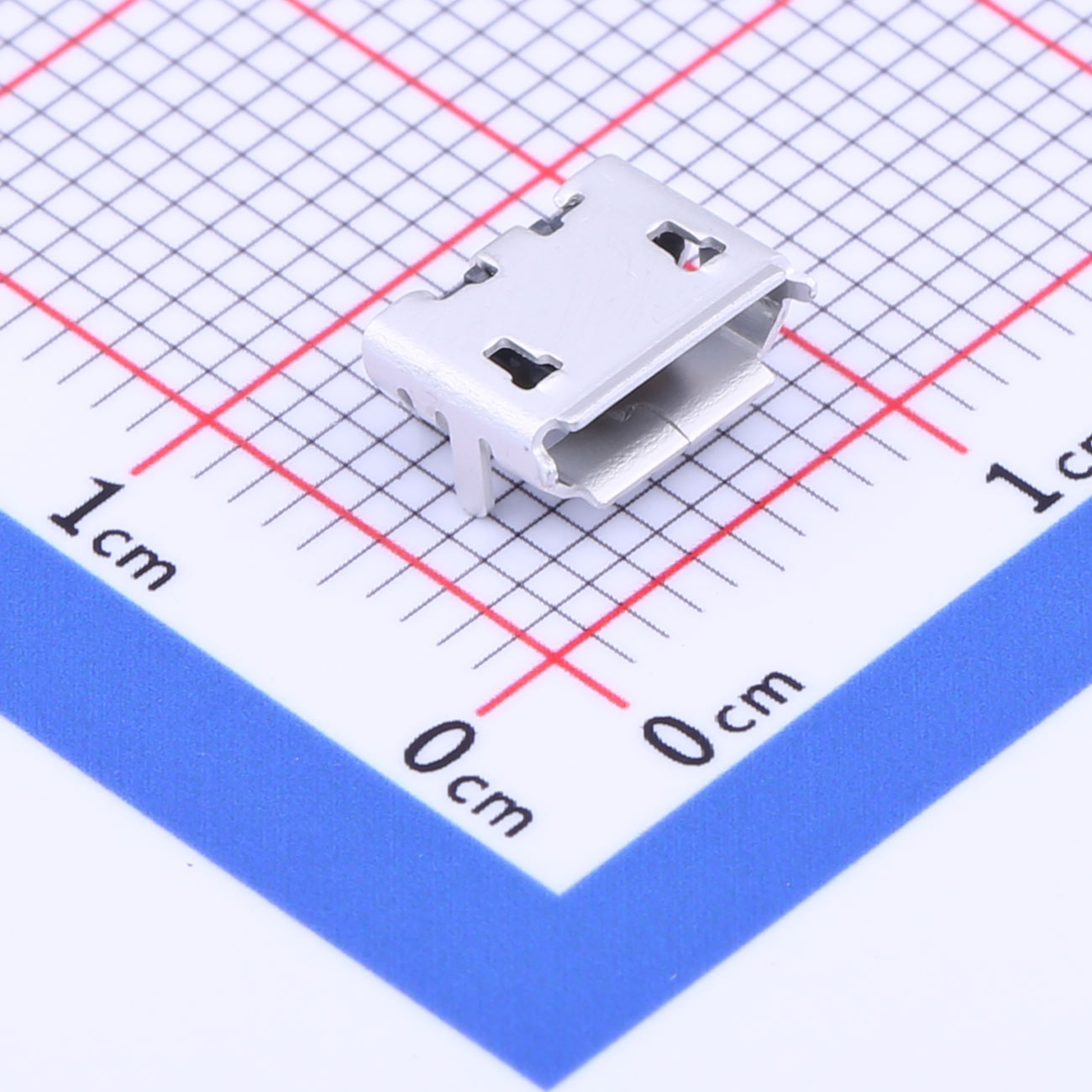

USB Micro-B Connectors Manufacturer | RoHS Compliant, Fast Shipping & Free Samples

Explore our range of USB Micro-B connectors, all RoHS compliant and designed for seamless integration in your projects. We provide fast shipping, free samples, and top-notch customer service to meet all your connectivity needs.

Contact Resistance : 30mΩ(Max)

Insulation lmpedance: 100megohm (Min)

Withstanding Voltage: 100V AC/min

Materials:Rubber Core: LCP

Download Datasheet Online Consultation

Product Details Product Documents Technical Support

Product Features

● Micro-B female USB connector with surface mount design

● Complies with USB 2.0 standard for high-speed data transfer

● Horizontal mount for space-saving installation

● Horned edge design enhances connection stability

● 5-pin contacts for reliable signal and power transmission

● Wide operating temperature range from -30℃ to +80℃

Product Benefits

● High reliability ensures stable and durable connections

● Easy installation simplifies the production process

● Versatile compatibility for various industrial and automotive needs

● Cost-effective solution for large-scale production

Product Application

● Used in industrial equipment for stable data and power connections

● Suitable for automotive applications like charging and data transfer

● Applied in medical devices for accurate and safe data transmission

● Ideal for consumer electronics like smartphones and tablets

Name

Title

Description

KH-MICRO5P-JN-1.pdf

Datasheet

Support

Support

If you need design/technical support, please let us know and fill inResponse FormWe will get back to you as soon as possible.

Longevity

The Longevity Program is aimed to provide our customers information from time to time about the expected time that our products can be ordered. The NLP is reviewed and updated regularly by our executive Management Team. View ourlongevity programhere.
