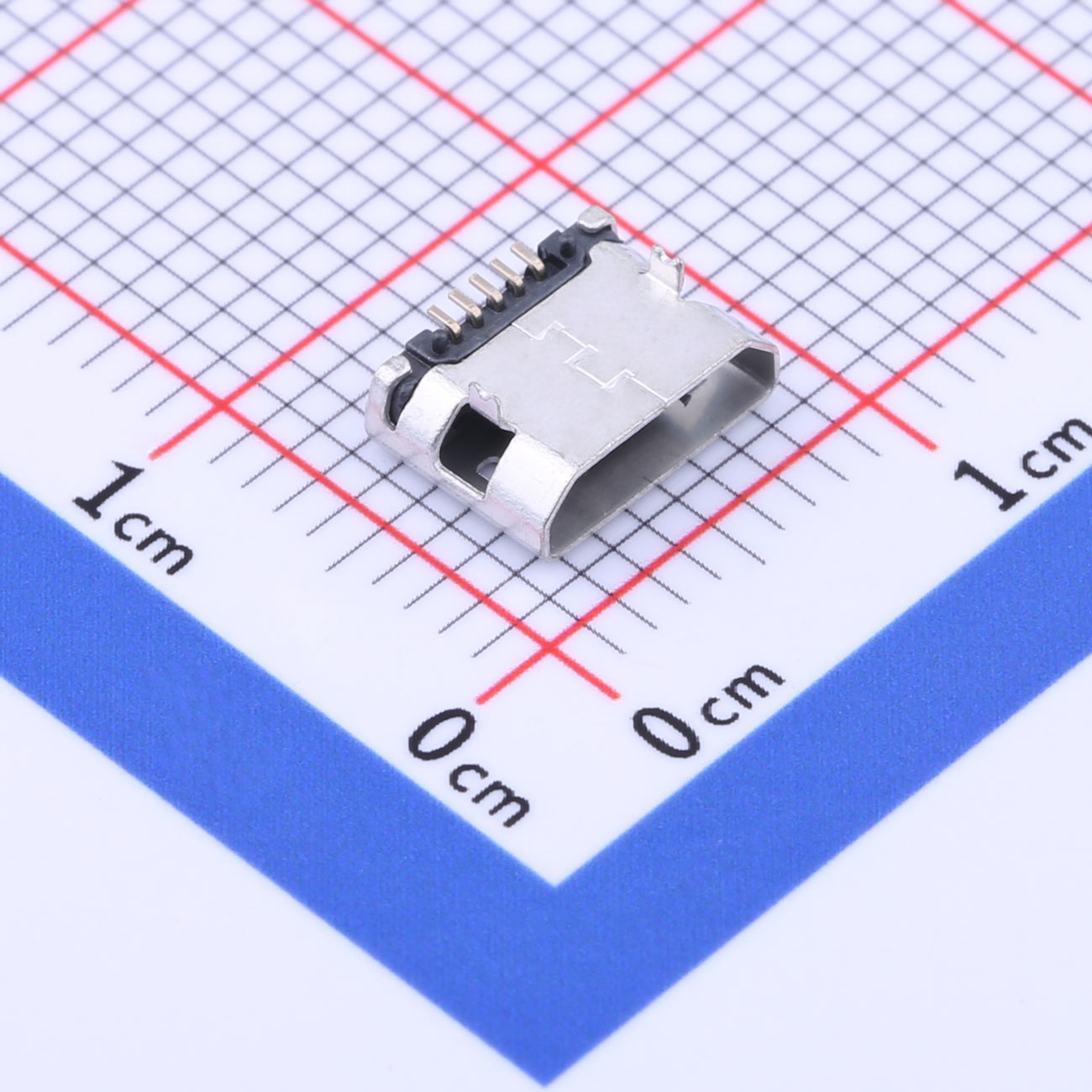

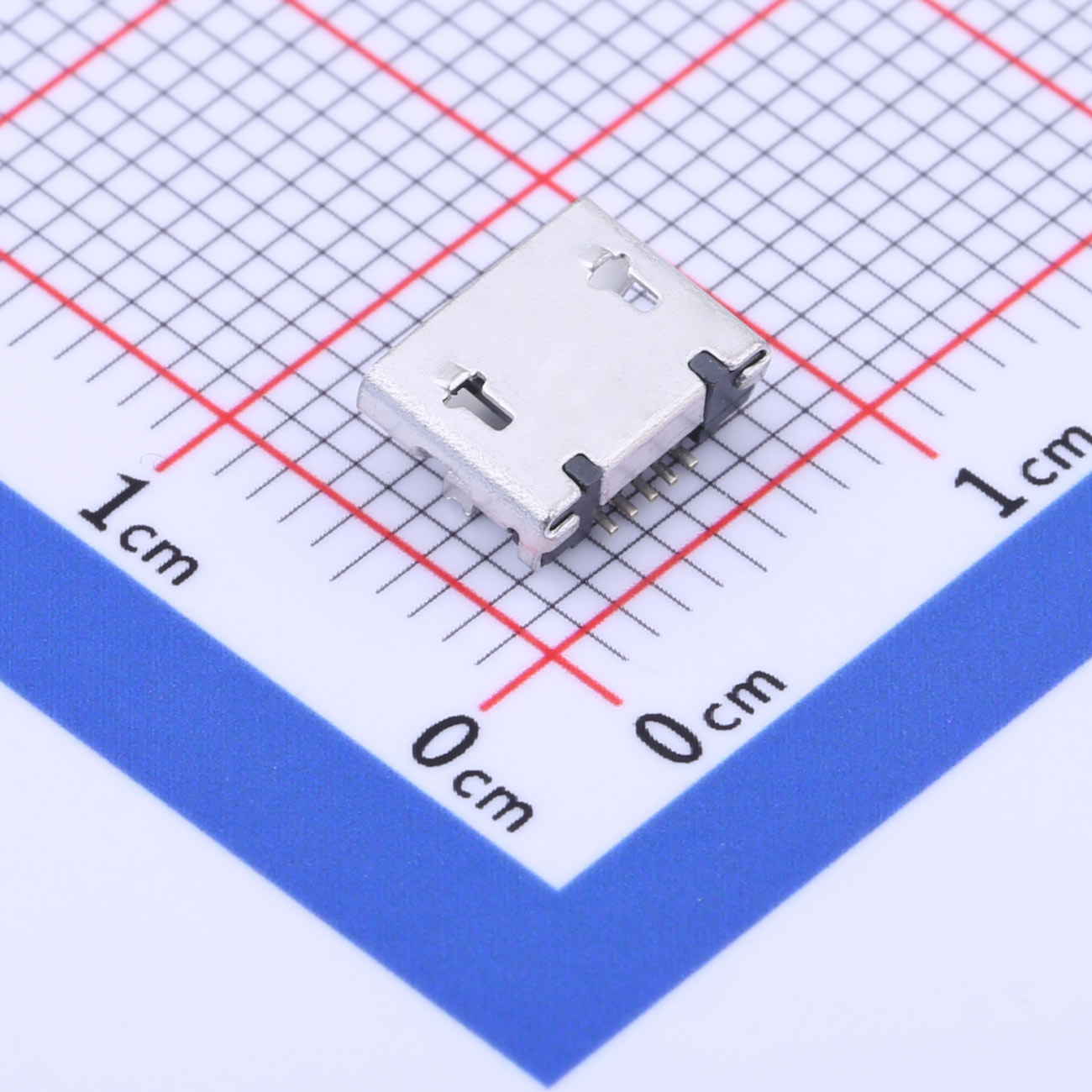

USB Micro-B Connectors Manufacturer | RoHS Compliant, Fast Shipping & Free Samples

Explore our range of USB Micro-B connectors, all RoHS compliant and designed for seamless integration in your projects. We provide fast shipping, free samples, and top-notch customer service to meet all your connectivity needs.

Current rating: 1 A Max

Contact Resistance: 50 mW (Max)

Insulation Impedance: 100 MW (Min)

Temperature Range: -30°C ~ +80°C

Download Datasheet Online Consultation

Product Details Product Documents Technical Support

Product Features

● USB 2.0 standard compatible

● 5-pin design for data transfer and power supply

● SMD (Surface Mount Device) installation

● Horizontal mounting with positioning pillars for precise placement

● Operating temperature range from -30°C to +80°C

● Durable plastic and phosphor bronze materials

● Compact and space-saving design

Product Benefits

● Ensures stable and reliable data and power connections

● Precise PCB placement with built-in positioning pillars

● Easy installation with surface mount design

● High durability and electrical performance

● Cost-effective solution for large-scale production

● Wide compatibility with USB Micro-B devices

Product Applications

● Used in communication devices and mobile power banks

● Ideal for cameras, MP3/MP4 players, and DVD players

● Suitable for audio equipment and consumer electronics

● Widely applied in industrial, automotive, and medical custom devices

Name

Title

Description

KH-MICRO5P-ZH.pdf

Datasheet
