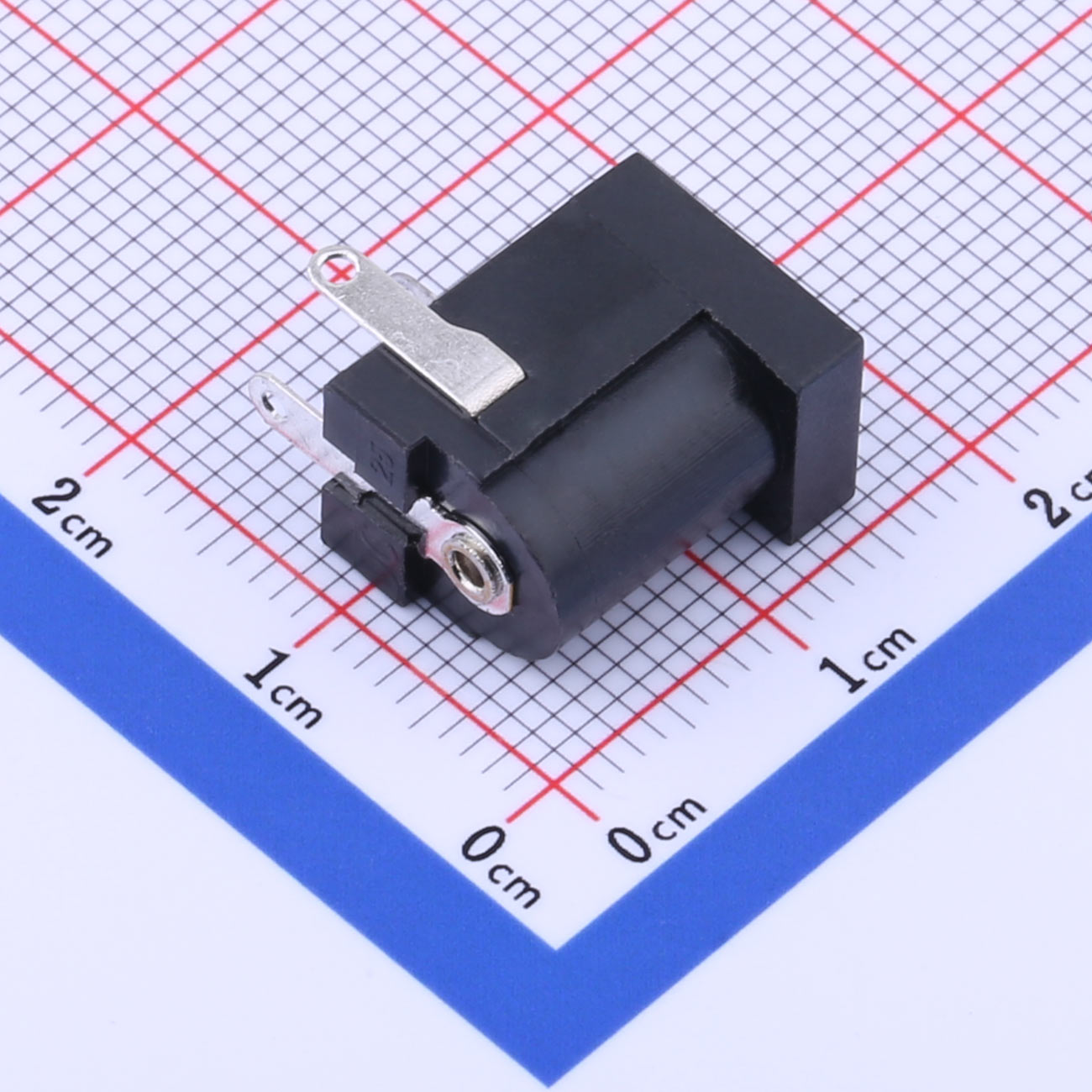

DC Power Socket, 2mm ID, 6.4mm OD, 1A, 30V, KH-DC1009-NW
Product OverviewThe KH-DC1009-NW is a DC power socket with a 2mm inner diameter and 6.4mm outer diam
Applicable Temperature: -25°C to +70°C
Rated Voltage: DC 30V
Rated Current: 1A
Contact Resistance: 30mΩ Max
Insulation Resistance: 100MΩ Min
Product Overview
The KH-DC1009-NW is a DC power socket with a 2mm inner diameter and 6.4mm outer diameter, rated for 1A and 30V. It offers a reliable power connection with low contact resistance and high insulation resistance, suitable for a variety of applications.
Key Features
● 2mm inner diameter and 6.4mm outer diameter for standard DC plugs
● Rated for 1A current and 30V voltage
● Contact resistance ≤ 30mΩ for efficient power transfer
● Insulation resistance ≥ 100MΩ for safety and reliability
● Operating temperature range from -25°C to +70°C
Applications
● Low-power electronics and devices
● Consumer electronics repair
● Custom power supplies and enclosures
● Prototyping and DIY electronics projects
