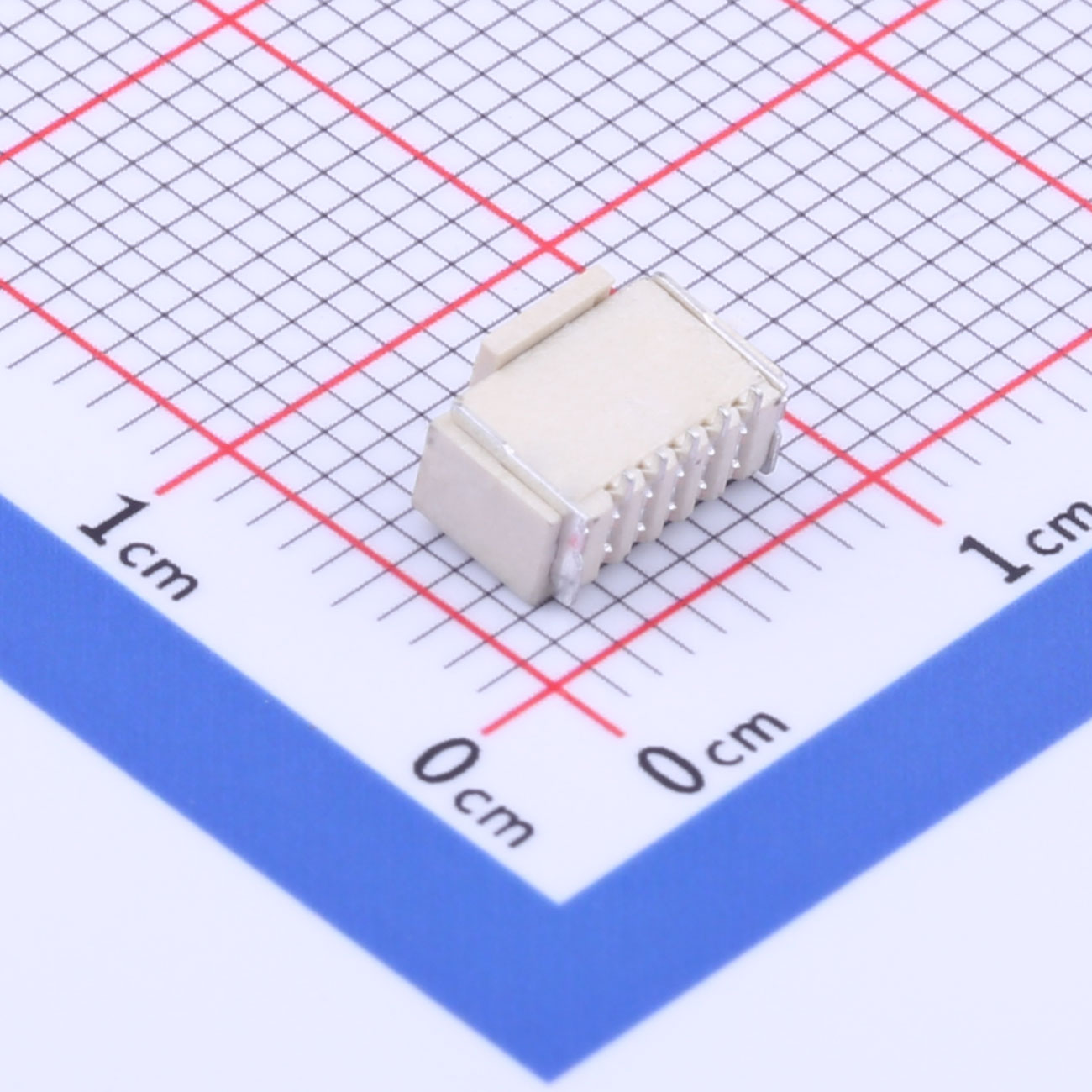

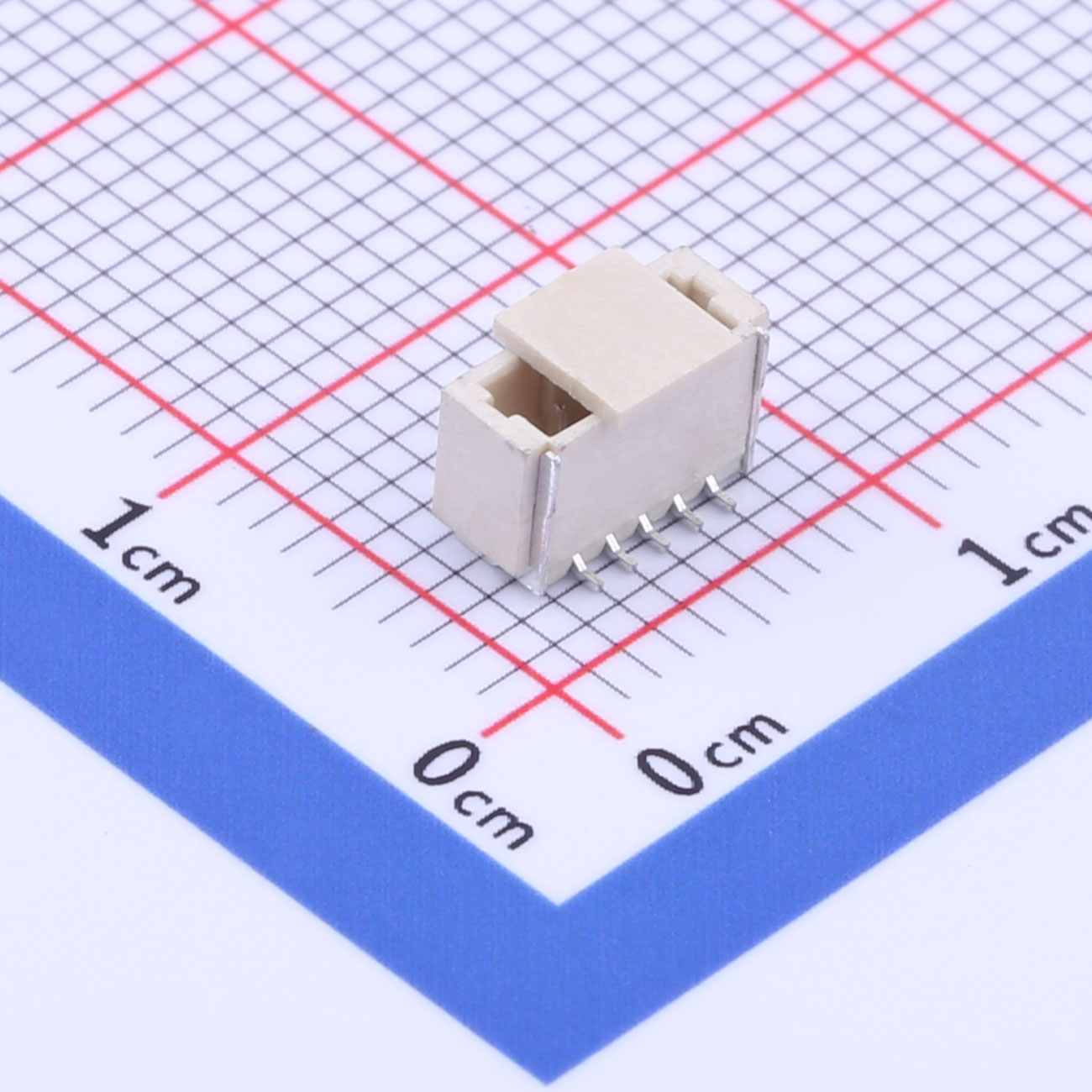

Wire to Board Connector, 1mm Pitch, 1x5P, Vertical SMT, KH-A1001LF-05A
Product Benefits● Compact design saves PCB space● Reliable electrical performance● Easy surface moun
Current Rating: 1A AC, DC
Voltage Rating: 50V AC, DC
Temperature Range: -25℃~85℃
Contact Resistance: 20mΩ Max
Insulation Resistance: 100MΩ Min
Product Benefits
● Compact design saves PCB space
● Reliable electrical performance
● Easy surface mount assembly
● Suitable for low power applications
● Stable contact ensures signal integrity
● Durable over wide temperature range
Product Applications
● Consumer electronics connections
● Communication device interfaces
● Industrial automation control
● Automotive electronics connectors
● Medical device interfaces
● LED lighting modules
● Smart home equipment
● Wearable electronics
