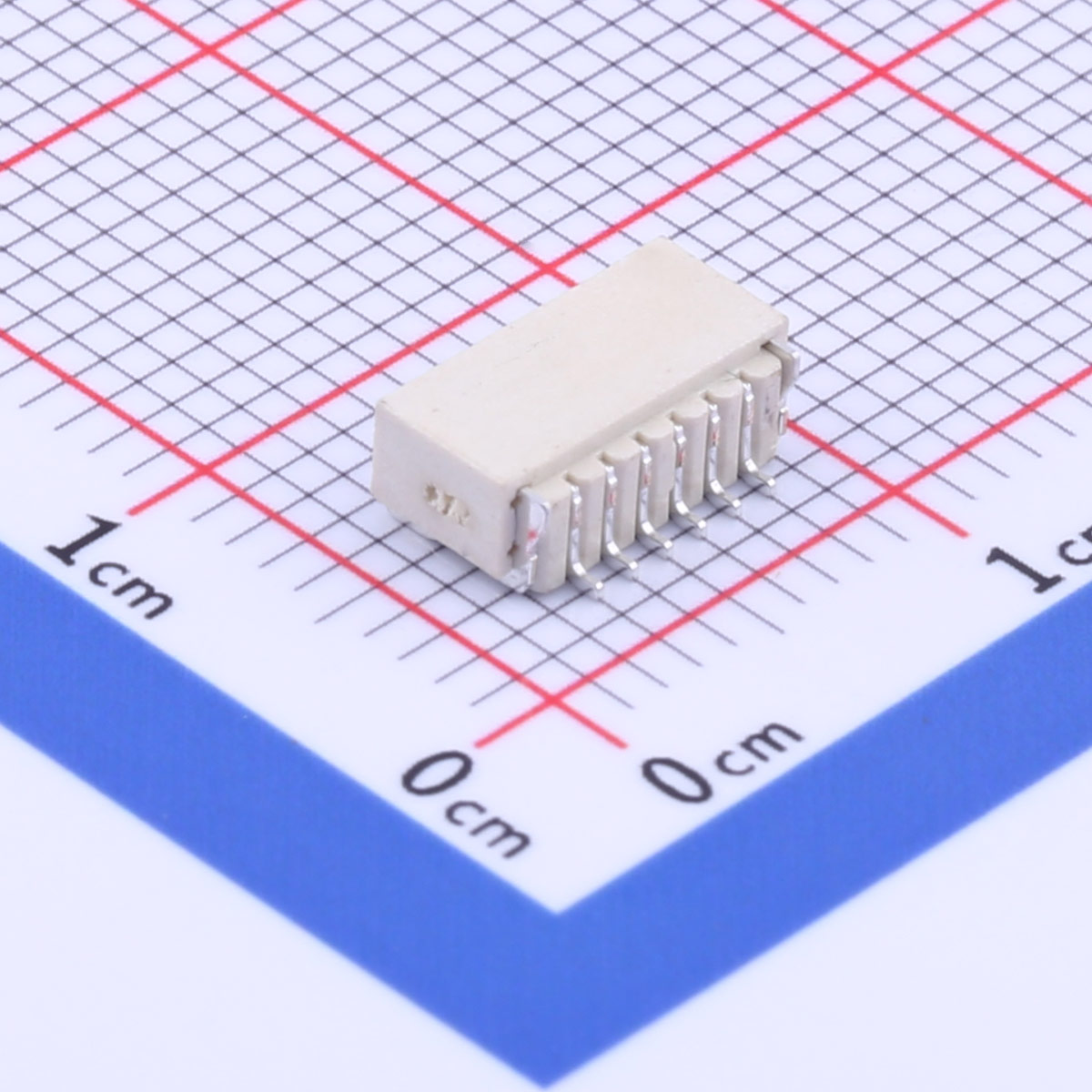

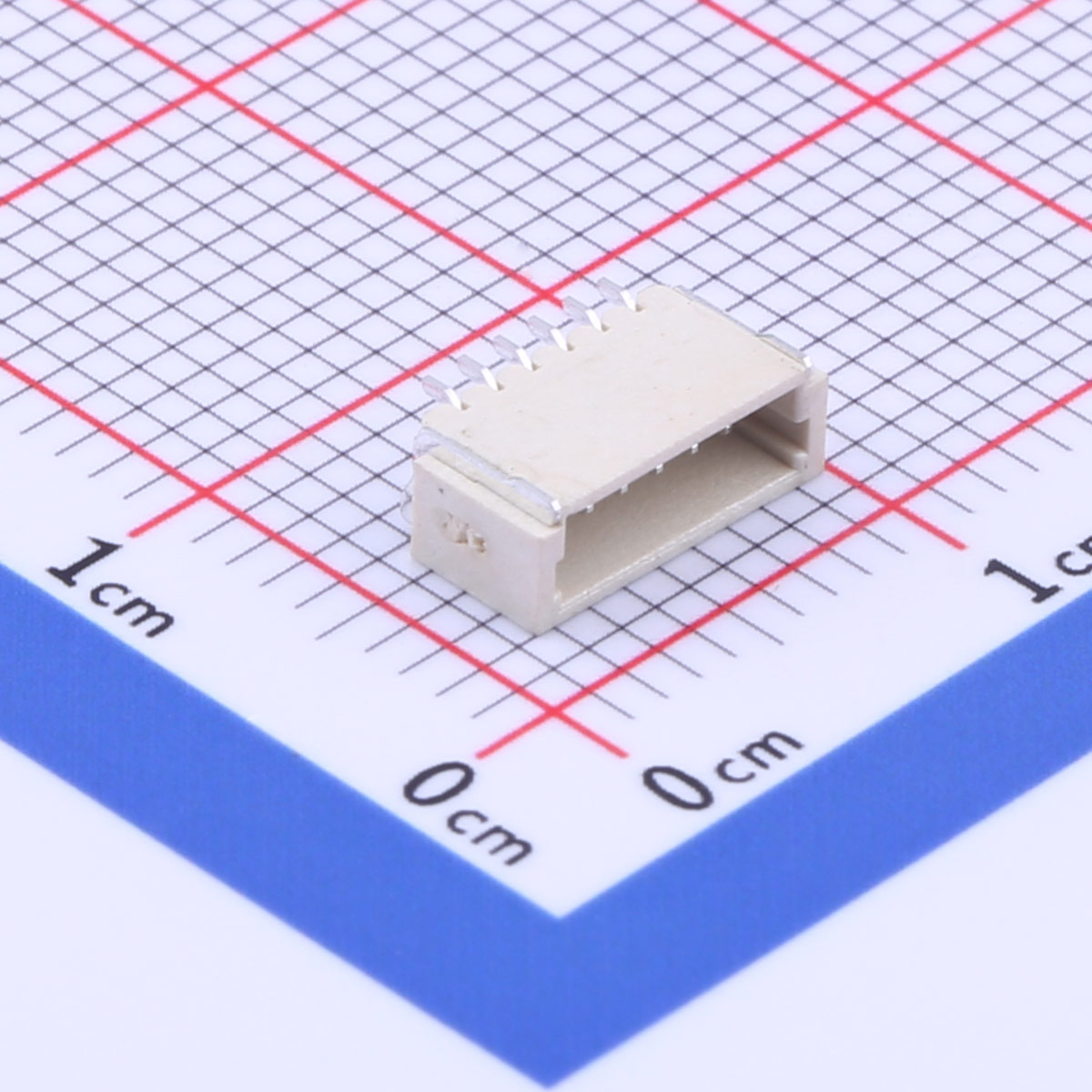

Wire to Board Connector, 1mm Pitch, 1x6P, SMD, KH-A1001WF-06A
Product Features● 1.0mm pitch, compact design● 1x6P single row layout● Right angle surface mount (SM
Current Rating: 1A AC/DC
Voltage Rating: 50V AC/DC
Temperature Range: -25℃ to +85℃
Contact Resistance: 20mΩ Max
Insulation Resistance: 100MΩ Min
Product Features
● 1.0mm pitch, compact design
● 1x6P single row layout
● Right angle surface mount (SMD)
● Operating temperature: -25℃ to +85℃
● Current rating: 1A
● Voltage rating: 50V AC/DC
Product Benefits
● Saves PCB space with fine pitch
● Supports horizontal board connections
● Compatible with automated SMT production
● Reliable electrical and mechanical performance
● Suitable for various temperature conditions
Product Applications
● Wearable electronics
● LED lighting systems
● Sensor modules
● Communication devices
● Smart home products
