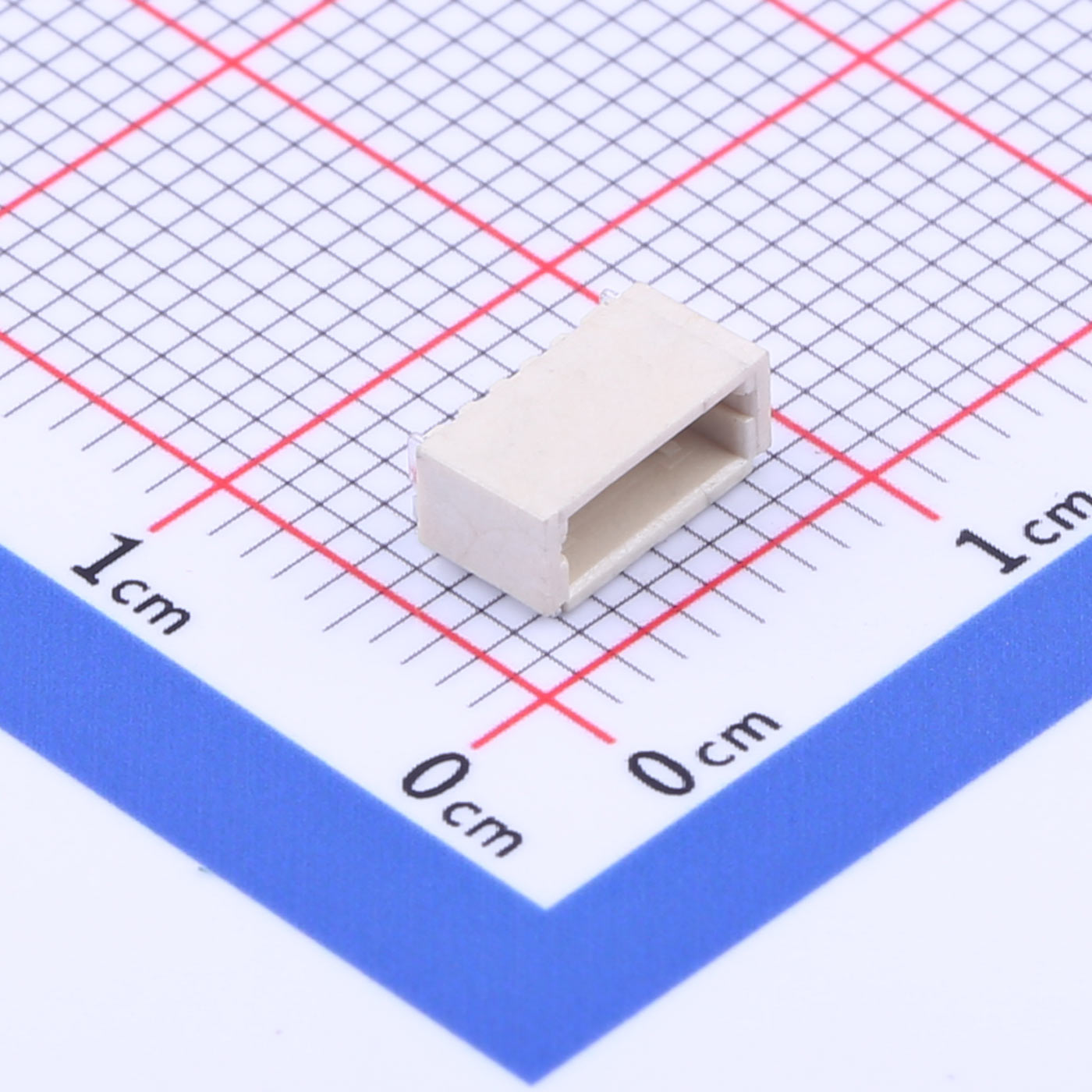

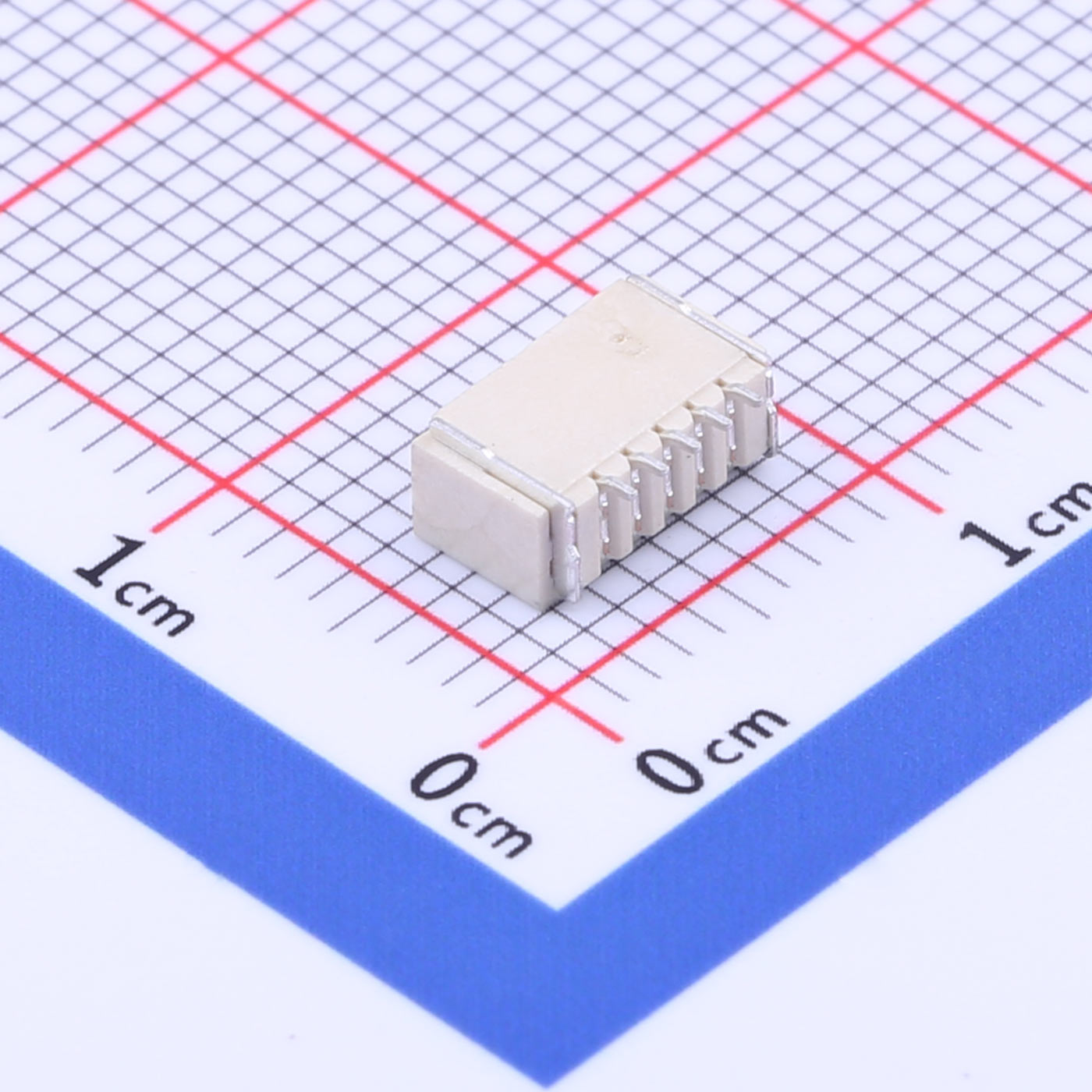

Wire to Board Connector, 1mm Pitch, 1x5P, SMD, KH-A1001WF-05A
Product Features● 1.0mm pitch● 1x5P single row● Right angle surface mount● Operating temperature: -2
Current Rating: 1A AC/DC
Voltage Rating: 50V AC/DC
Temperature Range: -25℃ to +85℃
Contact Resistance: 20mΩ Max
Insulation Resistance: 100MΩ Min
Product Features
● 1.0mm pitch
● 1x5P single row
● Right angle surface mount
● Operating temperature: -25℃ to +85℃
● Current rating: 1A
● Voltage rating: 50V AC/DC
Product Benefits
● Compact PCB layout
● Easy horizontal mating
● SMT process compatible
● Reliable contact
● Works in varied environments
Product Applications
● Wearables
● LED modules
● Sensors
● Communication boards
● Smart devices
Name
Title
Description
Datasheet
Support
Support
If you need design/technical support, please let us know and fill inResponse FormWe will get back to you as soon as possible.
Longevity
The Longevity Program is aimed to provide our customers information from time to time about the expected time that our products can be ordered. The NLP is reviewed and updated regularly by our executive Management Team. View ourlongevity programhere.
