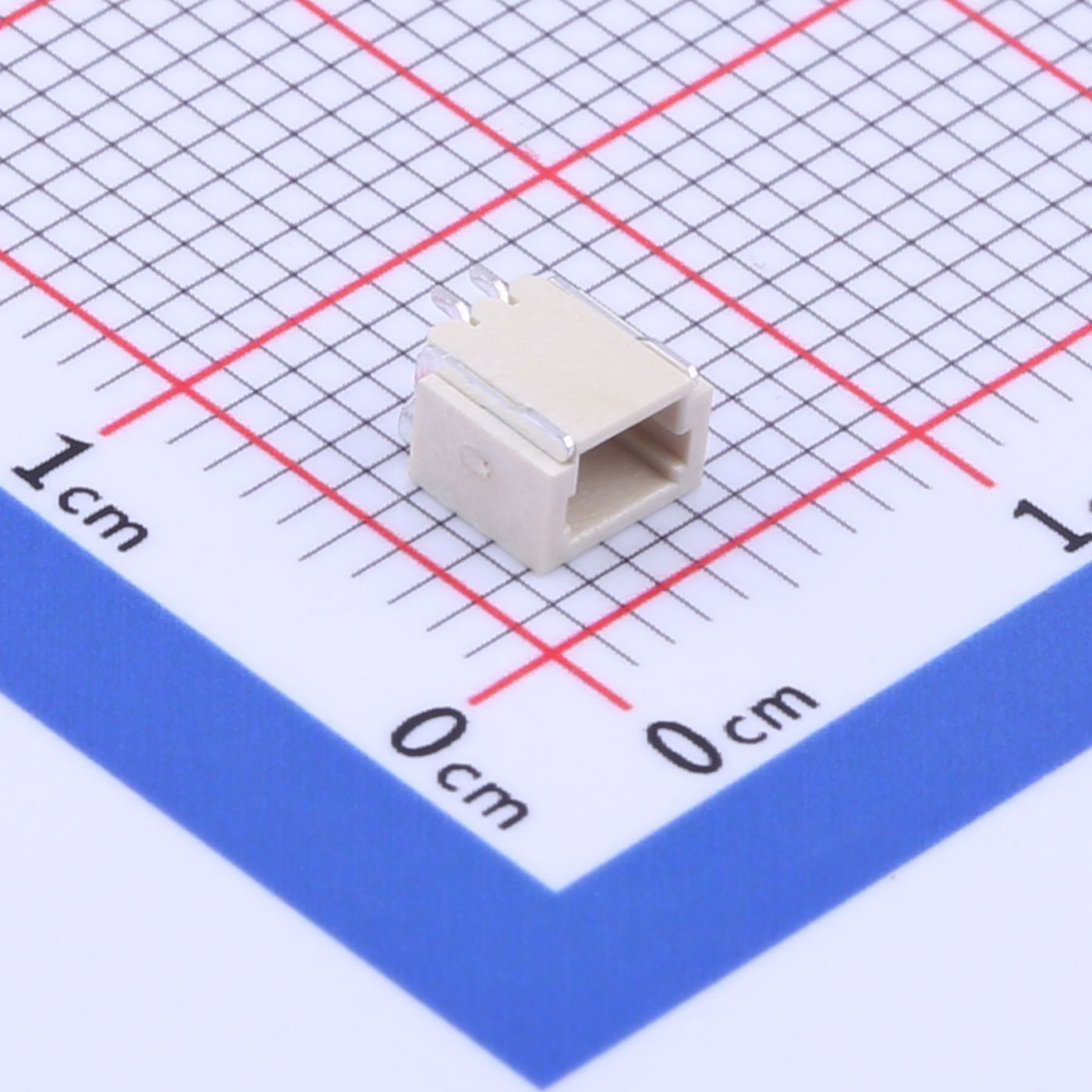

Wire to Board Connector, 1mm Pitch, 1x3P, SMD, KH-A1001WF-03A
Product Features● 1.0mm pitch● 1x3P single row● Right angle surface mount● Operating temperature: -2
Current Rating: 1A AC/DC
Voltage Rating: 50V AC/DC
Temperature Range: -25℃ to +85℃
Contact Resistance: 20mΩ Max
Insulation Resistance: 100MΩ Min
Product Features
● 1.0mm pitch
● 1x3P single row
● Right angle surface mount
● Operating temperature: -25℃ to +85℃
● Current rating: 1A
● Voltage rating: 50V AC/DC
Product Benefits
● Space-efficient layout
● Easy to mate horizontally
● SMT compatible
● Reliable electrical contact
● Performs in wide temp range
Product Applications
● Sensors
● LED indicators
● Portable electronics
● Control boards
● Wireless devices
