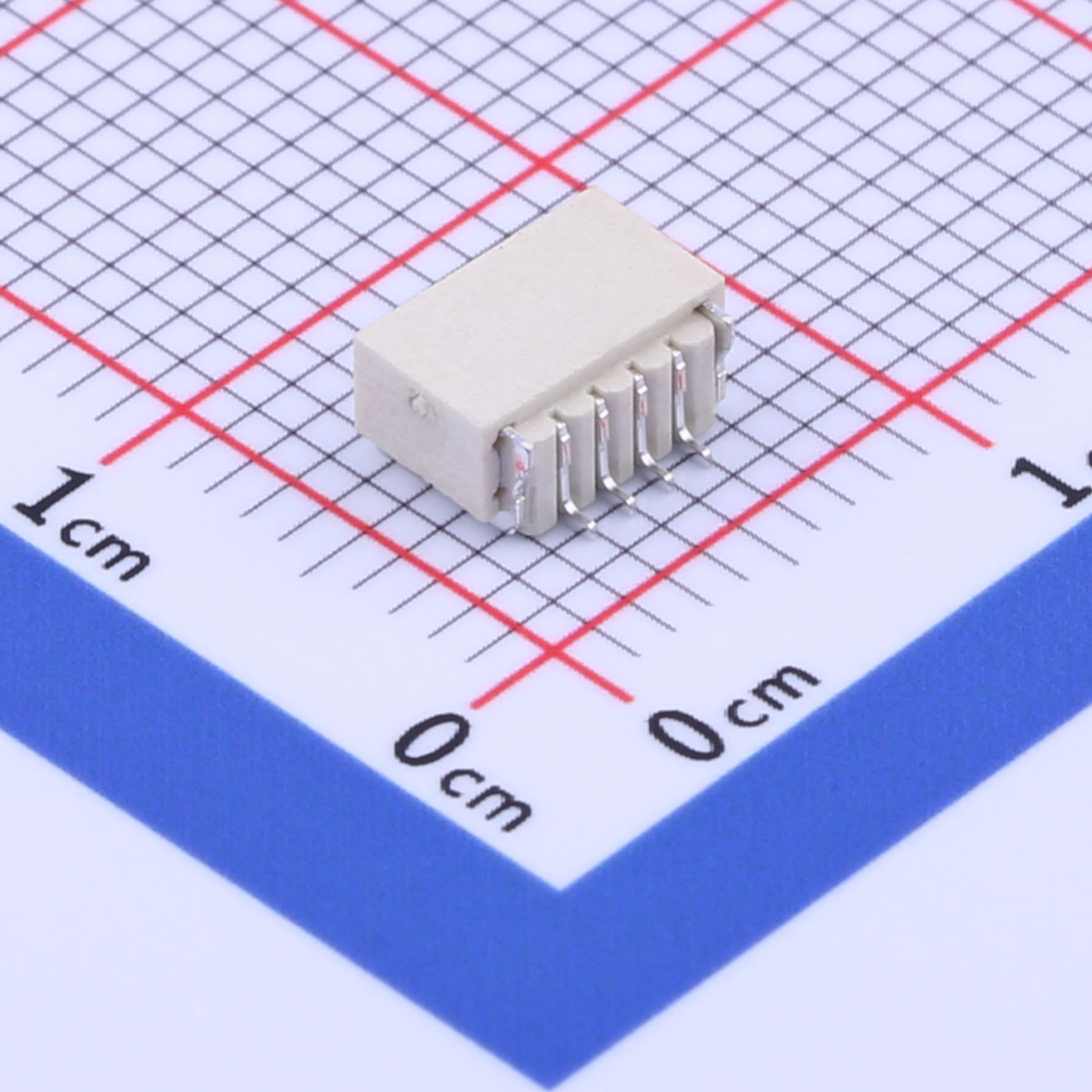

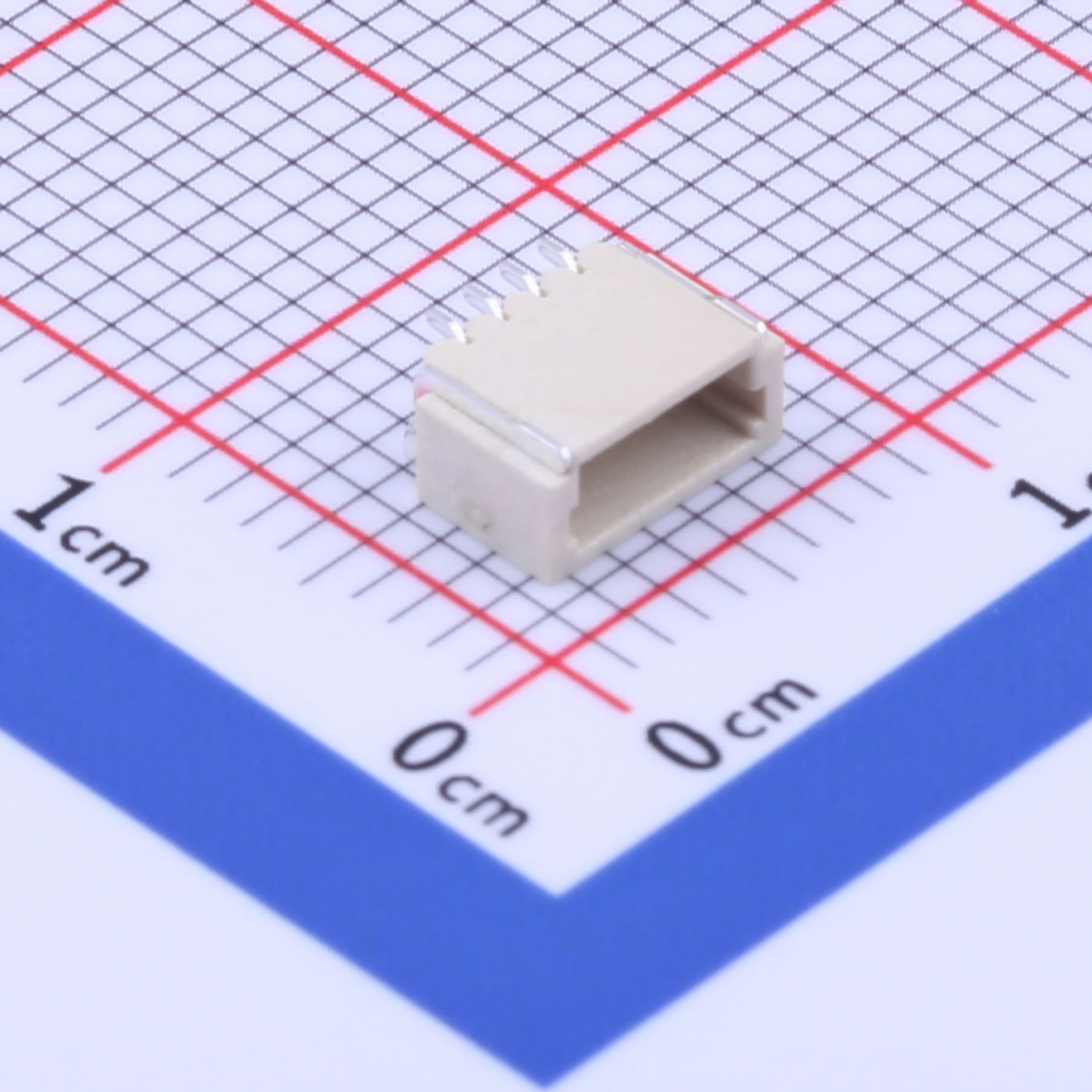

Wire to Board Connector, 1mm Pitch, 1x4P, SMD, KH-A1001WF-04A
Product Features● 1.0mm pitch● 1x4P single row● Right angle SMD type● Temperature range: -25℃ to +85
Current Rating: 1A AC/DC
Voltage Rating: 50V AC/DC
Temperature Range: -25℃ to +85℃
Contact Resistance: 20mΩ Max
Insulation Resistance: 100MΩ Min
Product Features
● 1.0mm pitch
● 1x4P single row
● Right angle SMD type
● Temperature range: -25℃ to +85℃
● Current rating: 1A
● Voltage rating: 50V AC/DC
Product Benefits
● Saves PCB space
● Horizontal connection
● SMT-friendly design
● Stable contact
● Suitable for compact devices
Product Applications
● Wearable tech
● LED lighting
● Sensor interfaces
● Communication modules
● Smart home products
Name
Title
Description
Datasheet
Support
Support
If you need design/technical support, please let us know and fill inResponse FormWe will get back to you as soon as possible.
Longevity
The Longevity Program is aimed to provide our customers information from time to time about the expected time that our products can be ordered. The NLP is reviewed and updated regularly by our executive Management Team. View ourlongevity programhere.
