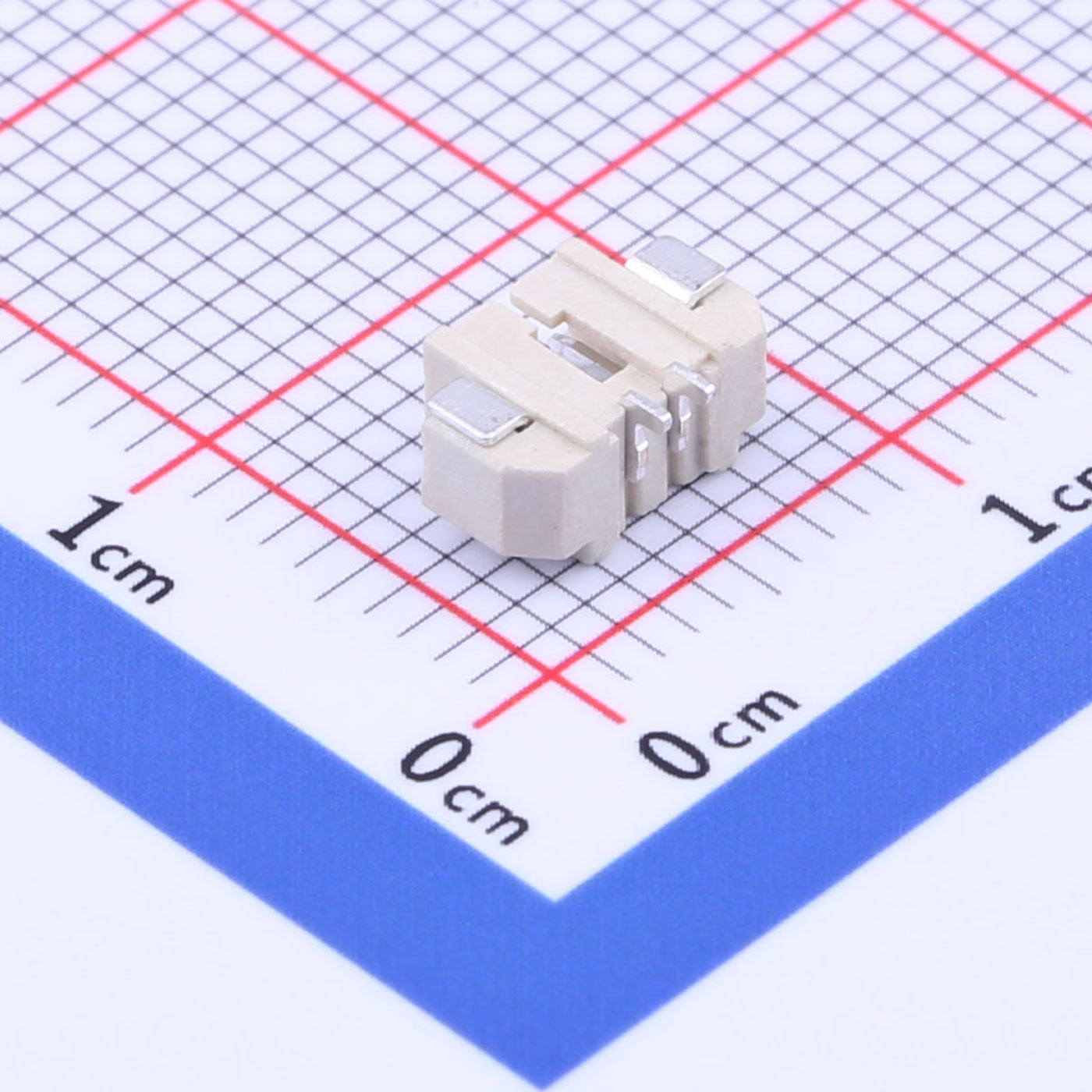

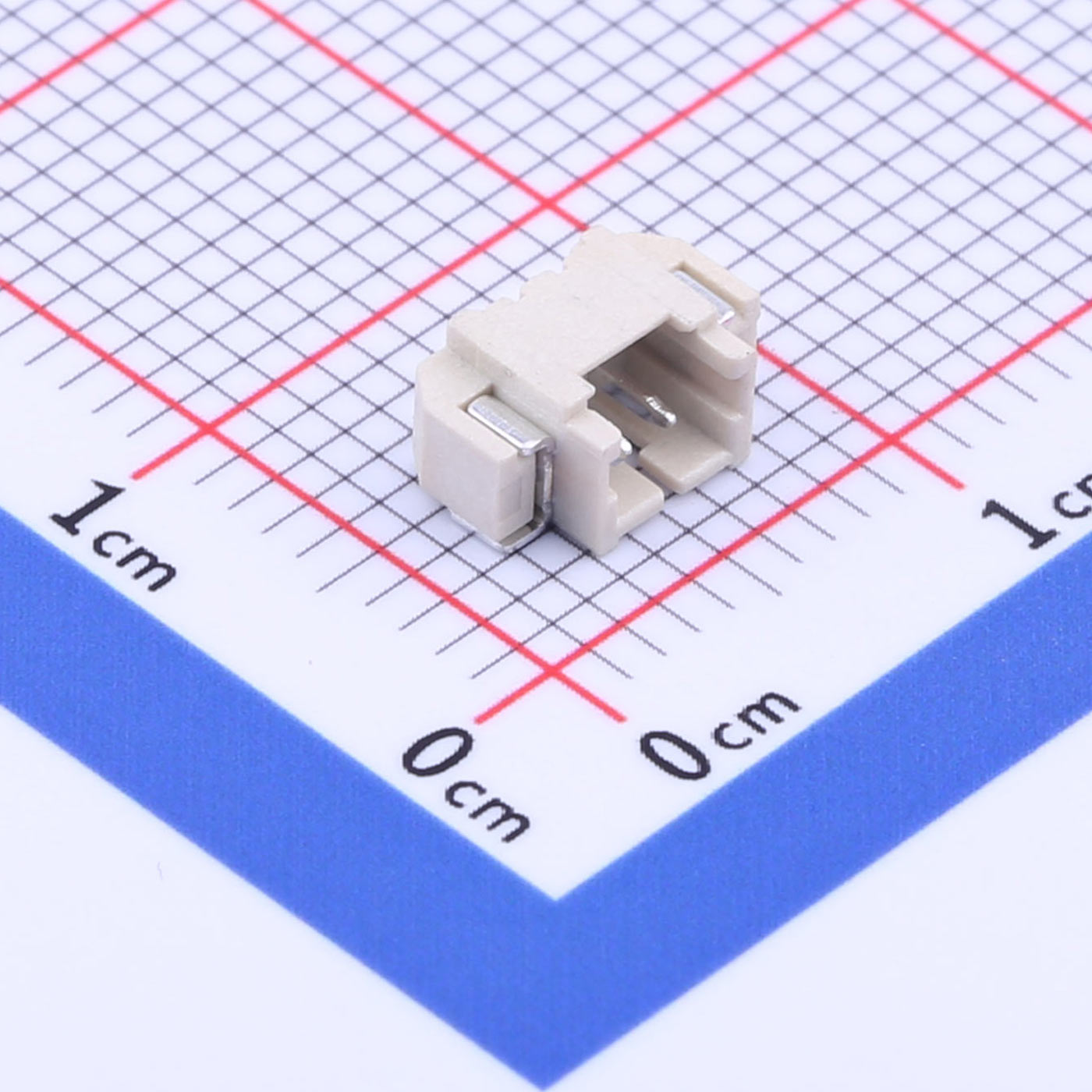

Wire to Board Connector, 1.25mm Pitch, 1x2P, SMD, KH-A1251WF-02A
Product Features● 1.25mm pitch, minimal footprint● 1x2P single row● Right angle SMD format● Streamli
Current Rating: 1A AC/DC
Voltage Rating: 125V AC/DC
Temperature Range: -25℃ to +85℃
Contact Resistance: 20mΩ Max
Insulation Resistance: 100MΩ Min
Product Features
● 1.25mm pitch, minimal footprint
● 1x2P single row
● Right angle SMD format
● Streamlined for ultra-compact devices
● -25℃ to +85℃ operating temperature
● 1A current rating
Product Benefits
● Perfect for space-constrained applications
● Fast and reliable SMT processing
● Suitable for low-pin count signal paths
● Durable under normal operating temperatures
● Low-profile and easy to integrate
Product Applications
● Battery connections
● LED terminals
● Micro sensor links
● Compact wireless gadgets
● Embedded control units
Name
Title
Description
Datasheet
Support
Support
If you need design/technical support, please let us know and fill inResponse FormWe will get back to you as soon as possible.
Longevity
The Longevity Program is aimed to provide our customers information from time to time about the expected time that our products can be ordered. The NLP is reviewed and updated regularly by our executive Management Team. View ourlongevity programhere.
