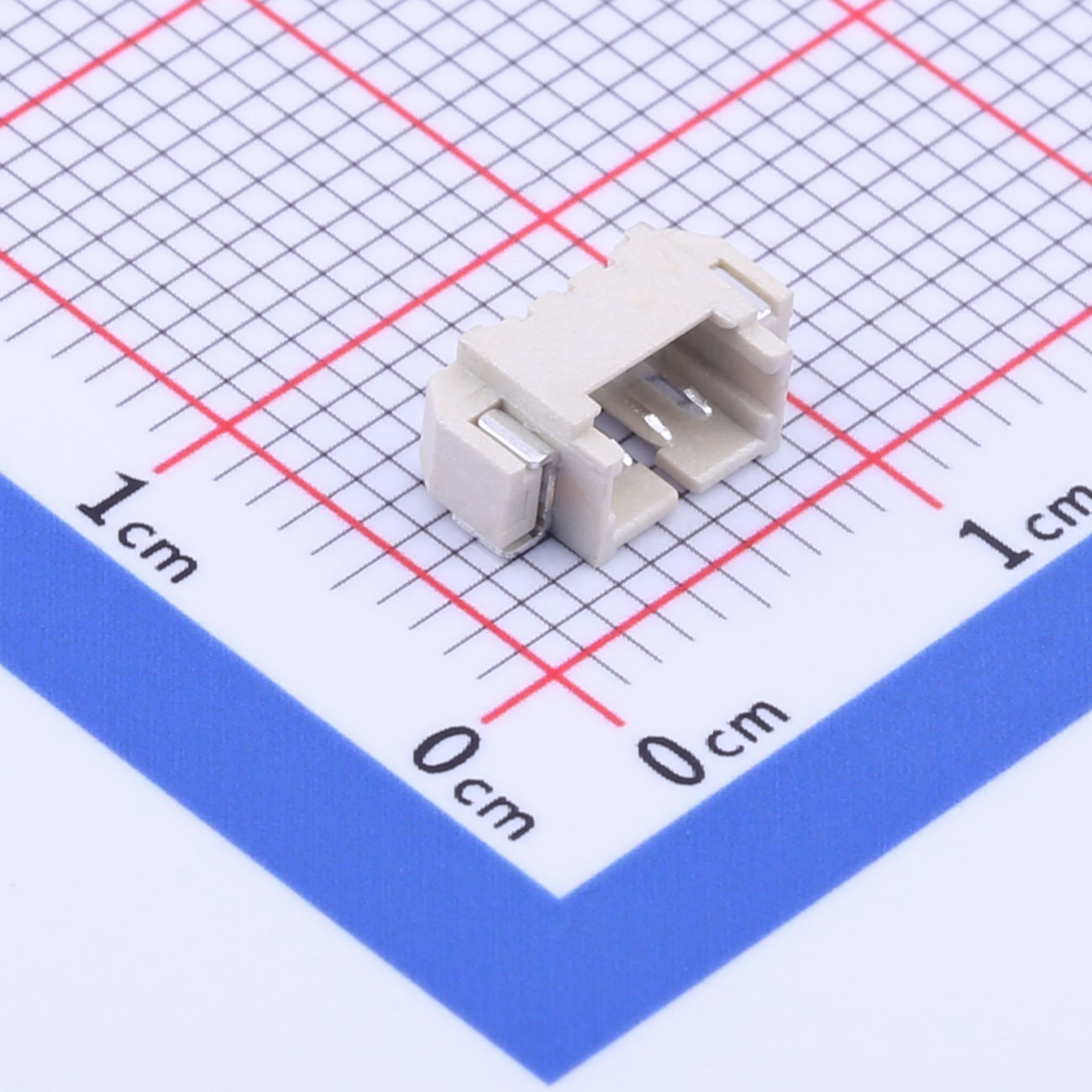

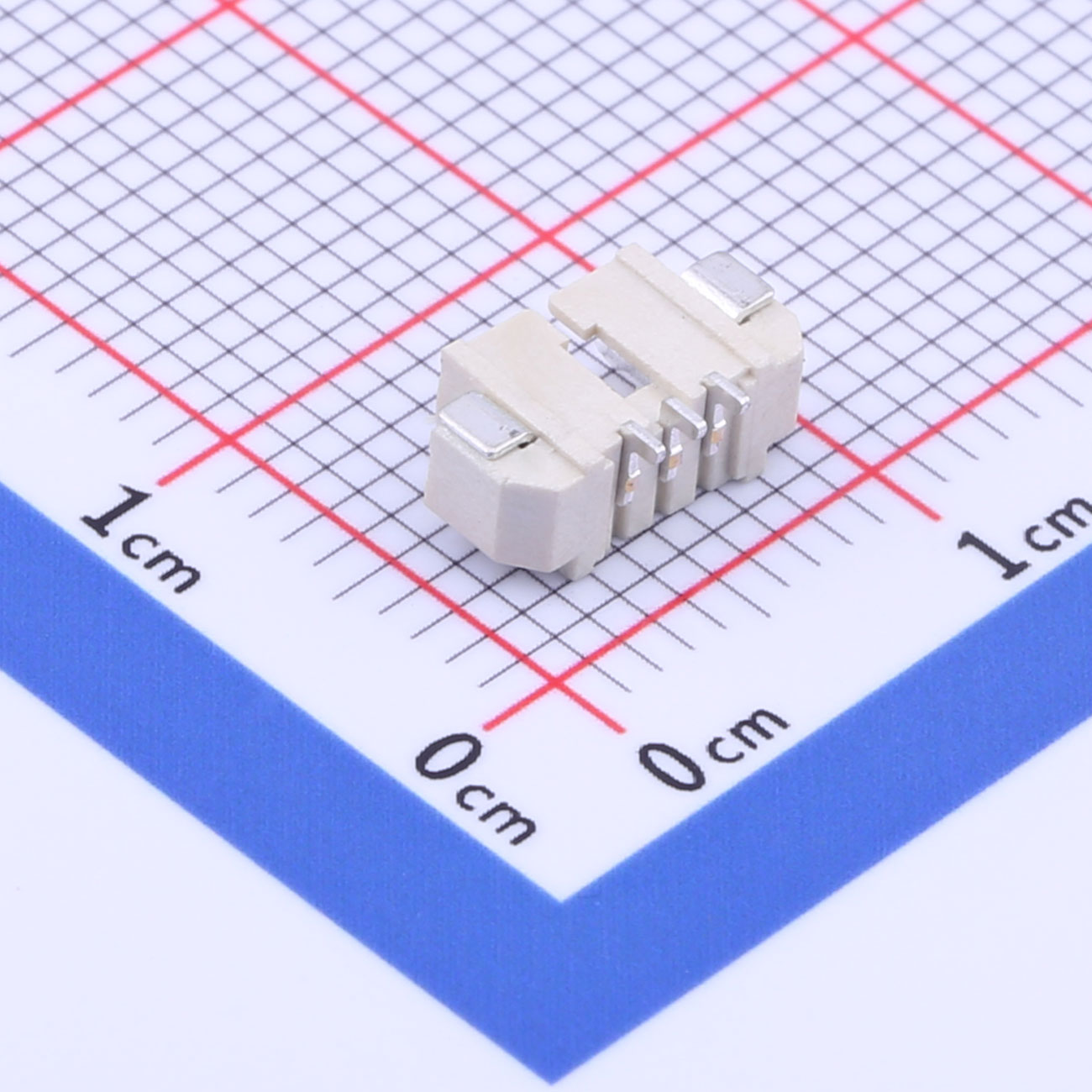

Wire to Board Connector, 1.25mm Pitch, 1x3P, SMD, KH-A1251WF-03A
Product Features● 1.25mm pitch for compact circuits● 1x3P single row pin layout● Right angle surface
Current Rating: 1A AC/DC
Voltage Rating: 125V AC/DC
Temperature Range: -25℃ to +85℃
Contact Resistance: 20mΩ Max
Insulation Resistance: 100MΩ Min
Product Features
● 1.25mm pitch for compact circuits
● 1x3P single row pin layout
● Right angle surface mount type
● Stable and compact design
● Temperature range: -25℃ to +85℃
● 1A rated current
Product Benefits
● Saves board space in small designs
● Easy integration into horizontal layouts
● Supports automated SMT assembly
● Consistent performance in harsh conditions
● Suited for signal or power lines
Product Applications
● Sensor interfaces
● Signal control modules
● Miniature electronics
● LED indicators
● Portable medical devices
Name
Title
Description
Datasheet
Support
Support
If you need design/technical support, please let us know and fill inResponse FormWe will get back to you as soon as possible.
Longevity
The Longevity Program is aimed to provide our customers information from time to time about the expected time that our products can be ordered. The NLP is reviewed and updated regularly by our executive Management Team. View ourlongevity programhere.
