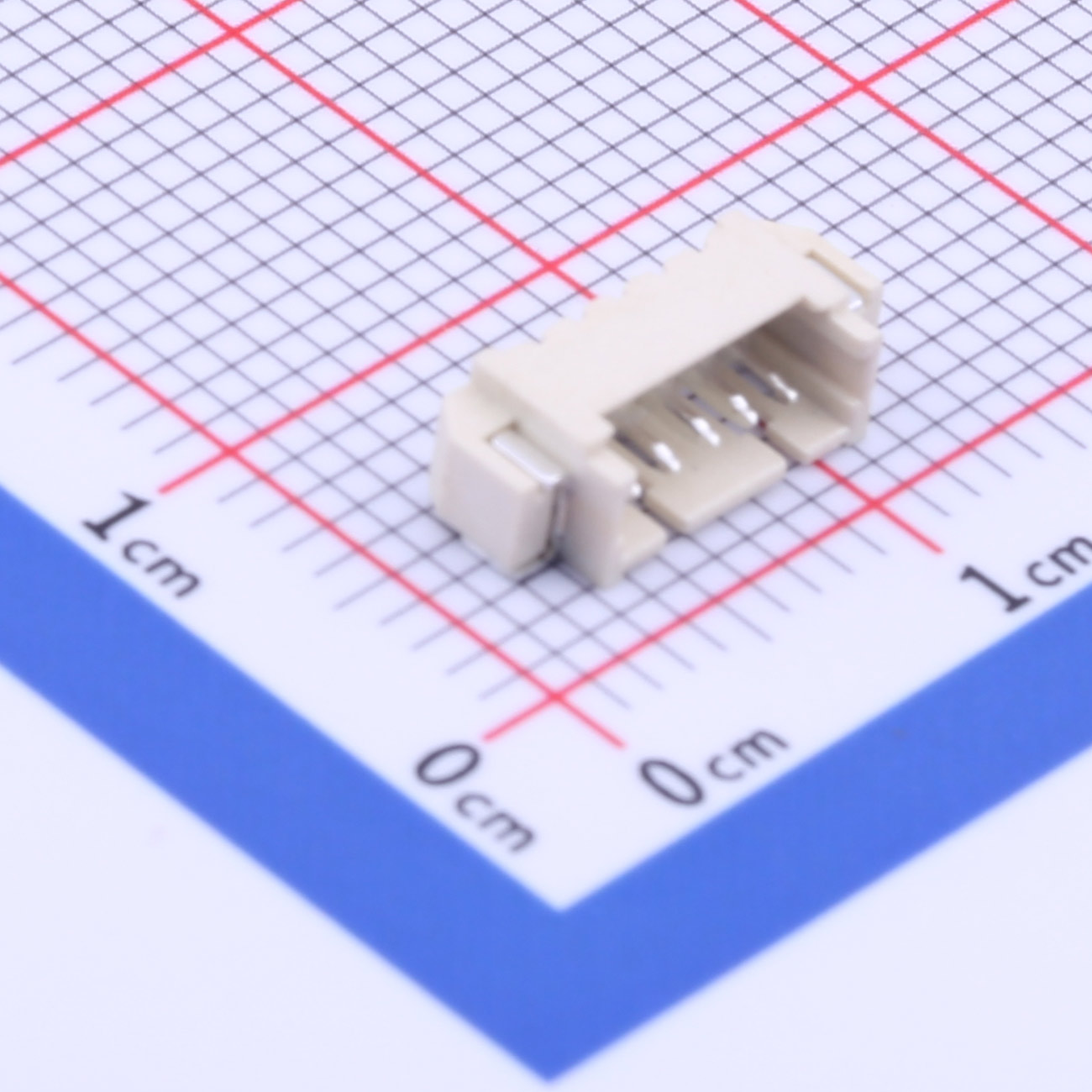

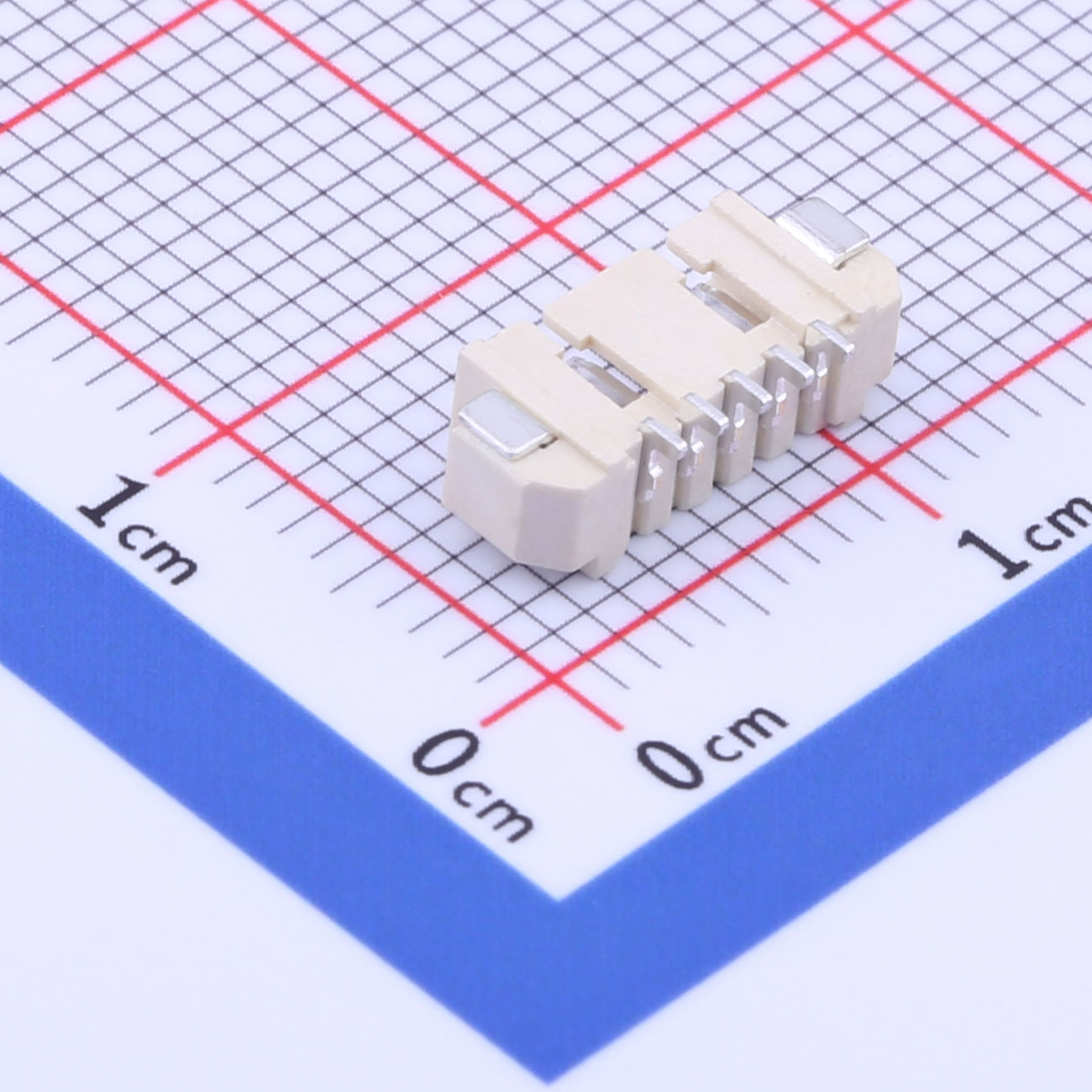

Wire to Board Connector, 1.25mm Pitch, 1x6P, SMD, KH-A1251WF-06A
Product Features● 1.25mm fine pitch for compact layouts● 1x6P single row pin structure● Right angle
Current Rating: 1A AC/DC
Voltage Rating: 125V AC/DC
Temperature Range: -25℃ to +85℃
Contact Resistance: 20mΩ Max
Insulation Resistance: 100MΩ Min
Product Features
● 1.25mm fine pitch for compact layouts
● 1x6P single row pin structure
● Right angle surface mount (SMD) design
● Space-efficient and low-profile housing
● Operating temperature: -25℃ to +85℃
● Current rating: 1A per contact
Product Benefits
● Ideal for high-density PCB applications
● Right angle design simplifies horizontal mating
● Supports automated SMT production
● Stable performance in compact and mobile devices
● Reliable operation in varied temperature environments
Product Applications
● Wearable technology
● LED lighting systems
● Compact consumer electronics
● Communication modules
● Smart home control units
Name
Title
Description
Datasheet
Support
Support
If you need design/technical support, please let us know and fill inResponse FormWe will get back to you as soon as possible.
Longevity
The Longevity Program is aimed to provide our customers information from time to time about the expected time that our products can be ordered. The NLP is reviewed and updated regularly by our executive Management Team. View ourlongevity programhere.
