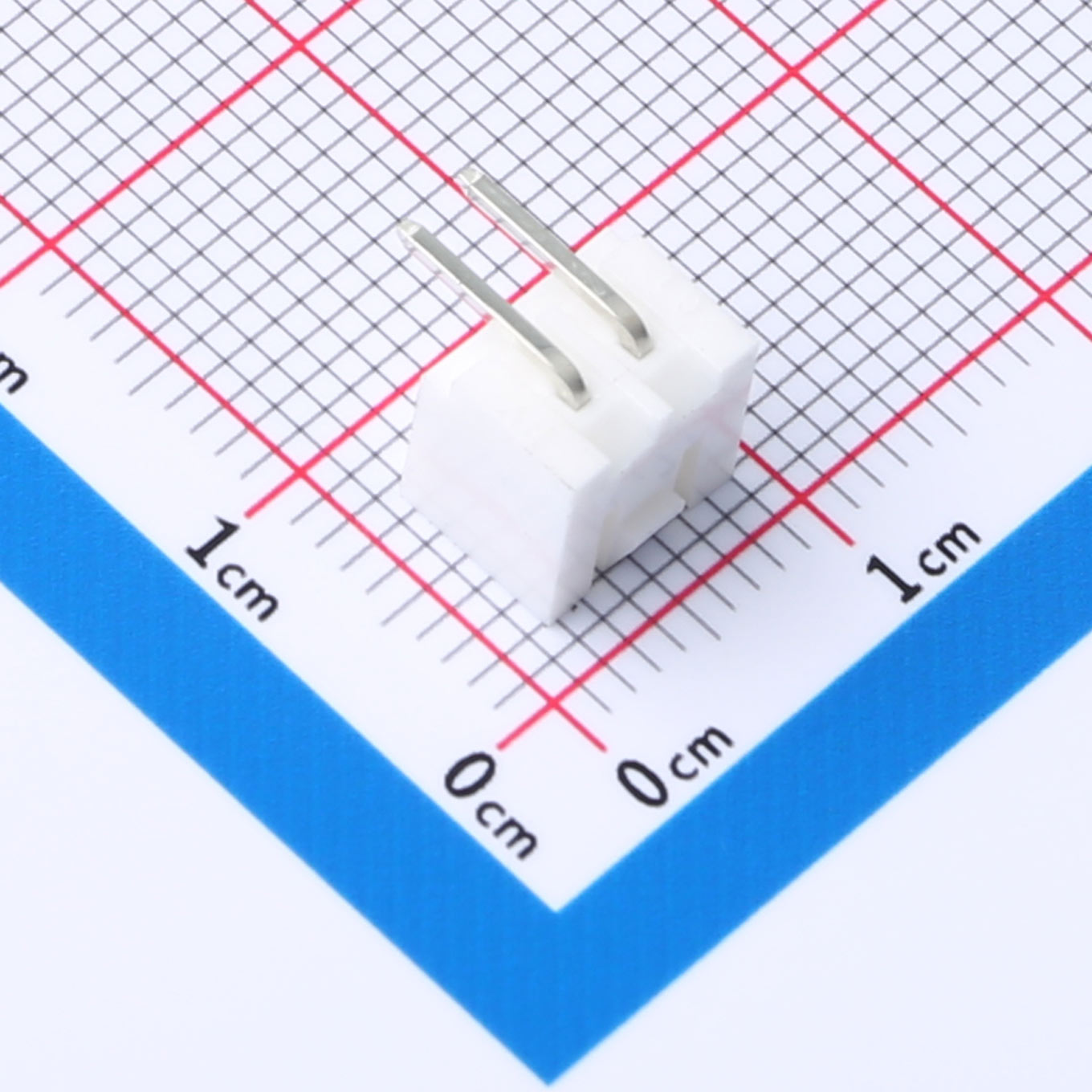

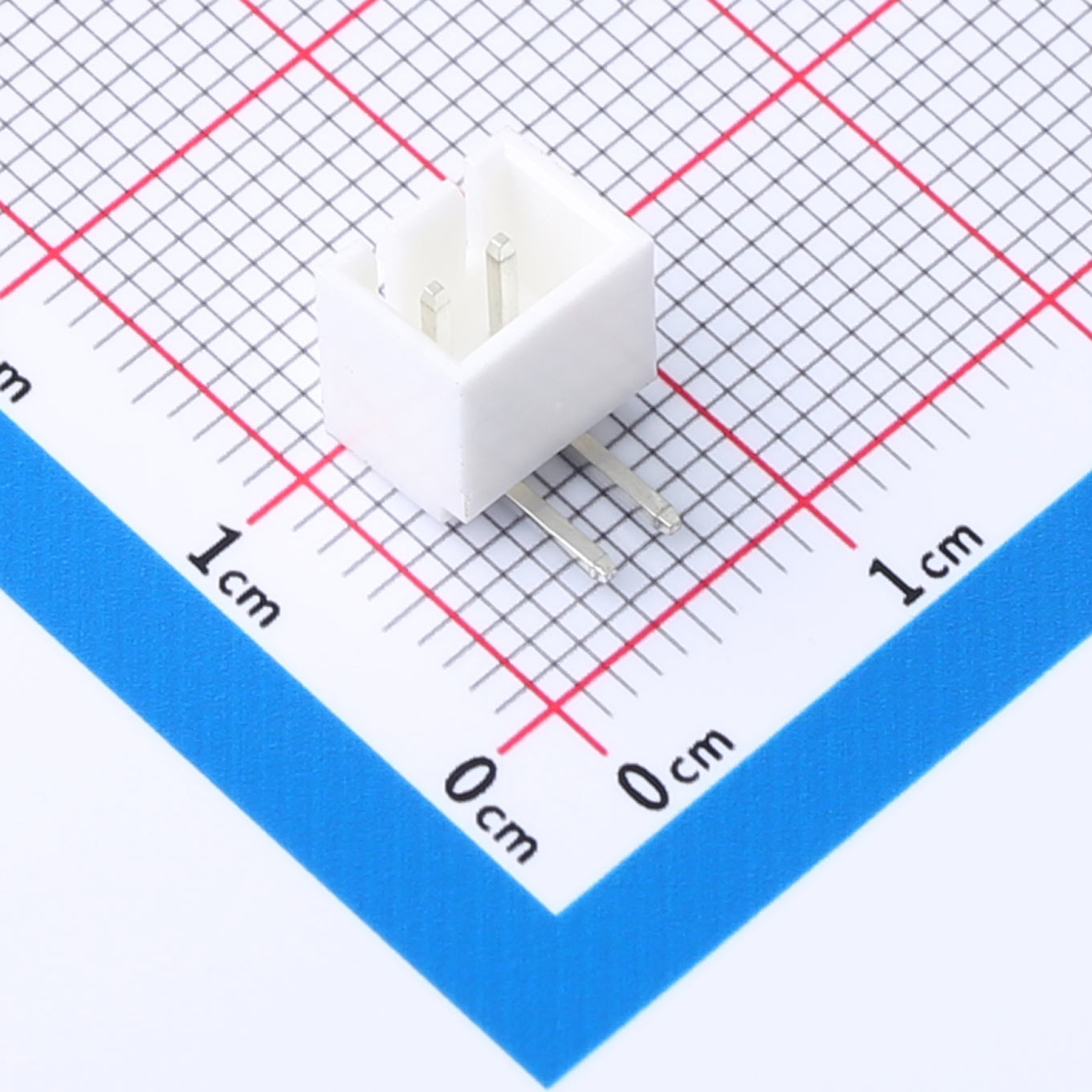

2.54mm Pitch Wire-to-Board Connector 1x2P--KH-A2504-02AW
Product Features● Wire-to-board connector, 2x pins● 2.54mm pitch, HA bent pins with latch● Through-h
Current Rating: 3A (AC/DC)
Voltage Rating: 250V (AC/DC)
Temperature Range: -25℃ to +85℃
Contact Resistance: 20mΩ Max
Insulation Resistance: 1000MΩ Min
Product Features
● Wire-to-board connector, 2x pins
● 2.54mm pitch, HA bent pins with latch
● Through-hole (P=2.5mm) mount
● White insulating housing
Product Benefits
● Ideal for single-channel signal or power
● Secure latch for cable retention
● Minimal design, easy to integrate
● Suits small control interfaces
● High compatibility with 2.54mm plug systems
Product Applications
● Power switch wiring
● LED or buzzer modules
● DIY electronics connections
● Debug/testing interfaces
Name
Title
Description
Datasheet
Support
Support
If you need design/technical support, please let us know and fill inResponse FormWe will get back to you as soon as possible.
Longevity
The Longevity Program is aimed to provide our customers information from time to time about the expected time that our products can be ordered. The NLP is reviewed and updated regularly by our executive Management Team. View ourlongevity programhere.
