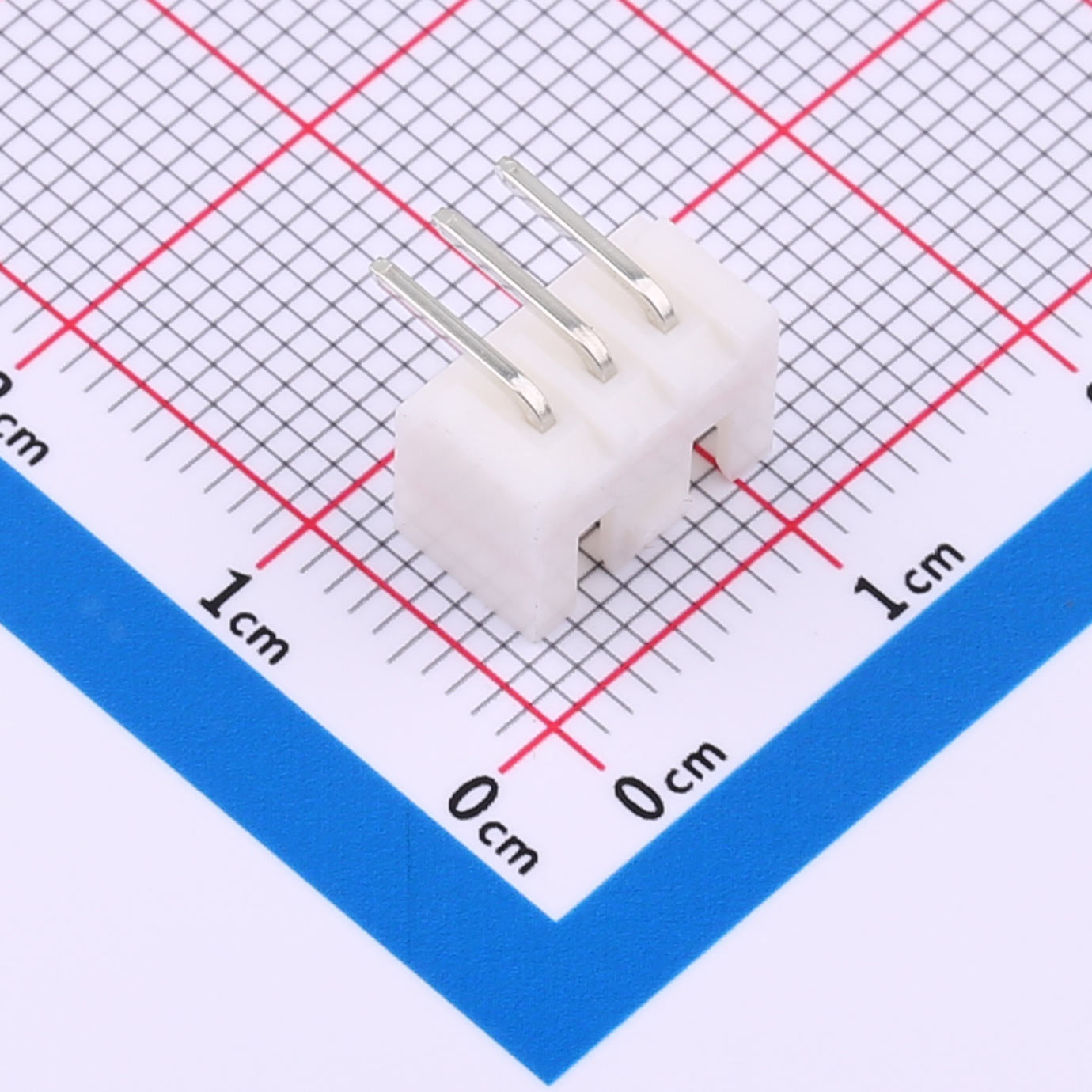

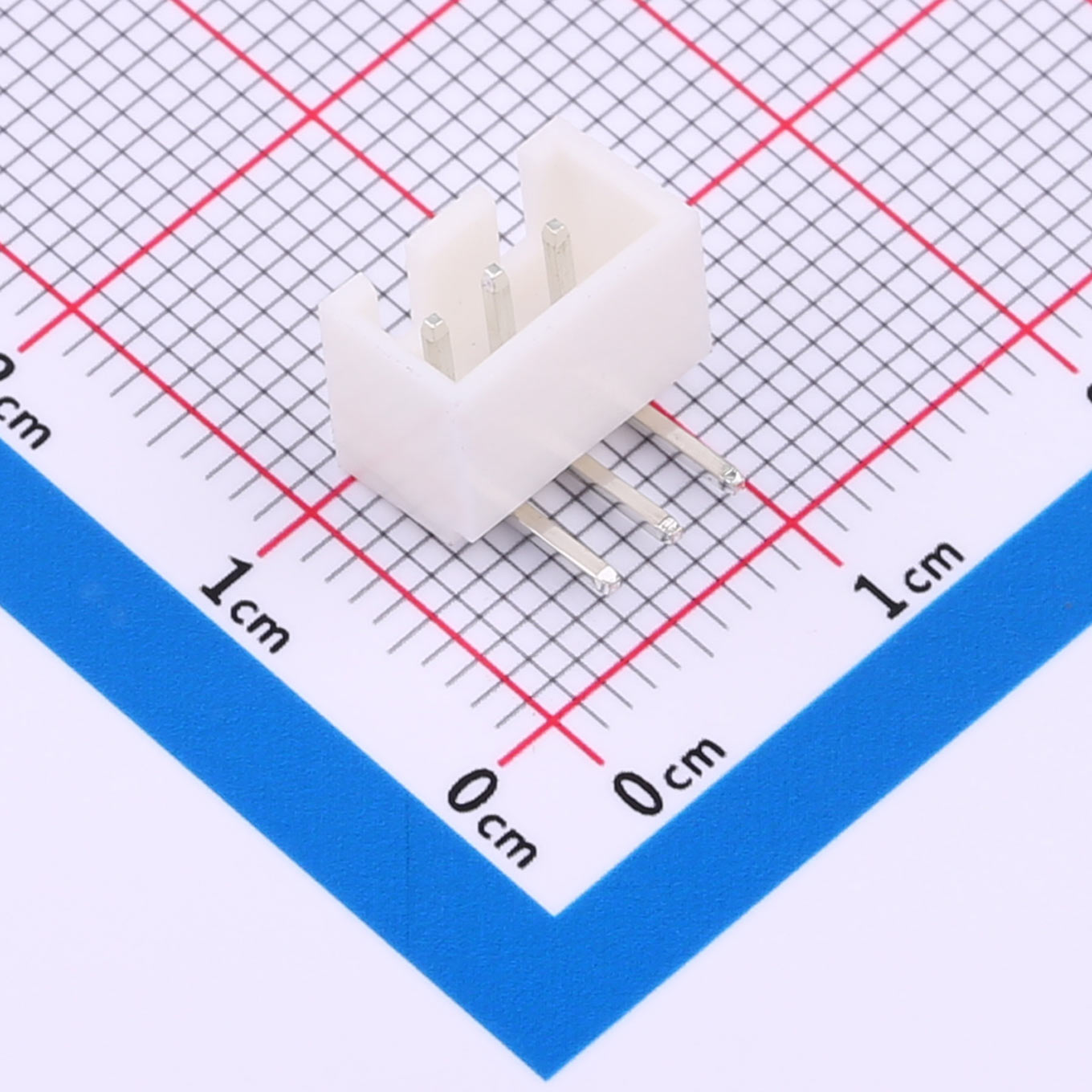

2.54mm Pitch Wire-to-Board Connector 1x3P--KH-A2504-03AW

Product Features● 1x3P right-angle wire-to-board connector● 2.54mm pitch, HA type with latch● Throug

Current Rating: 3A (AC/DC)

Voltage Rating: 250V (AC/DC)

Temperature Range: -25℃ to +85℃

Contact Resistance: 20mΩ Max

Insulation Resistance: 1000MΩ Min

Download Datasheet Online Consultation

Product Details Product Documents Technical Support

Product Features
● 1x3P right-angle wire-to-board connector
● 2.54mm pitch, HA type with latch
● Through-hole mount (P=2.5mm)
● Tin-plated pins, white housing

Product Benefits
● Simple design for basic data/power paths
● Compact and durable structure
● Locking feature resists disconnects
● Minimal board footprint
● Great for entry-level or educational kits

Product Applications
● ON/OFF switch circuits
● Low-voltage power connectors
● DIY maker and robotics kits
● LED toggle controllers

Name

Title

Description

KH-A2504-03AW.pdf

Datasheet
