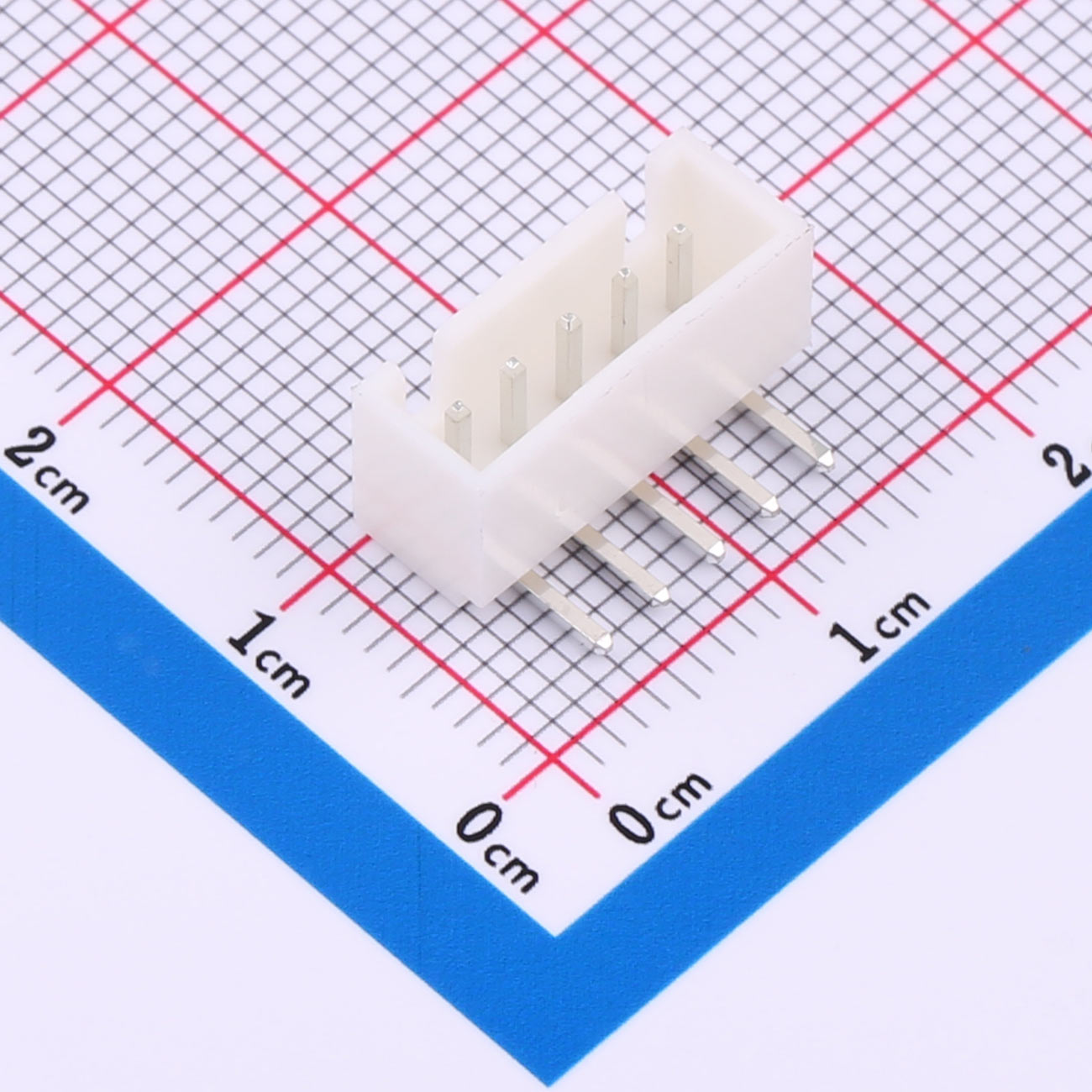

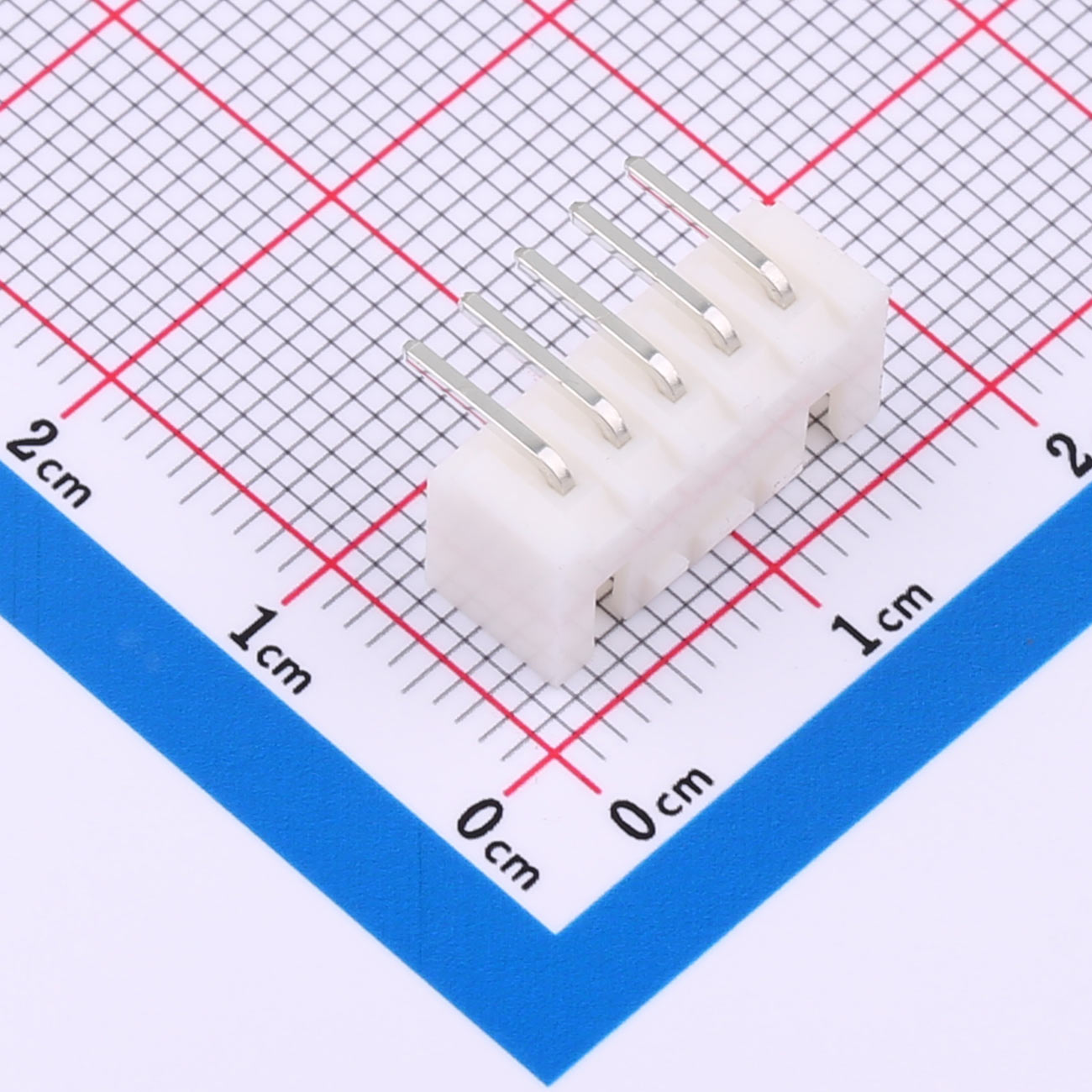

2.54mm Pitch Wire-to-Board Connector 1x5P--KH-A2504-05AW

Product Features● Wire-to-board male header, 1x5P● 2.54mm spacing, HA bent pins with latch● White ho

Current Rating: 3A (AC/DC)

Voltage Rating: 250V (AC/DC)

Temperature Range: -25℃ to +85℃

Contact Resistance: 20mΩ Max

Insulation Resistance: 1000MΩ Min

Download Datasheet Online Consultation

Product Details Product Documents Technical Support

Product Features
● Wire-to-board male header, 1x5P
● 2.54mm spacing, HA bent pins with latch
● White housing, through-hole type
● RoHS compliant materials

Product Benefits
● Perfect for basic signal lines
● Strong latch retention for rugged use
● Compact profile for handheld devices
● Reliable mechanical connection
● Easy integration in custom projects

Product Applications
● Low-power controller boards
● Digital switch interfaces
● Portable sensor arrays
● Signal routing PCBs
