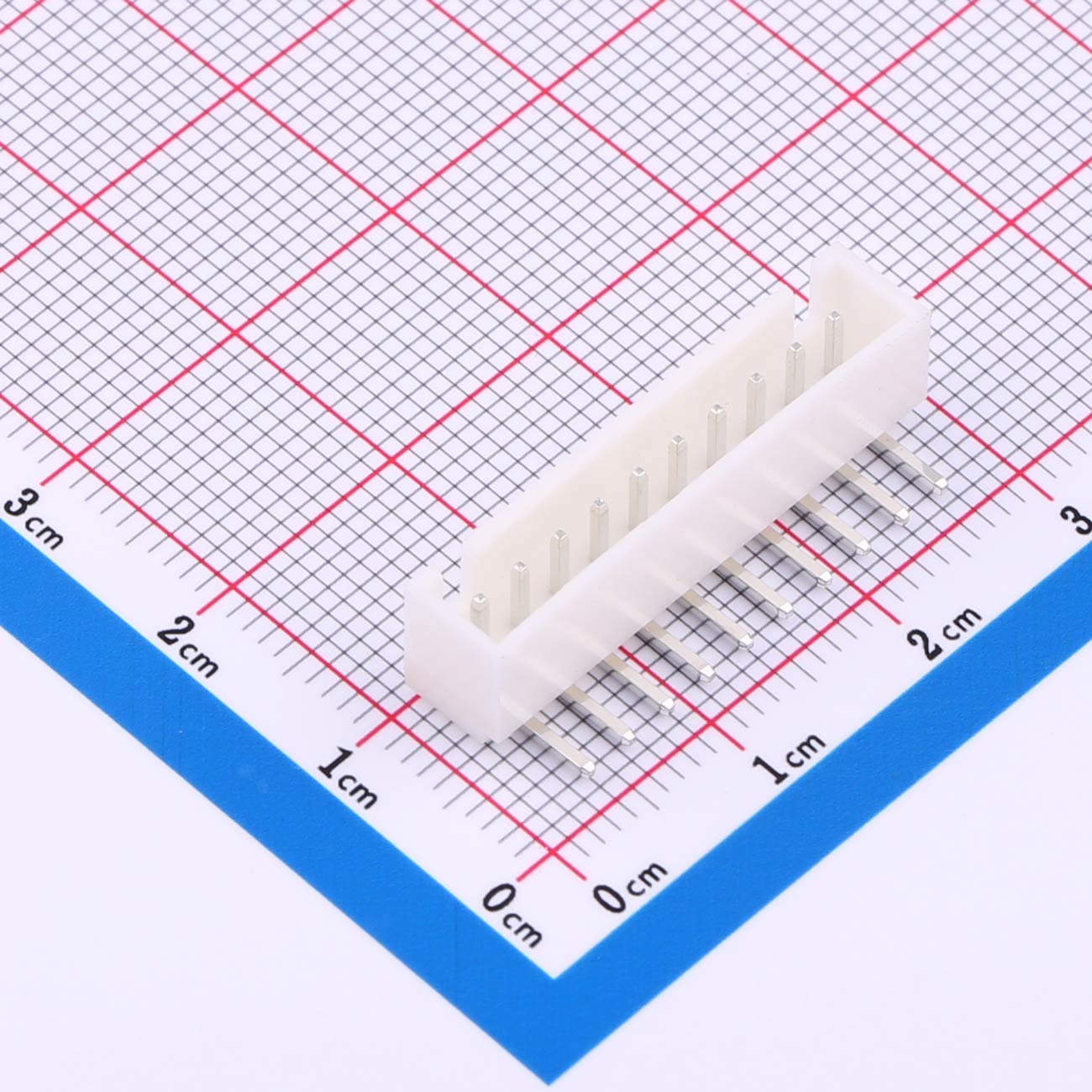

2.54mm Pitch Wire-to-Board Connector 1x10P--KH-A2504-10AW
Product Features● 2.54mm pitch wire-to-board male connector● 1x10P HA type with right-angle latch pi
Current Rating: 3A (AC/DC)
Voltage Rating: 250V (AC/DC)
Temperature Range: -25℃ to +85℃
Contact Resistance: 20mΩ Max
Insulation Resistance: 1000MΩ Min
Product Features
● 2.54mm pitch wire-to-board male connector
● 1x10P HA type with right-angle latch pins
● P=2.5mm through-hole mount
● Tin-plated contact pins
● White insulating housing
● Delivered in bag packaging
Product Benefits
● Ideal for decoders and power lines
● Right-angle pins support side-exit cable routing
● Stable pin contact reduces signal loss
● Secure retention through mechanical latch
● Flexible usage across electronics categories
Product Applications
● Development kits and learning platforms
● Embedded power control units
● Smart appliance PCB interfaces
● Modular test systems
