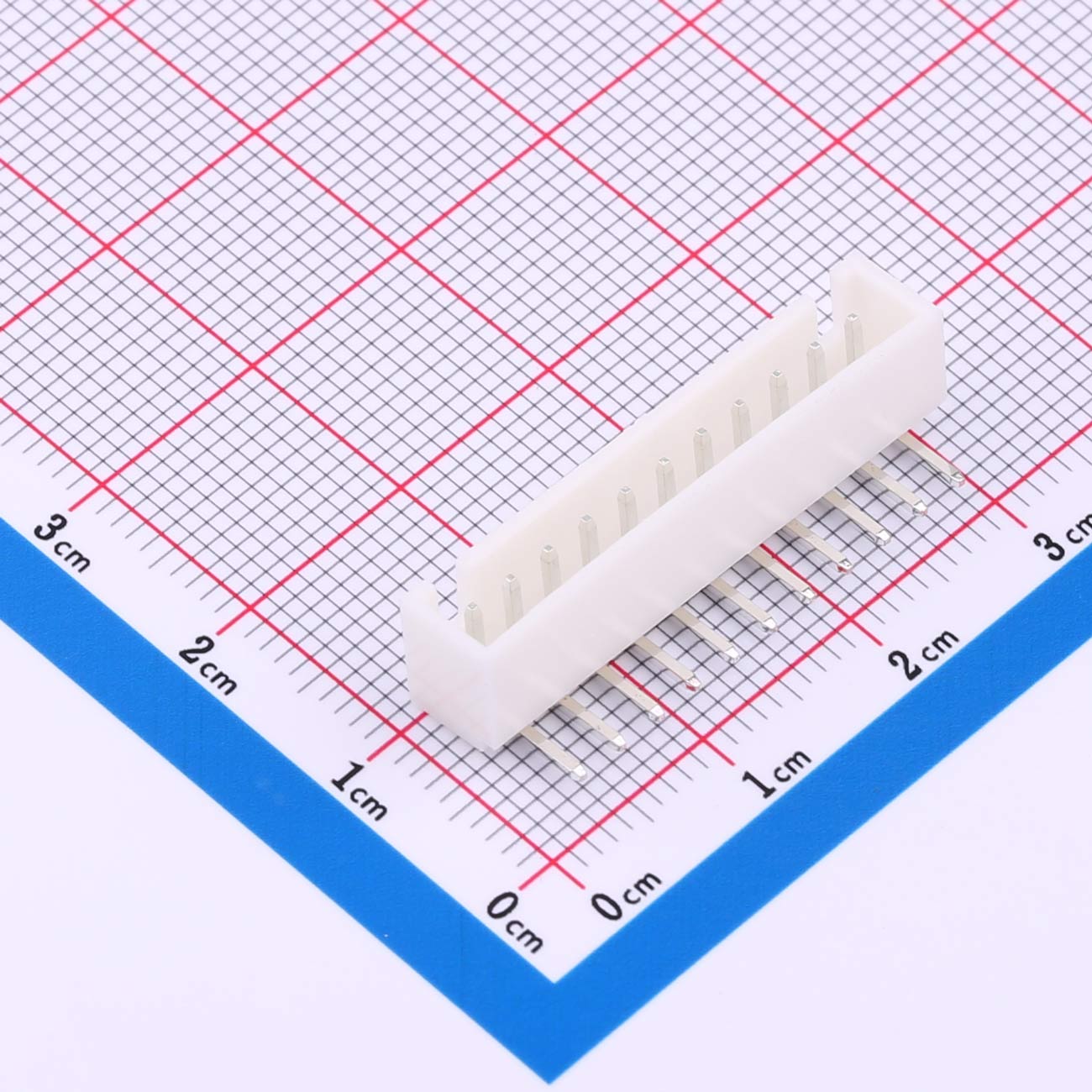

2.54mm Pitch Wire-to-Board Connector 1x11P--KH-A2504-11AW
Product Features● 1x11P configuration, 2.54mm pitch● Wire-to-board male header with right-angle HA p
Current Rating: 3A (AC/DC)
Voltage Rating: 250V (AC/DC)
Temperature Range: -25℃ to +85℃
Contact Resistance: 20mΩ Max
Insulation Resistance: 1000MΩ Min
Product Features
● 1x11P configuration, 2.54mm pitch
● Wire-to-board male header with right-angle HA pins
● Latching system for cable security
● Through-hole mount, 2.5mm spacing
● Tin-plated contact surfaces
● White, flame-retardant housing
Product Benefits
● Compact form factor for moderate pin requirements
● Right-angle layout aids board edge access
● Secure mating reduces maintenance risk
● Easy to integrate into custom PCB designs
● Long-lasting mechanical performance
Product Applications
● Robotics I/O interface boards
● Low-profile communication hardware
● Motion control PCBs
● Motor driver interfaces
