2.54mm Pitch Wire-to-Board Connector 1x13P--KH-A2504-13AW

English

Home Product Categories Data Signal Connectors Board-mount Connectors Wire-to-Board Connector

Show 3D Model

Product Features● Wire-to-board male header, 2.54mm pitch● 1x13P, HA type, right-angle with locking

Current Rating: 3A (AC/DC)

Voltage Rating: 250V (AC/DC)

Temperature Range: -25℃ to +85℃

Contact Resistance: 20mΩ Max

Insulation Resistance: 1000MΩ Min

Download Datasheet Online Consultation

Product Details Product Documents Technical Support

Product Features
● Wire-to-board male header, 2.54mm pitch

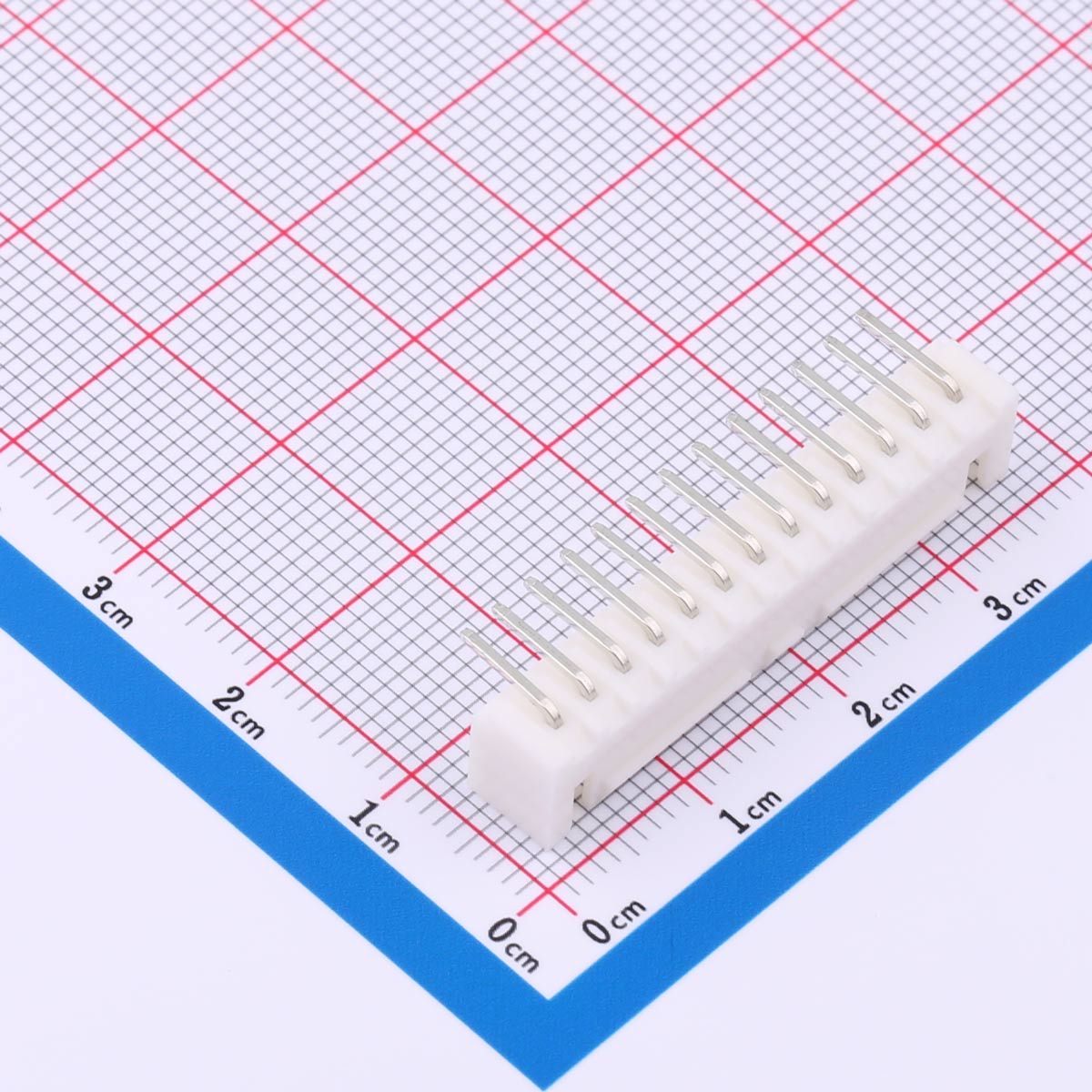

● 1x13P, HA type, right-angle with locking latch
● P=2.5mm through-hole solder pins
● White thermoplastic UL94V-0 housing
● Tin-plated contacts for consistent performance
● Secure and reliable mating system

Product Benefits
● Efficient design for odd-pin-count applications
● Mechanical locking ensures cable retention
● High reliability in frequent insertion environments
● Solder-friendly for stable PCB mounting
● Clean signal contact with minimal resistance

Product Applications
● Sensor array controller boards
● Embedded communication interfaces
● Medical monitoring devices
● Mid-range automation control panels

Name

Title

Description

KH-A2504-13AW.pdf

Datasheet

Support

Support

If you need design/technical support, please let us know and fill inResponse FormWe will get back to you as soon as possible.
