2.54mm Pitch Wire-to-Board Connector 1x15P--KH-A2504-15AW

English

Home Product Categories Data Signal Connectors Board-mount Connectors Wire-to-Board Connector

Show 3D Model

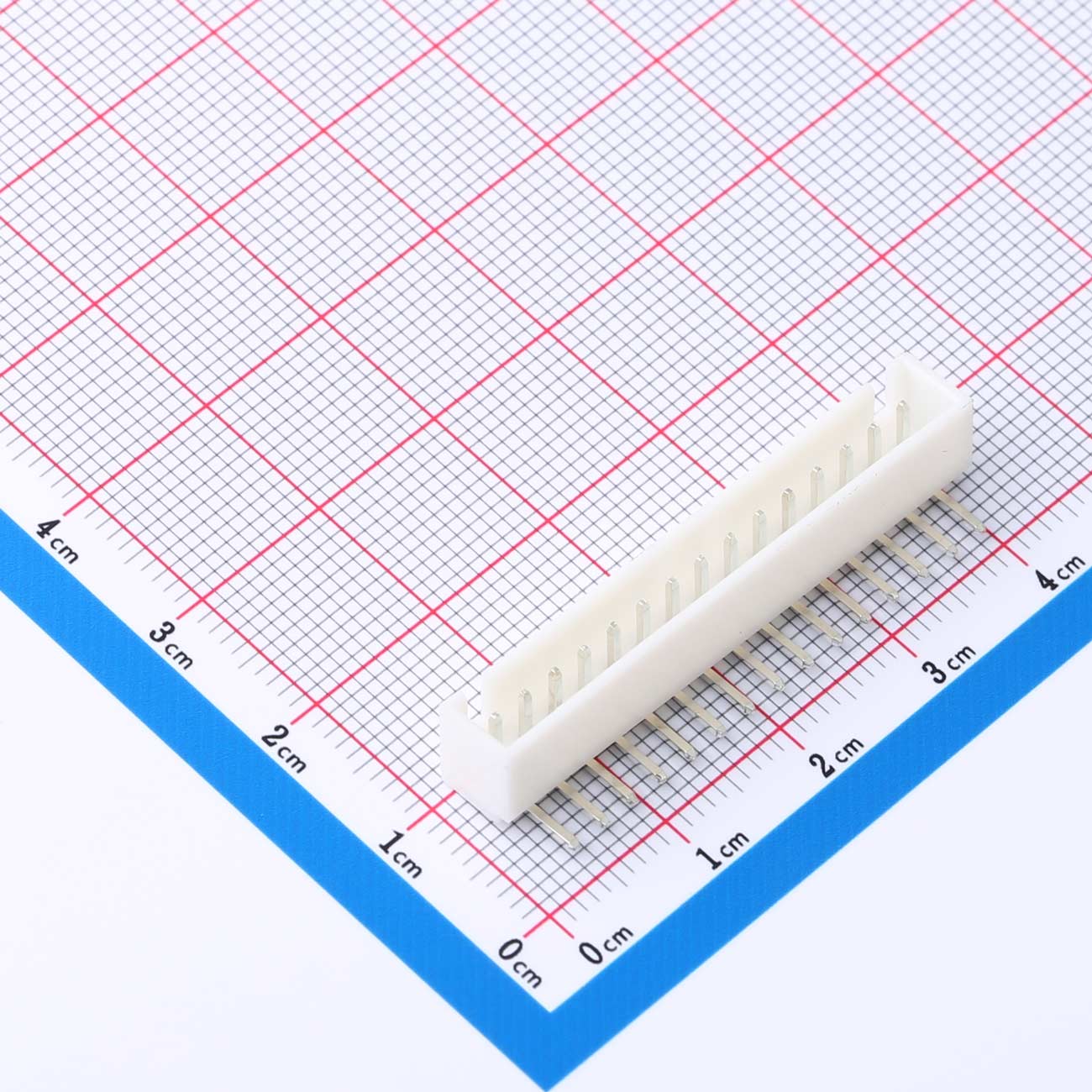

Product Features● 2.54mm pitch wire-to-board male header with latch● 1x15P configuration, right-angl

Current Rating: 3A (AC/DC)

Voltage Rating: 250V (AC/DC)

Temperature Range: -25℃ to +85℃

Contact Resistance: 20mΩ Max

Insulation Resistance: 1000MΩ Min

Download Datasheet Online Consultation

Product Details Product Documents Technical Support

Product Features
● 2.54mm pitch wire-to-board male header with latch
● 1x15P configuration, right-angle (HA type) pins
● White thermoplastic housing, high-temperature resistant
● Through-hole mounting, P=2.5mm
● Tin-plated brass contacts for excellent conductivity
● Locking latch for secure mating
● Packaged in protective bag

Product Benefits
● Designed for medium to high signal density applications
● Right-angle design reduces vertical space usage
● Secure mechanical connection with latch structure
● Robust through-hole interface ensures long-term stability
● Compatible with standard 2.54mm cable connectors
● Reliable signal integrity and mechanical fit

Product Applications
● Industrial control interface boards
● Measurement and testing equipment
● Multi-channel sensor systems
● Communication controller modules

Name

Title

Description

KH-A2504-15AW.pdf

Datasheet

Support

Support

If you need design/technical support, please let us know and fill inResponse FormWe will get back to you as soon as possible.
