2.54mm Pitch Wire-to-Board Connector 1x16P--KH-A2504-16AW

English

Home Product Categories Data Signal Connectors Board-mount Connectors Wire-to-Board Connector

Show 3D Model

Product Features● 2.54mm pitch wire-to-board male header● Right-angle HA type pins with locking latc

Current Rating: 3A (AC/DC)

Voltage Rating: 250V (AC/DC)

Temperature Range: -25℃ to +85℃

Contact Resistance: 20mΩ Max

Insulation Resistance: 1000MΩ Min

Download Datasheet Online Consultation

Product Details Product Documents Technical Support

Product Features

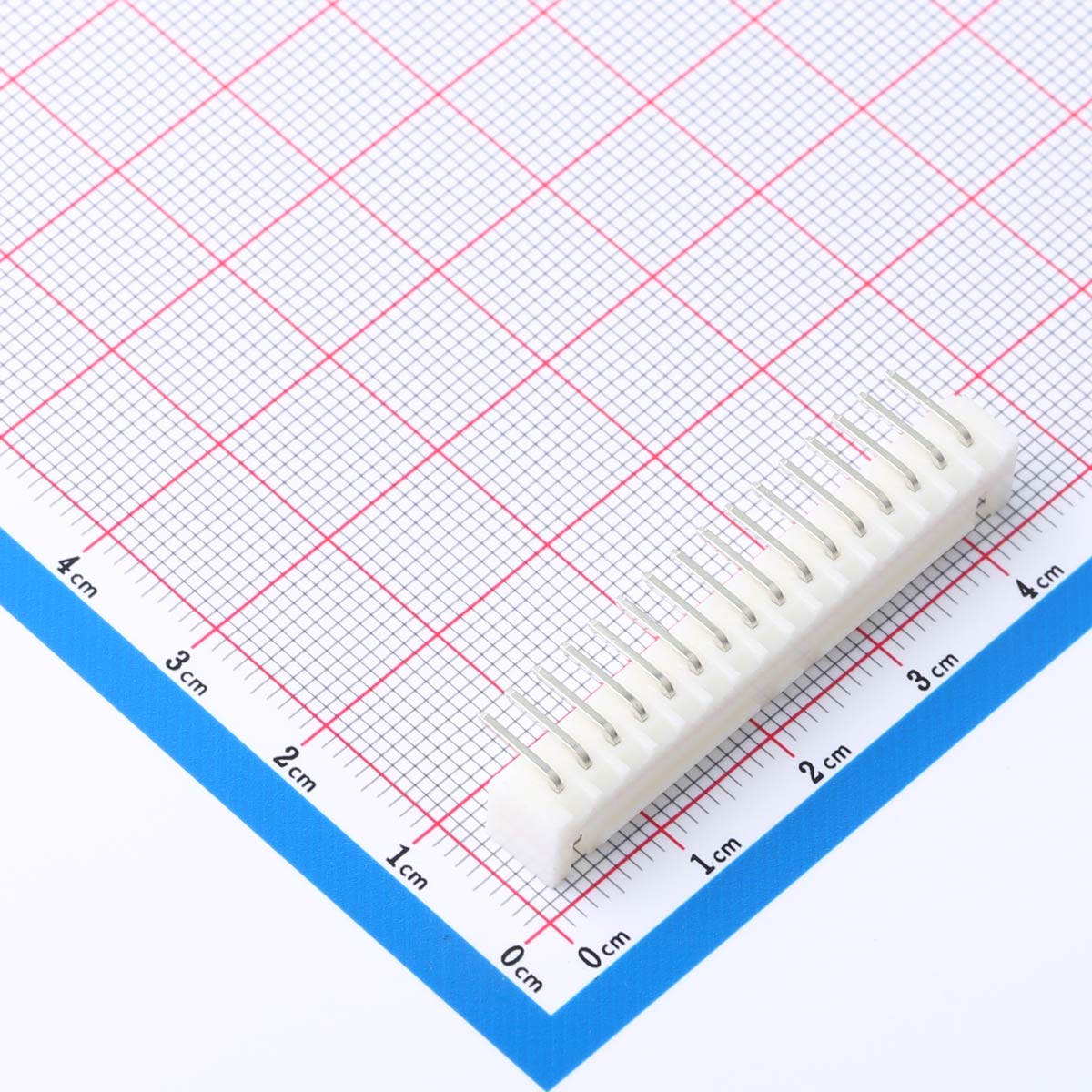

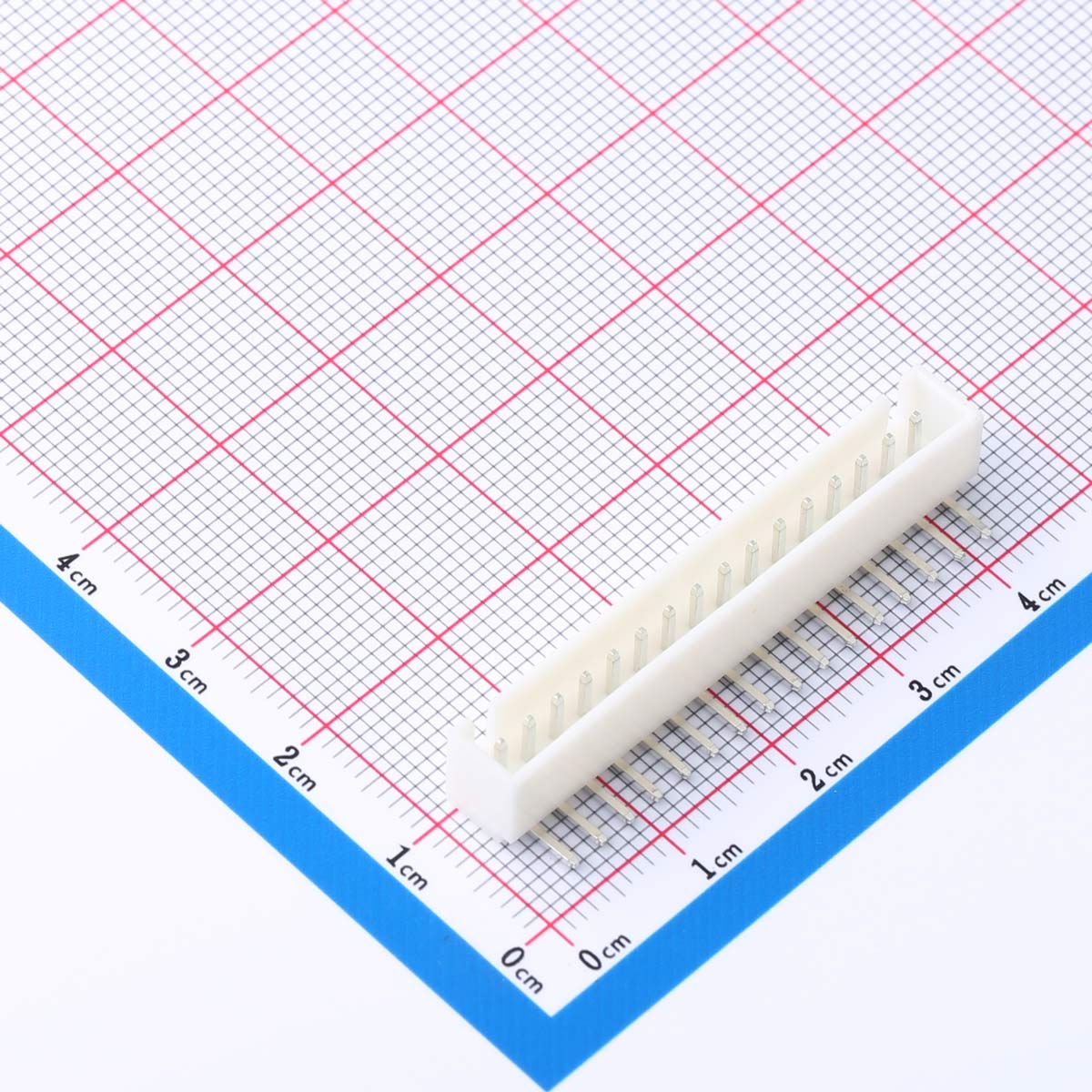

● 2.54mm pitch wire-to-board male header
● Right-angle HA type pins with locking latch
● Single row, 16 positions (1x16P)
● Through-hole mounting (P=2.5mm)
● White high-temperature plastic housing
● Secure mechanical latch for stable mating
● Durable metal pins with tin plating
● Supplied in bag packaging

Product Benefits
● Space-saving right-angle design for compact PCBs
● Locking latch ensures reliable wire-to-board connection
● Easy soldering via standard through-hole pins
● Strong retention prevents accidental disconnection
● Suitable for automated or manual PCB assembly
● Compatible with standard 2.54mm female connectors

Product Applications
● Consumer electronics wiring interface
● Industrial control system PCBs
● Communication and networking equipment
● Home appliance controller boards
● Embedded systems and DIY electronics
● Power supply modules and adapters

Name

Title

Description

KH-A2504-16AW.pdf

Datasheet
