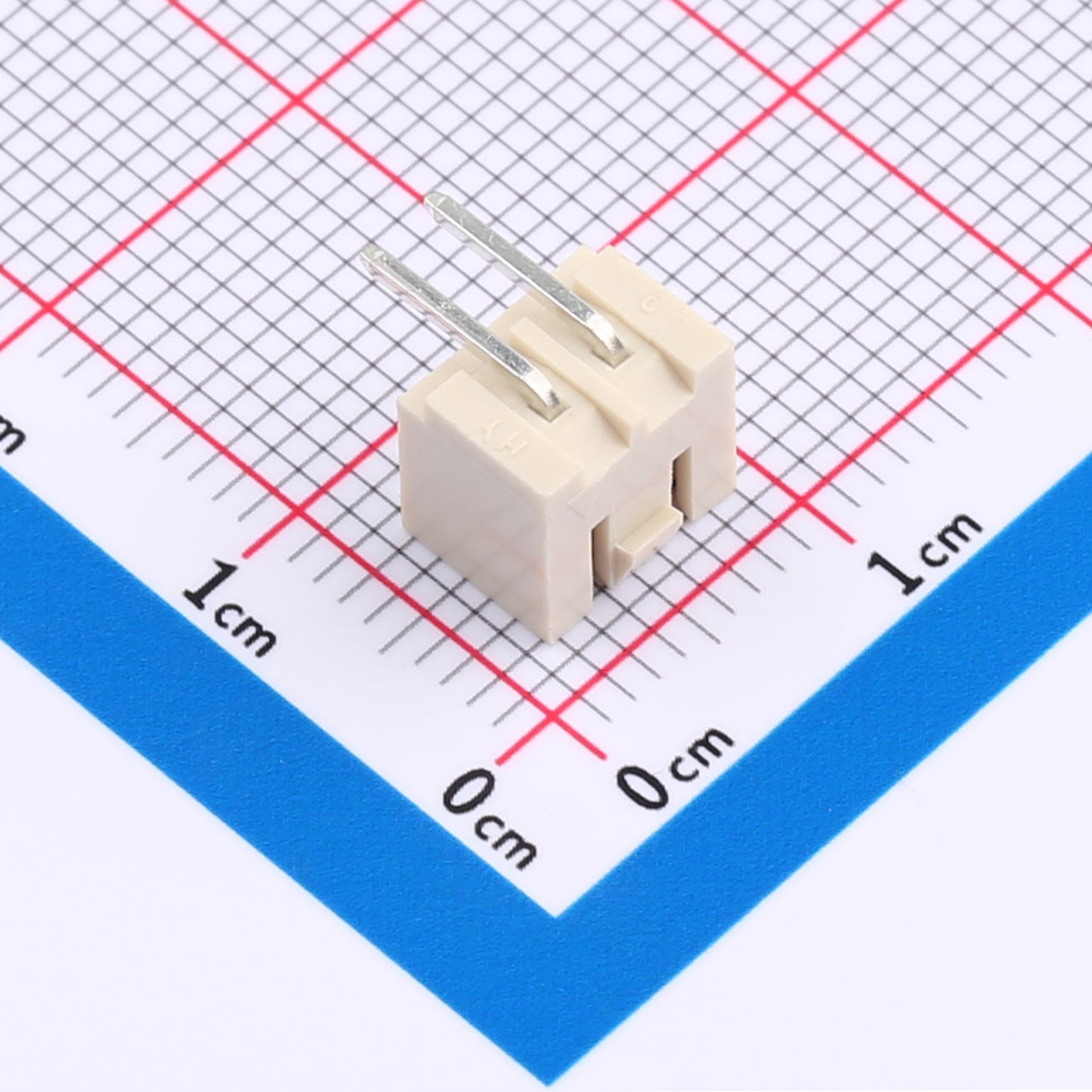

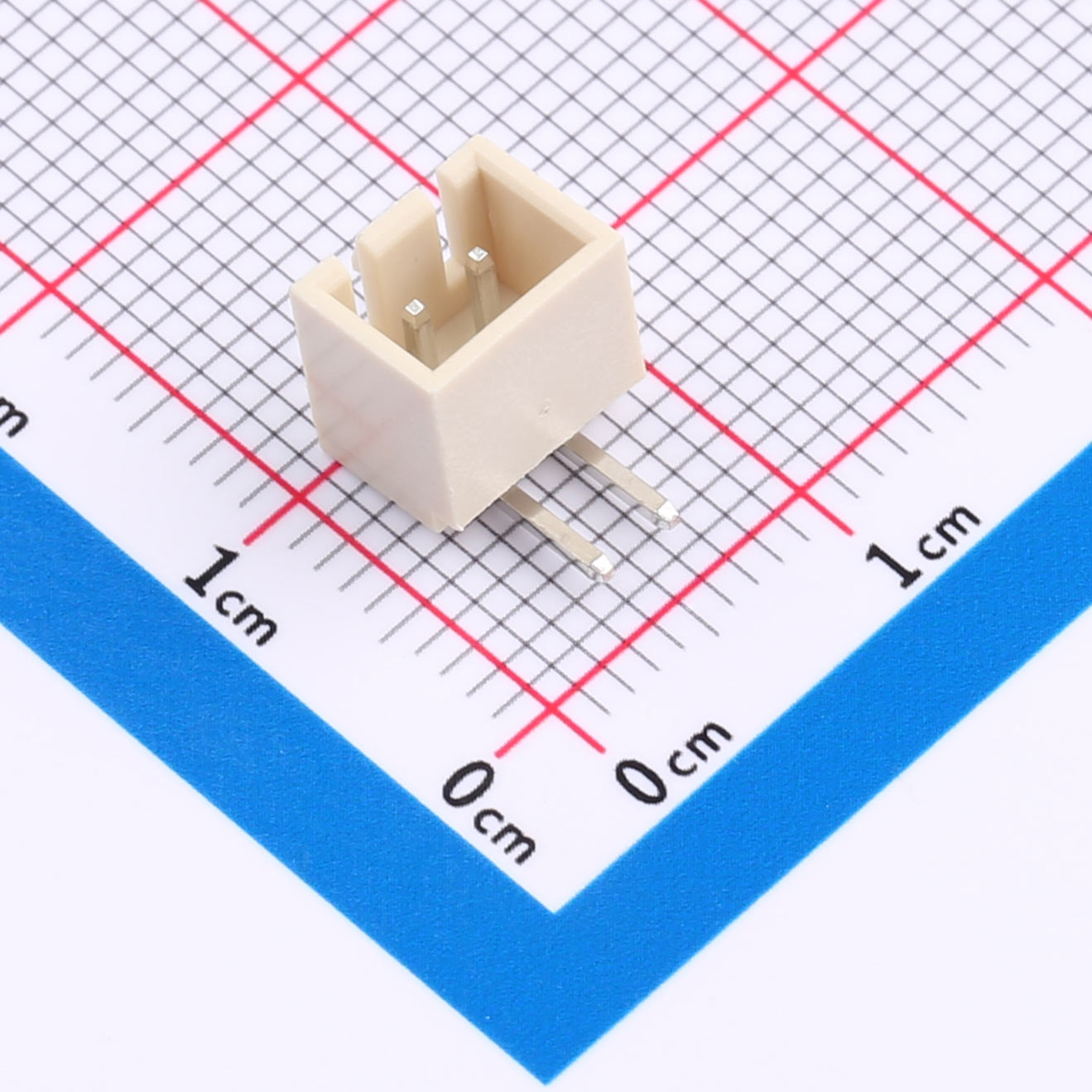

2.54mm Pitch Wire-to-Board Connector 1x2P--KH-A2504-02AW-M

English

Home Product Categories Data Signal Connectors Board-mount Connectors Wire-to-Board Connector

Show 3D Model

Product Features● 3A current rating● 250V AC/DC voltage rating● -25℃ to +85℃ temperature range● 20mΩ

Current Rating: 3A AC/DC

Voltage Rating: 250V AC/DC

Temperature Range: -25℃ to +85℃

Contact Resistance: 20mΩ Max

Insulation Resistance: 1000MΩ Min

Download Datasheet Online Consultation

Product Details Product Documents Technical Support

Product Features
● 3A current rating
● 250V AC/DC voltage rating
● -25℃ to +85℃ temperature range
● 20mΩ max contact resistance
● 1000MΩ min insulation resistance
● Right-angle mounting with locking feature

Product Benefits
● Efficient power handling
● Flexible voltage support
● Reliable operation in varied environments
● Low contact resistance for improved performance
● High insulation resistance for protection
● Secure and durable connections

Product Applications
● Consumer electronics
● Industrial devices
● Automotive electronics
● Lighting systems
● Communication equipment
● Power supply circuits

Name

Title

Description

KH-A2504-02AW-M.pdf

Datasheet
