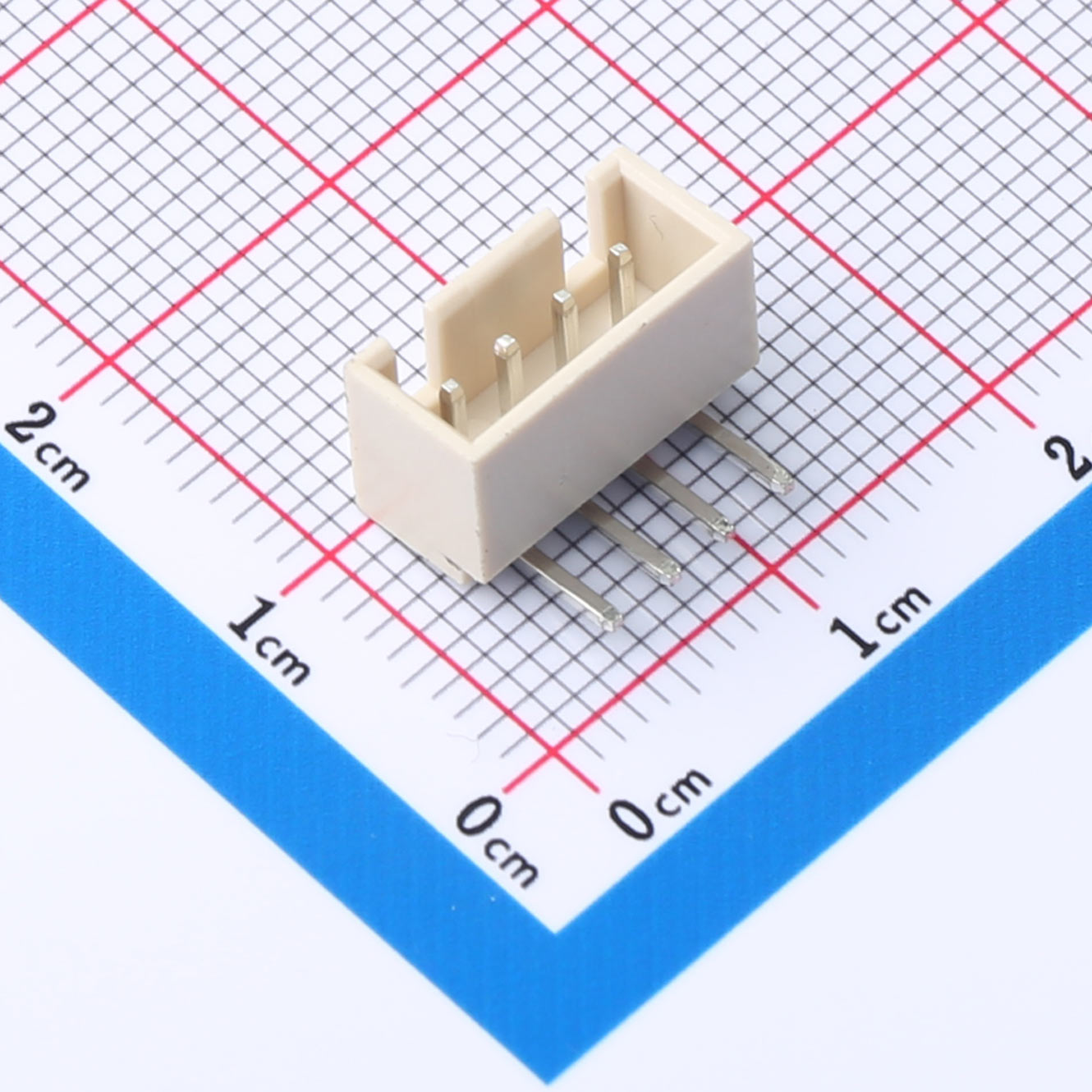

2.54mm Pitch Wire-to-Board Connector 1x4P--KH-A2504-04AW-M

English

Home Product Categories Data Signal Connectors Board-mount Connectors Wire-to-Board Connector

Show 3D Model

Product Features● 3A current rating● 250V AC/DC voltage rating● -25℃ to +85℃ temperature range● 20mΩ

Current Rating: 3A AC/DC

Voltage Rating: 250V AC/DC

Temperature Range: -25℃ to +85℃

Contact Resistance: 20mΩ Max

Insulation Resistance: 1000MΩ Min

Download Datasheet Online Consultation

Product Details Product Documents Technical Support

Product Features
● 3A current rating
● 250V AC/DC voltage rating
● -25℃ to +85℃ temperature range
● 20mΩ max contact resistance
● 1000MΩ min insulation resistance

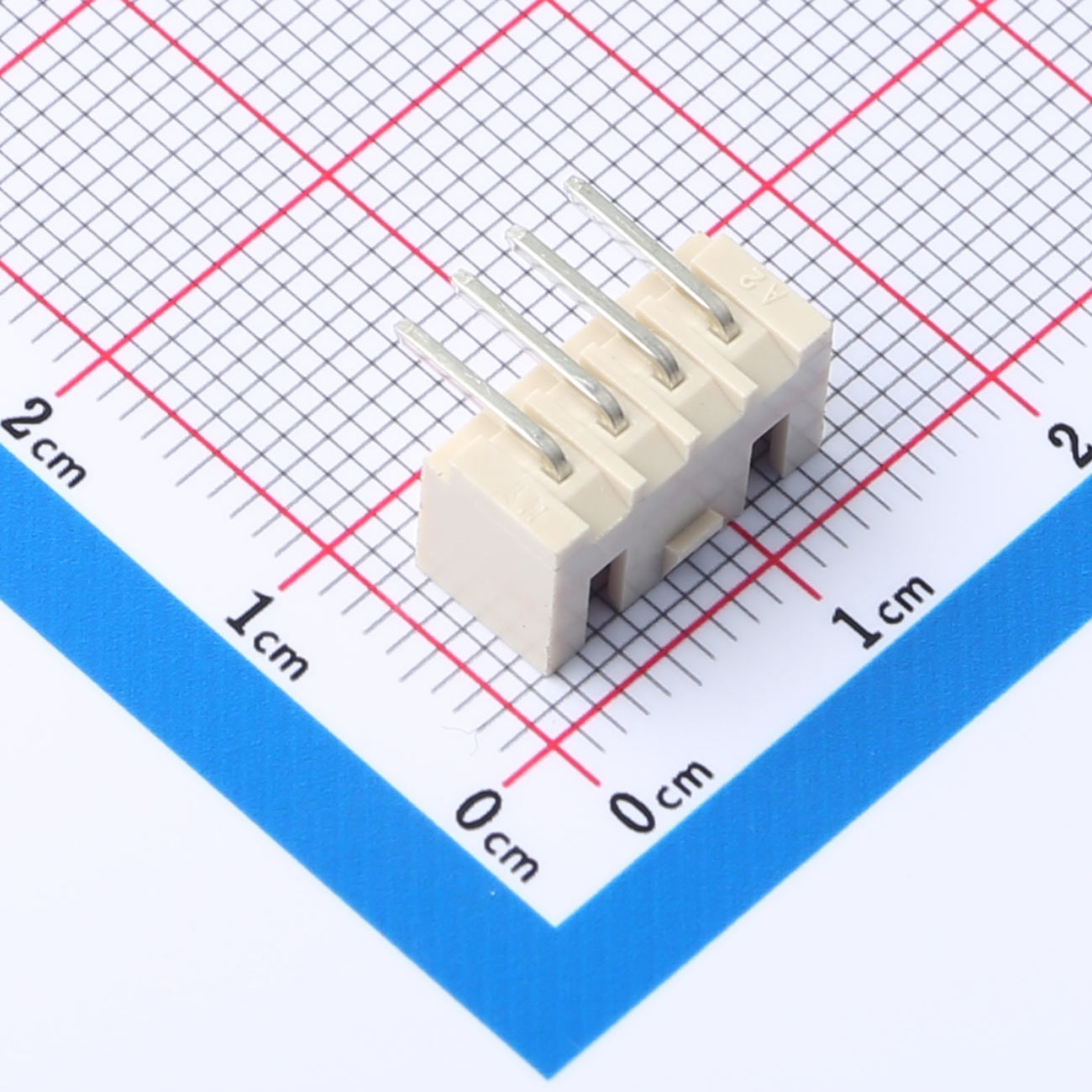

● Right-angle mounting with locking latch

Product Benefits
● Stable and reliable current flow
● Wide voltage compatibility
● Tolerant to temperature extremes
● Low resistance for enhanced efficiency
● High insulation resistance for safety
● Secure locking for stable connection

Product Applications
● Audio equipment
● Industrial machinery
● Automotive electronics
● Home appliances
● LED systems
● Communication devices

Name

Title

Description

KH-A2504-04AW-M.pdf

Datasheet
