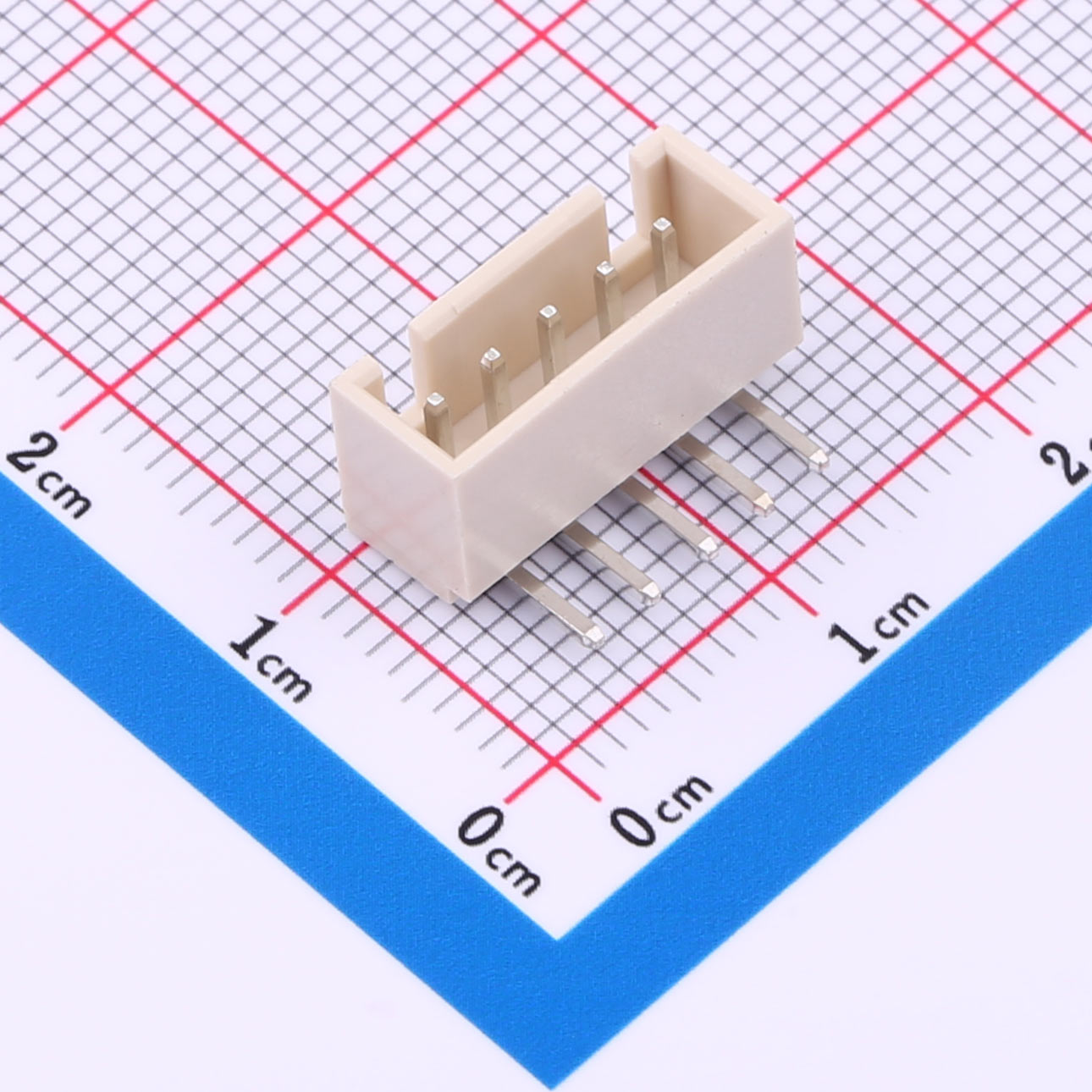

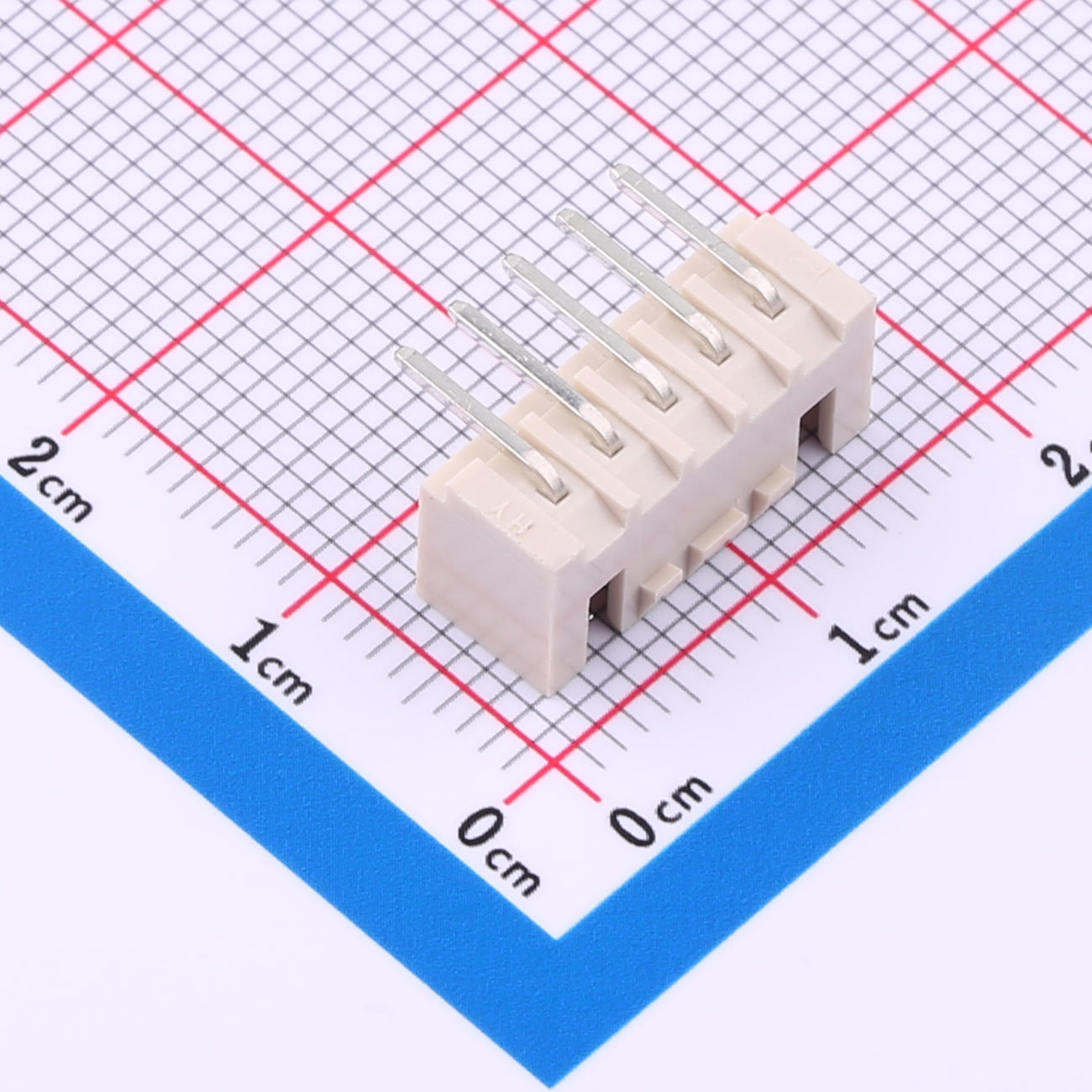

2.54mm Pitch Wire-to-Board Connector 1x5P--KH-A2504-05AW-M

English

Home Product Categories Data Signal Connectors Board-mount Connectors Wire-to-Board Connector

Show 3D Model

Product Features● 3A current rating● 250V AC/DC voltage rating● -25℃ to +85℃ temperature range● 20mΩ

Current Rating: 3A AC/DC

Voltage Rating: 250V AC/DC

Temperature Range: -25℃ to +85℃

Contact Resistance: 20mΩ Max

Insulation Resistance: 1000MΩ Min

Download Datasheet Online Consultation

Product Details Product Documents Technical Support

Product Features
● 3A current rating
● 250V AC/DC voltage rating
● -25℃ to +85℃ temperature range
● 20mΩ max contact resistance
● 1000MΩ min insulation resistance
● Right-angle design with locking latch

Product Benefits
● Efficient power distribution
● Compatible with various voltage levels
● Operates in harsh environments
● Minimal contact resistance for reliability
● Safe insulation resistance
● Strong and reliable connections

Product Applications
● Consumer electronics
● Industrial control
● Automotive circuits
● Household equipment
● LED lighting
● Telecom systems
