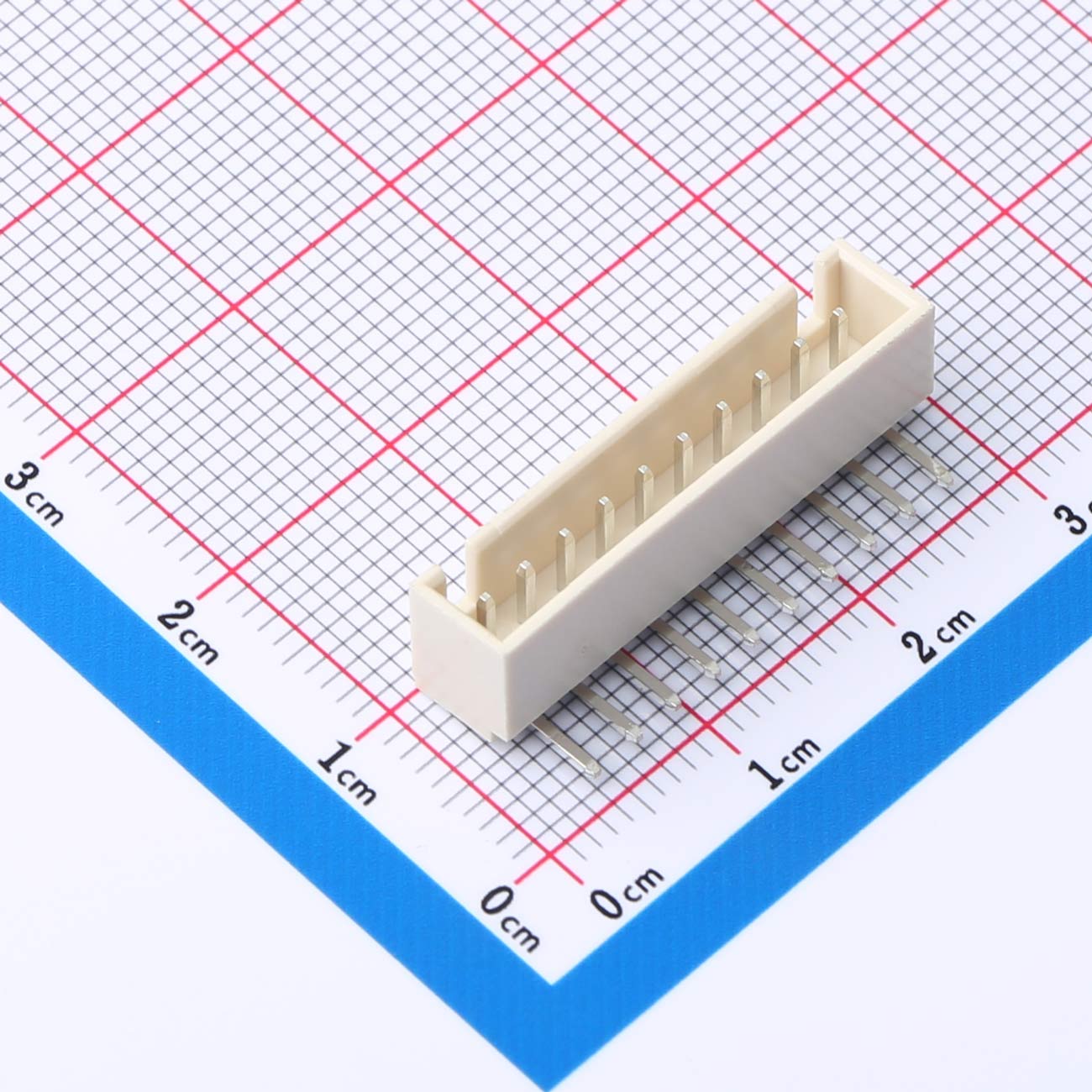

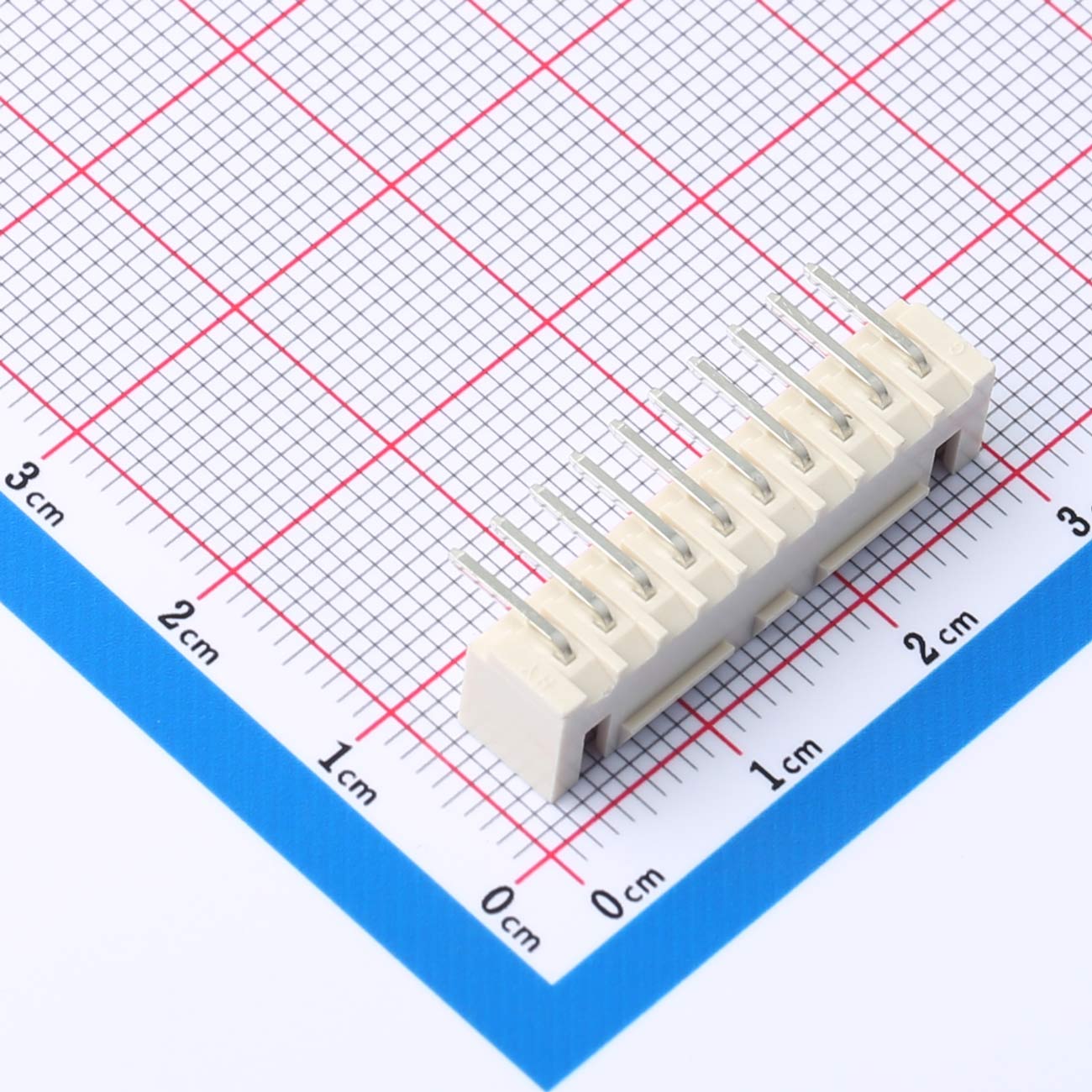

2.54mm Pitch Wire-to-Board Connector 1x10P--KH-A2504-10AW-M

Product Features● 2.54mm pitch● 1x10P single row● Right angle mount● Locking structure● Through hole

Current Rating: 3A AC/DC

Voltage Rating: 250V AC/DC

Temperature Range: -25℃ to +85℃

Contact Resistance: 20mΩ Max

Insulation Resistance: 1000MΩ Min

Download Datasheet Online Consultation

Product Details Product Documents Technical Support

Product Features
● 2.54mm pitch
● 1x10P single row
● Right angle mount
● Locking structure
● Through hole type

Product Benefits
● Space-saving design
● Strong electrical contact
● Simple PCB mounting
● Secure and firm connection
● Quick cable mating

Product Applications
● Wire to board systems
● Consumer electronics
● Industrial control
● Signal transmission
● Embedded systems
