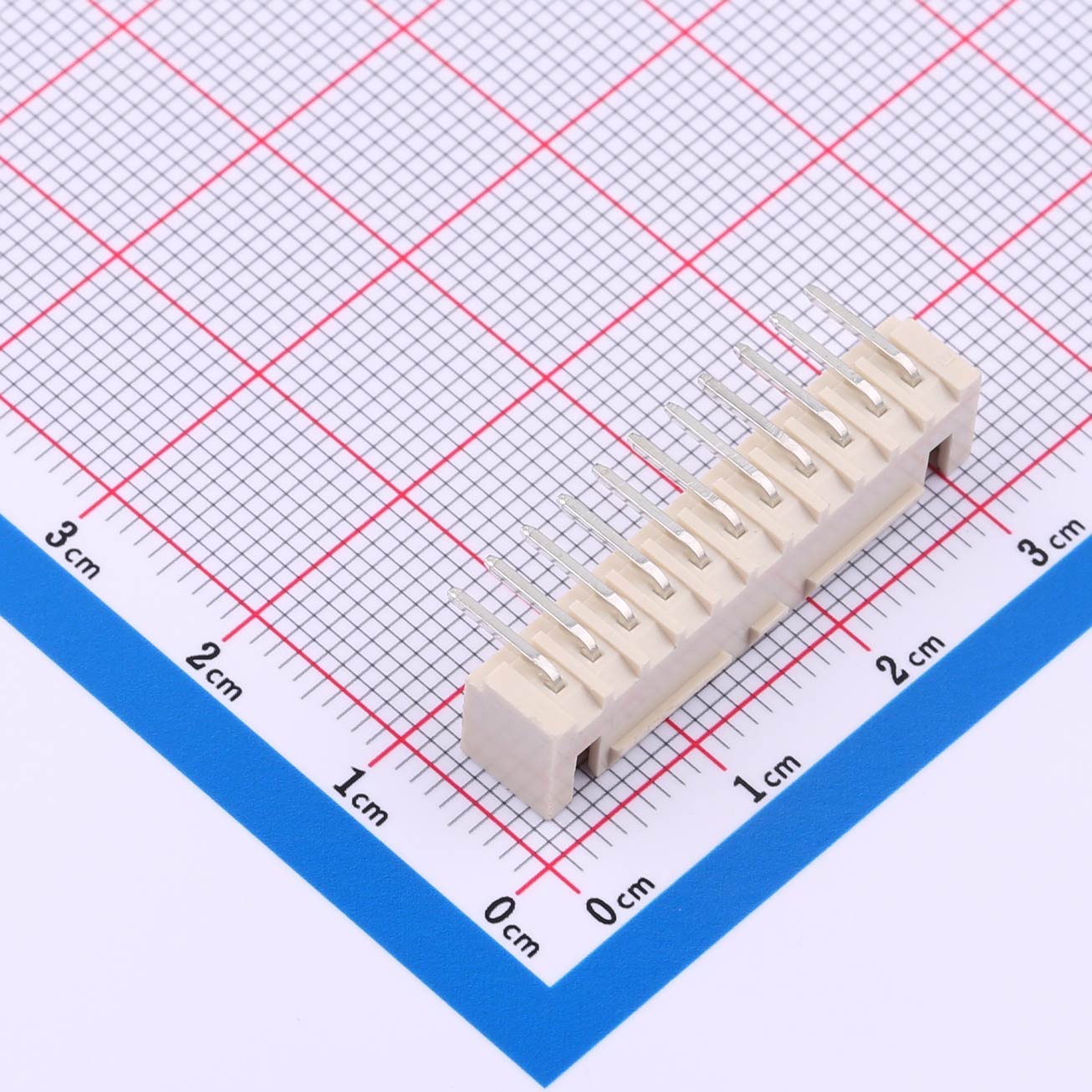

2.54mm Pitch Wire-to-Board Connector 1x11P--KH-A2504-11AW-M

Product Features● 2.54mm pitch● 1x11P single row● Right angle mount● Locking mechanism● Through hole

Current Rating: 3A AC/DC

Voltage Rating: 250V AC/DC

Temperature Range: -25℃ to +85℃

Contact Resistance: 20mΩ Max

Insulation Resistance: 1000MΩ Min

Download Datasheet Online Consultation

Product Details Product Documents Technical Support

Product Features
● 2.54mm pitch
● 1x11P single row
● Right angle mount
● Locking mechanism
● Through hole type

Product Benefits
● Compact and efficient
● Stable connection
● Easy installation
● Reliable signal transfer
● Quick assembly

Product Applications
● Wire to board connections
● Consumer electronics
● Industrial devices
● Communication systems
● DIY projects

Name

Title

Description

KH-A2504-11AW-M.pdf

Datasheet
