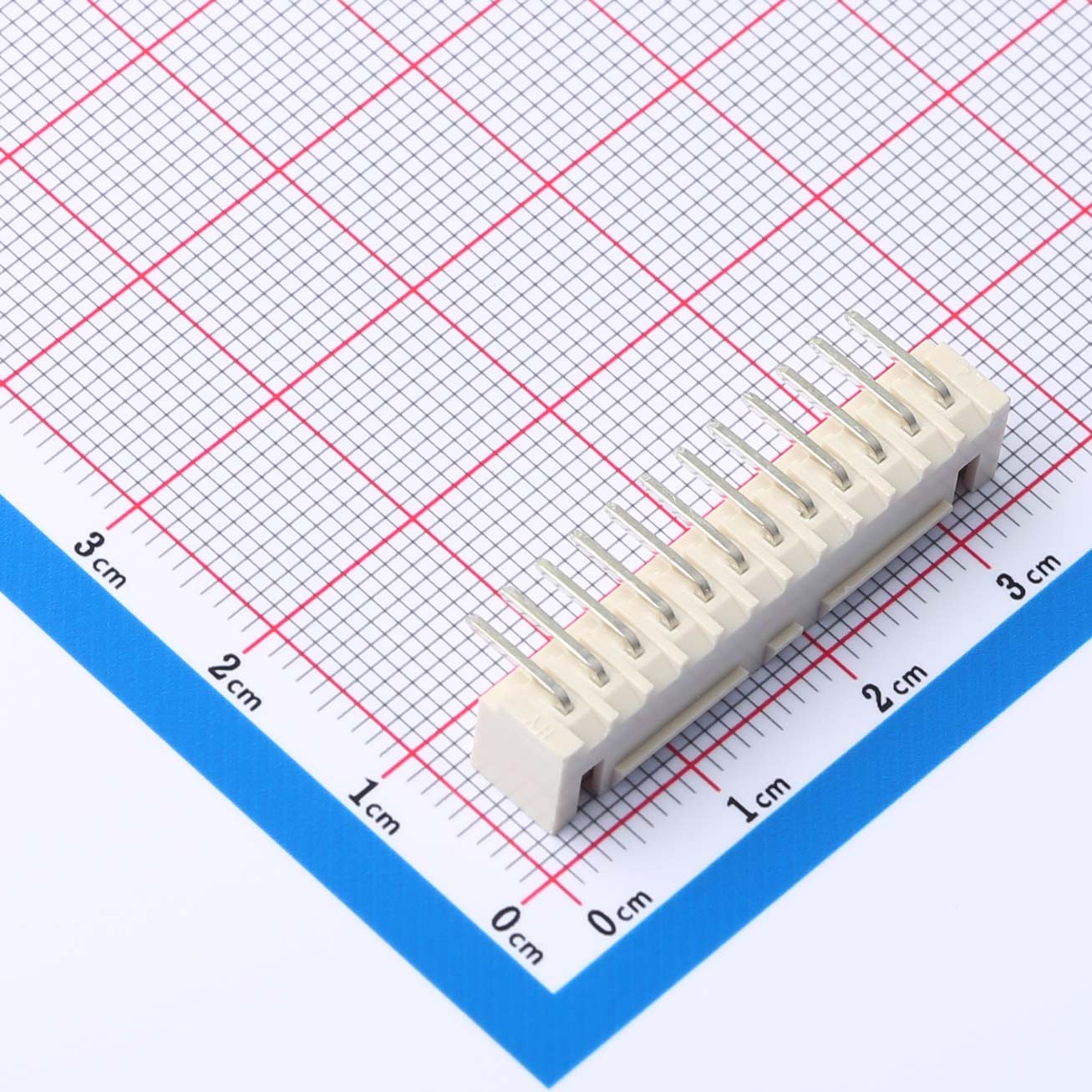

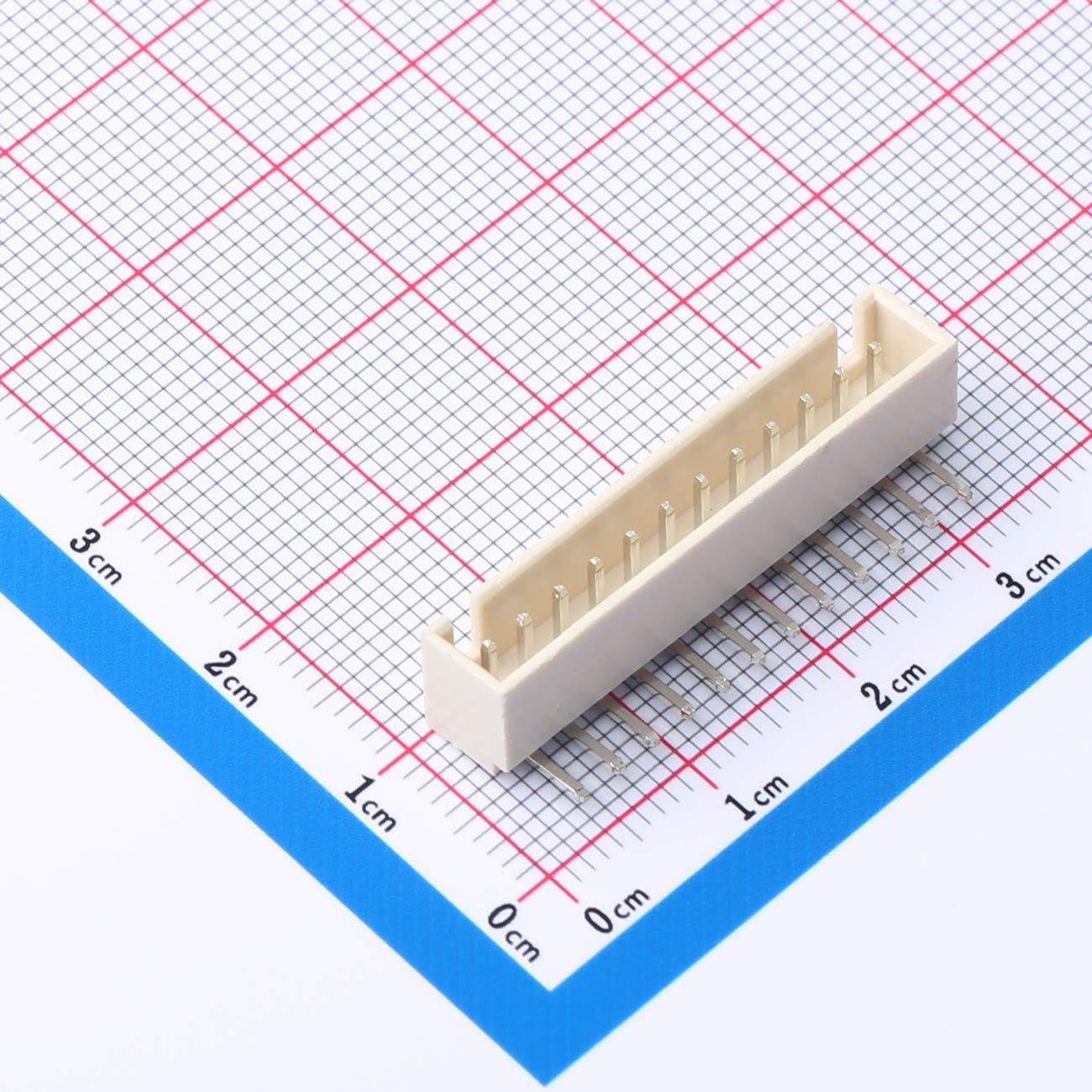

2.54mm Pitch Wire-to-Board Connector 1x12P--KH-A2504-12AW-M
Product Features● 2.54mm pitch● 1x12P single row● Right angle mount● Locking mechanism● Through hole
Current Rating: 3A AC/DC
Voltage Rating: 250V AC/DC
Temperature Range: -25℃ to +85℃
Contact Resistance: 20mΩ Max
Insulation Resistance: 1000MΩ Min
Product Features
● 2.54mm pitch
● 1x12P single row
● Right angle mount
● Locking mechanism
● Through hole type
Product Benefits
● Easy PCB mounting
● Secure connection
● Space efficient
● Reliable electrical performance
● Quick and simple assembly
Product Applications
● Wire to board connections
● Consumer electronics
● Industrial devices
● Signal transmission
● DIY projects
Name
Title
Description
Datasheet
Support
Support
If you need design/technical support, please let us know and fill inResponse FormWe will get back to you as soon as possible.
Longevity
The Longevity Program is aimed to provide our customers information from time to time about the expected time that our products can be ordered. The NLP is reviewed and updated regularly by our executive Management Team. View ourlongevity programhere.
