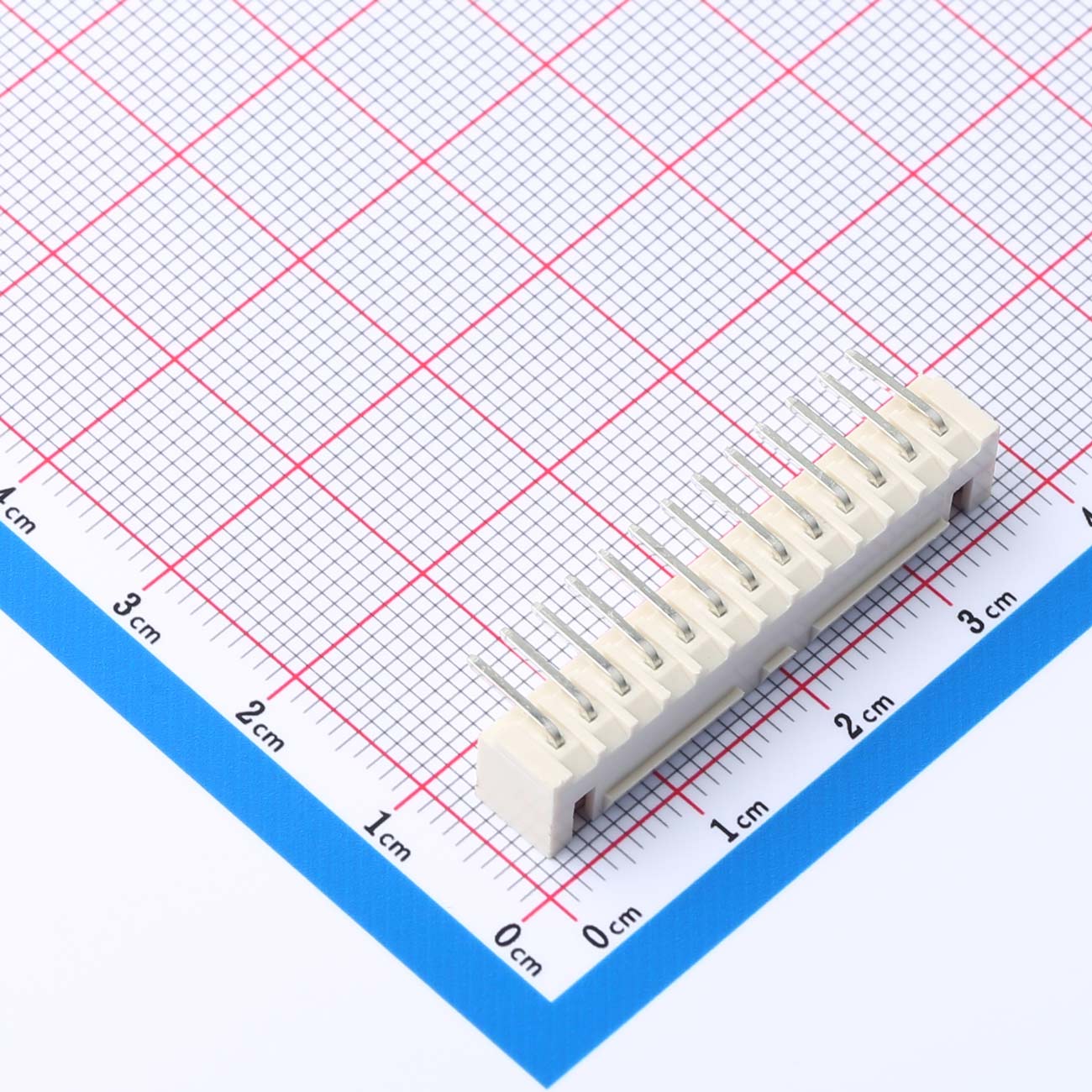

2.54mm Pitch Wire-to-Board Connector 1x13P--KH-A2504-13AW-M

Product Features● 2.54mm pitch● 1x13P single row● Right angle mount● Locking feature● Through hole t

Current Rating: 3A AC/DC

Voltage Rating: 250V AC/DC

Temperature Range: -25℃ to +85℃

Contact Resistance: 20mΩ Max

Insulation Resistance: 1000MΩ Min

Download Datasheet Online Consultation

Product Details Product Documents Technical Support

Product Features
● 2.54mm pitch
● 1x13P single row
● Right angle mount
● Locking feature
● Through hole type

Product Benefits
● Compact design
● Secure connection
● Easy to mount
● Reliable electrical contact
● Quick installation

Product Applications
● Wire to board
● Consumer devices
● Industrial control
● Signal transmission
● Prototyping

Name

Title

Description

KH-A2504-13AW-M.pdf

Datasheet
