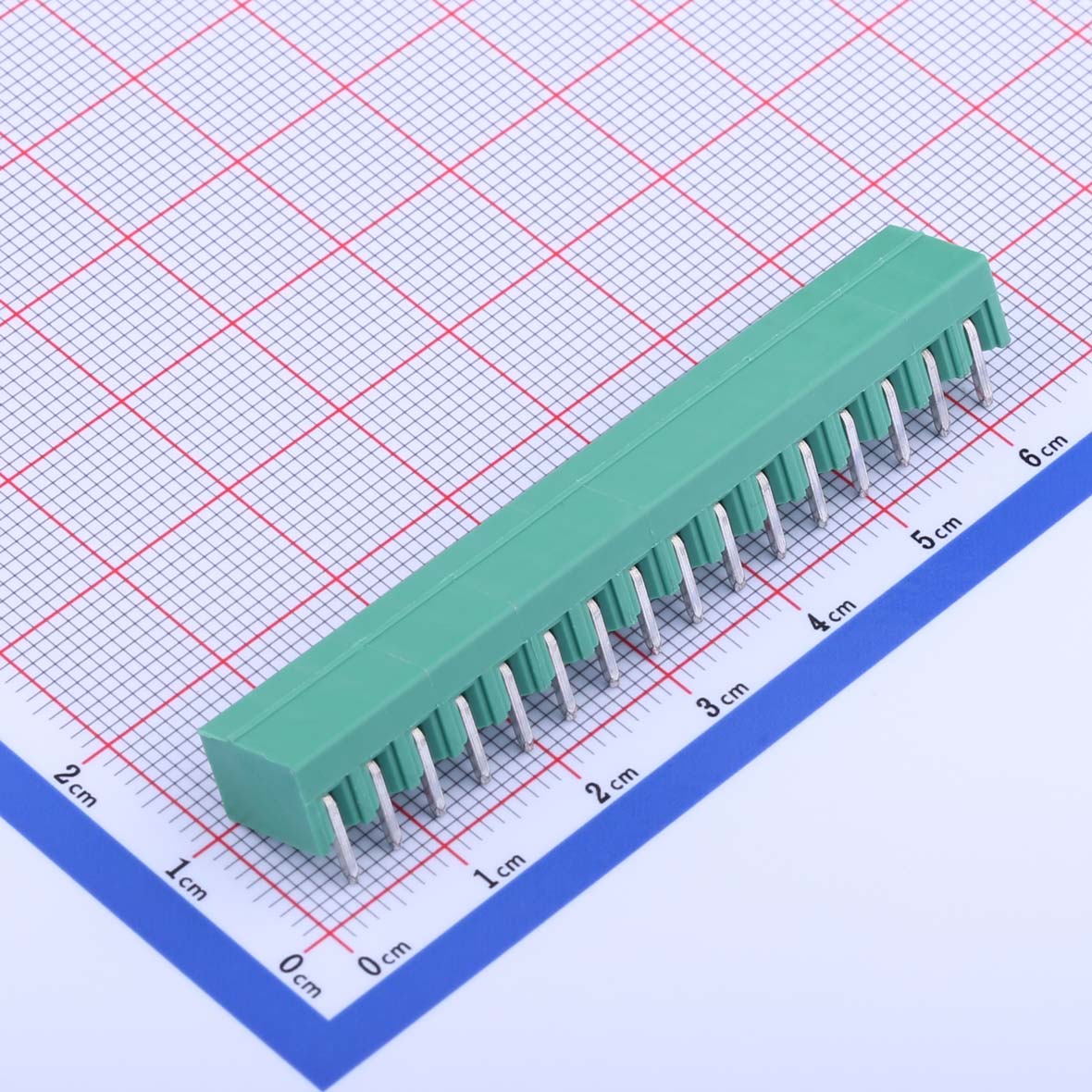

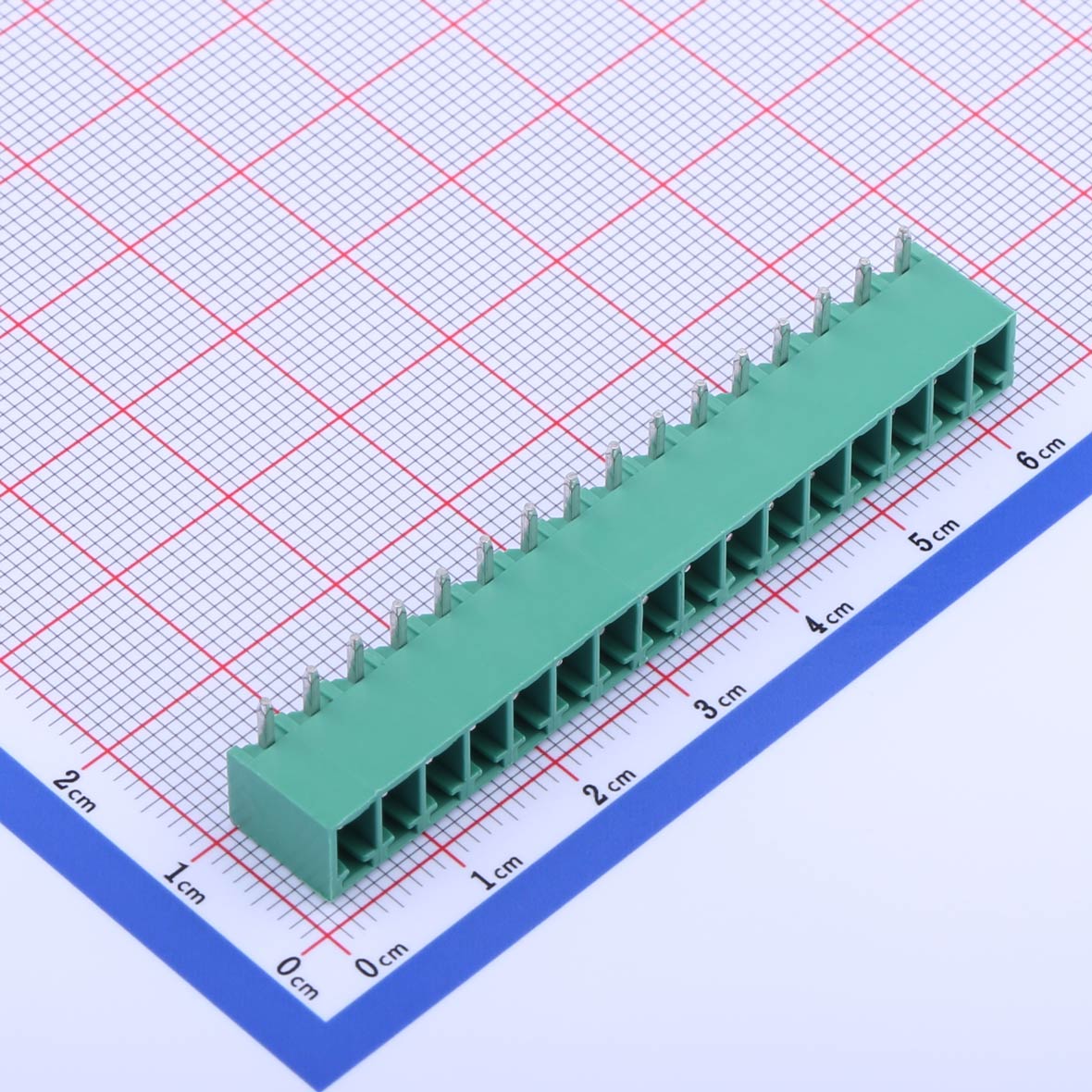

Pluggable Terminal Block, 3.81mm pitch, 16pin, 8A 300V, KH-15EDGRC-3.81-16PG
Product Features● Board mount socket closed end design● 3.81 mm pitch spacing● Right angle pin mount
Rating: 300V, 8A
Insulation Withstand Voltage: AC 2000V/min
Insulation Resistance: ≥500MΩ at DC 500V
Operating Temperature Range: -40°C to +105°C
Standards: RoHS compliant
Product Features
● Board mount socket closed end design
● 3.81 mm pitch spacing
● Right angle pin mounting type
● 16 pins single row configuration
● Green color housing
● Rated current 8A
● Rated voltage 300V
● Operating temperature -40℃ to +105℃
Product Benefits
● High-density terminal configuration for more connections
● Secure and reliable wire-to-board connections
● Quick and easy disconnection for maintenance
● Operates effectively in a wide range of temperatures
● Clear and easy circuit identification with green housing
Product Application
● Large industrial control systems
● High-power distribution units
● Automation and control panels
● Complex signal and communication systems
● Advanced monitoring and control devices
Name
Title
Description
Datasheet
Support
Support
If you need design/technical support, please let us know and fill inResponse FormWe will get back to you as soon as possible.
Longevity
The Longevity Program is aimed to provide our customers information from time to time about the expected time that our products can be ordered. The NLP is reviewed and updated regularly by our executive Management Team. View ourlongevity programhere.
Related Products

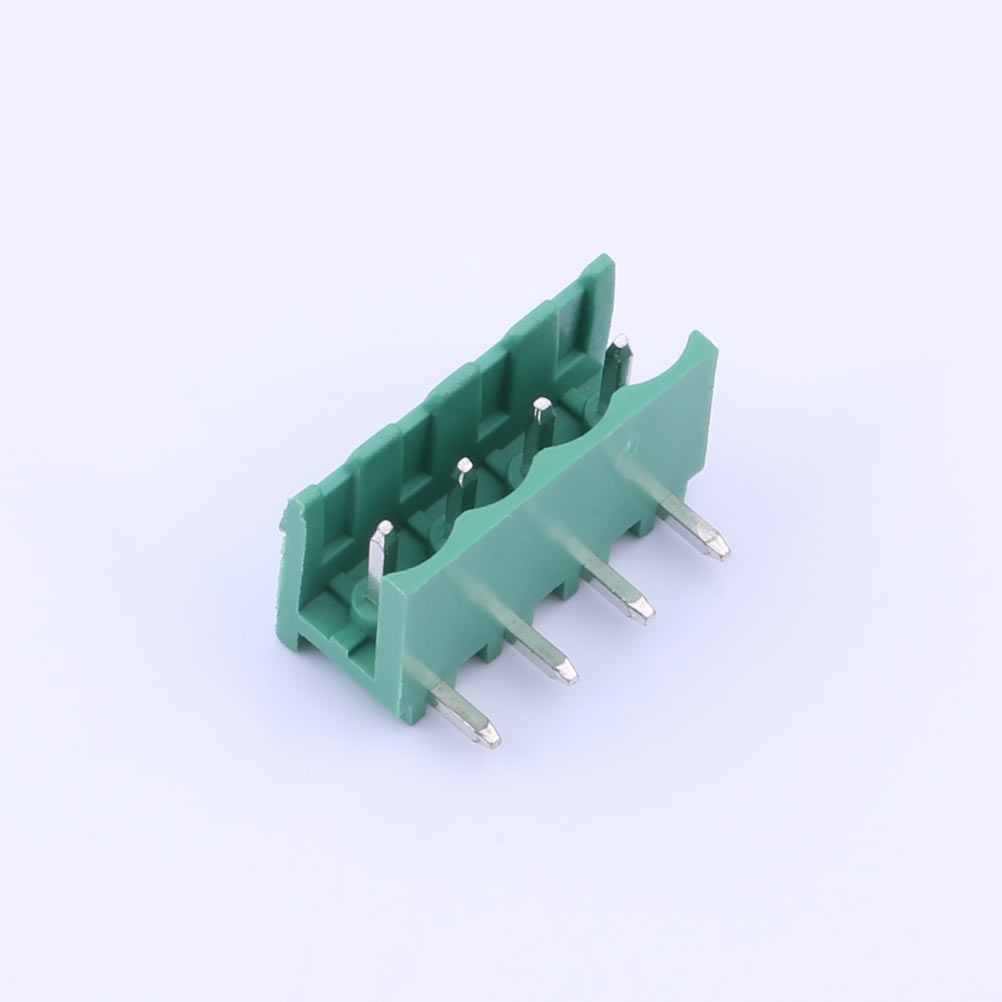

Pluggable Terminal Block, 5.08mm pitch, 4 pin, 12A 300V, KH-ZBF4000R-4P-5.08G
品牌： kinghelm， Product： KH-15EDGRC-3.81-16PG Category： Connector Classification： Terminal Block Connector Type： Pitch: 3.81mm
Pluggable Terminal Block, 3.81mm pitch, 8 pin, 8A 300V, KH-ZBK200R-8P-GS
品牌： kinghelm， Product： KH-15EDGRC-3.81-16PG Category： Connector Classification： Terminal Block Connector Type： Pitch: 3.81mm
Pluggable Terminal Block, 3.81mm pitch, 10 pin, 8A 300V, KH-15EDGRC-3.81-10PG
品牌： kinghelm， Product： KH-15EDGRC-3.81-16PG Category： Connector Classification： Terminal Block Connector Type： Pitch: 3.81mm
Pluggable Terminal Block, 3.81mm pitch, 3 pin, 8A 300V, KH-15EDGRC-3.81-3PG
品牌： kinghelm， Product： KH-15EDGRC-3.81-16PG Category： Connector Classification： Terminal Block Connector Type： Pitch: 3.81mm

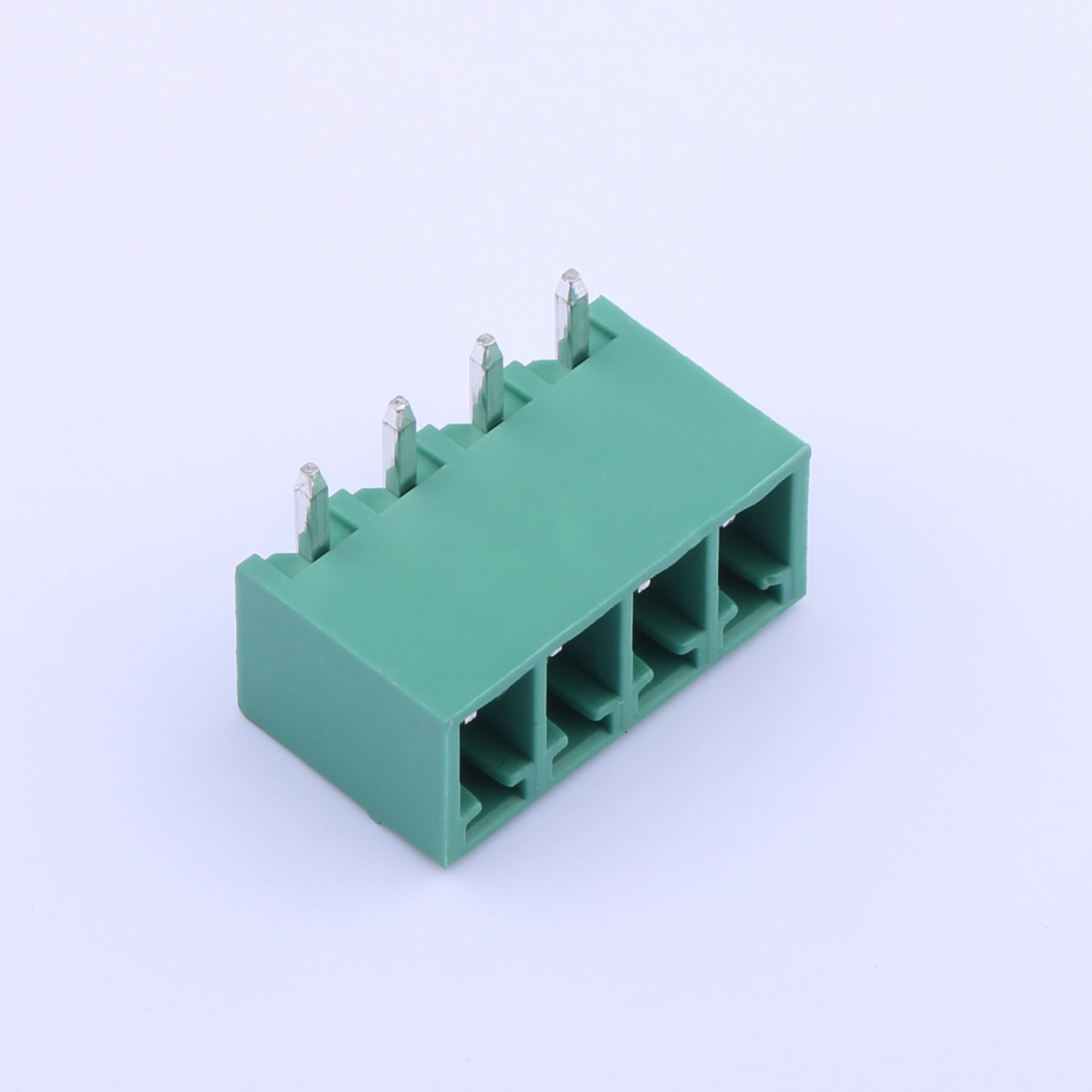

Pluggable Terminal Block, 3.81mm pitch, 4 pin, 8A 300V, KH-15EDGRC-3.81-4PG
品牌： kinghelm， Product： KH-15EDGRC-3.81-16PG Category： Connector Classification： Terminal Block Connector Type： Pitch: 3.81mm

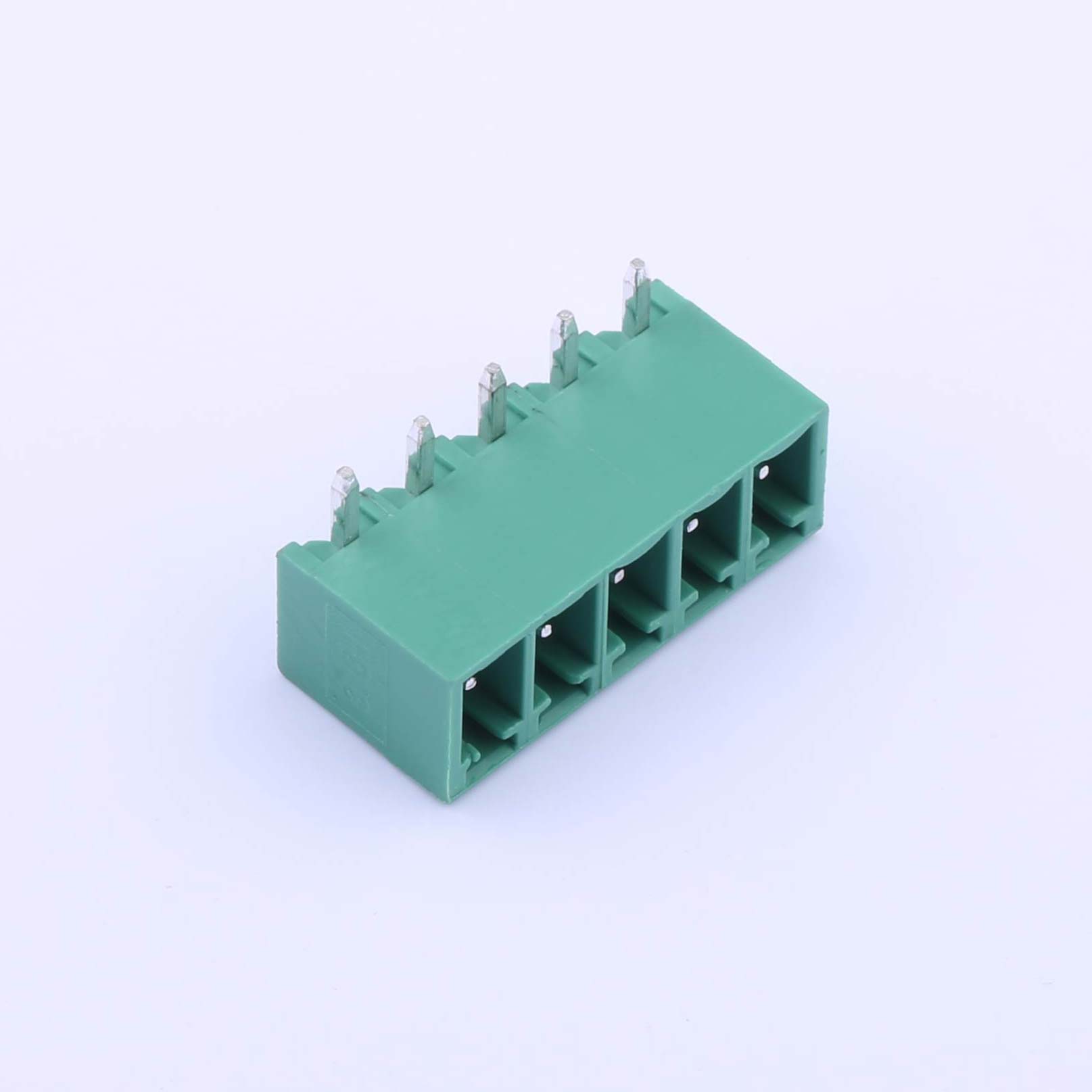

Pluggable Terminal Block, 3.81mm pitch, 5 pin, 8A 300V, KH-15EDGRC-3.81-5PG
品牌： kinghelm， Product： KH-15EDGRC-3.81-16PG Category： Connector Classification： Terminal Block Connector Type： Pitch: 3.81mm
Pluggable Terminal Block, 3.81mm pitch, 6 pin, 8A 300V, KH-15EDGRC-3.81-6PG
品牌： kinghelm， Product： KH-15EDGRC-3.81-16PG Category： Connector Classification： Terminal Block Connector Type： Pitch: 3.81mm
Pluggable Terminal Block, 3.81mm pitch, 7 pin, 8A 300V, KH-15EDGRC-3.81-7PG
品牌： kinghelm， Product： KH-15EDGRC-3.81-16PG Category： Connector Classification： Terminal Block Connector Type： Pitch: 3.81mm
Pluggable Terminal Block, 3.81mm pitch, 8 pin, 8A 300V, KH-15EDGRC-3.81-8PG
品牌： kinghelm， Product： KH-15EDGRC-3.81-16PG Category： Connector Classification： Terminal Block Connector Type： Pitch: 3.81mm

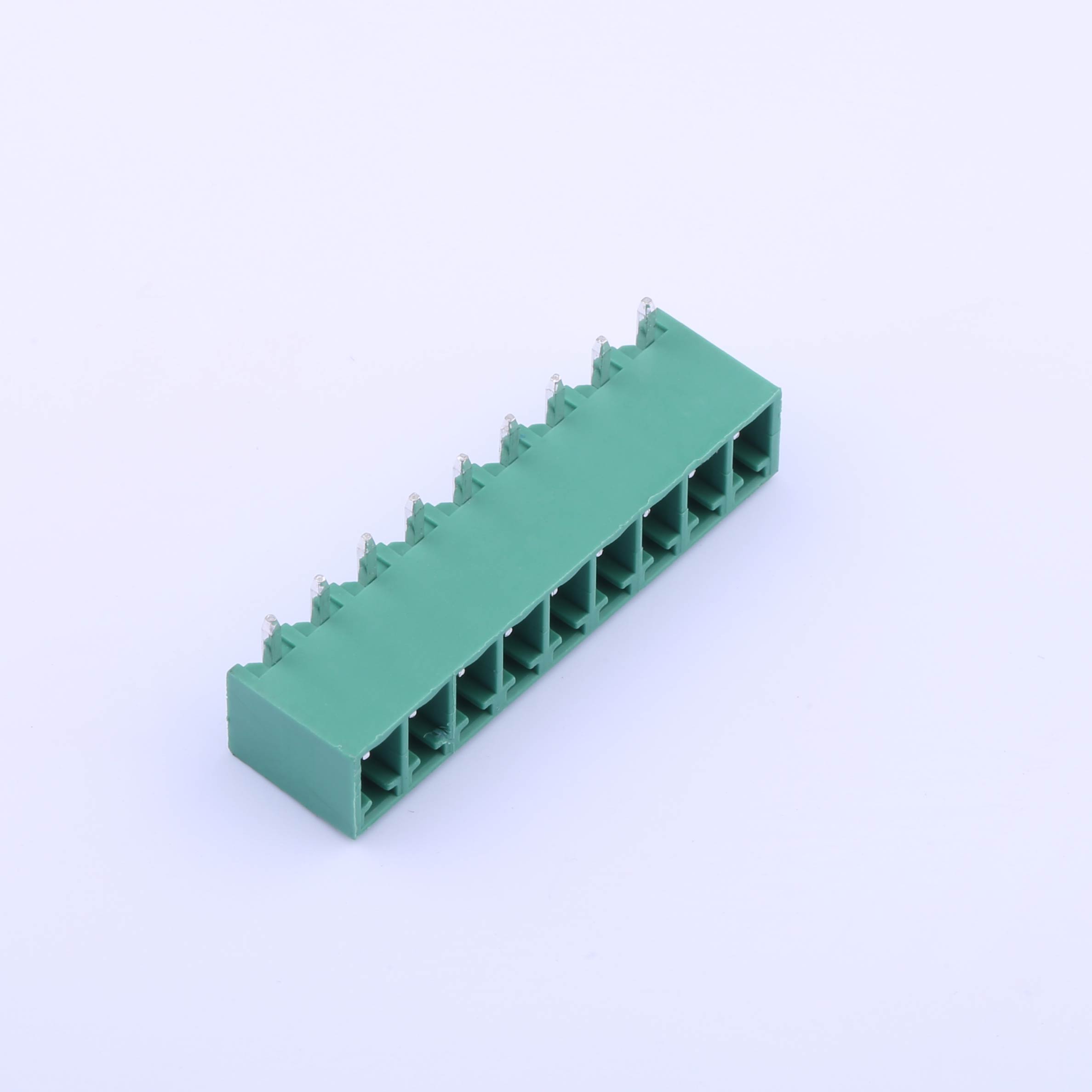

Pluggable Terminal Block, 3.81mm pitch, 9 pin, 8A 300V, KH-15EDGRC-3.81-9PG
