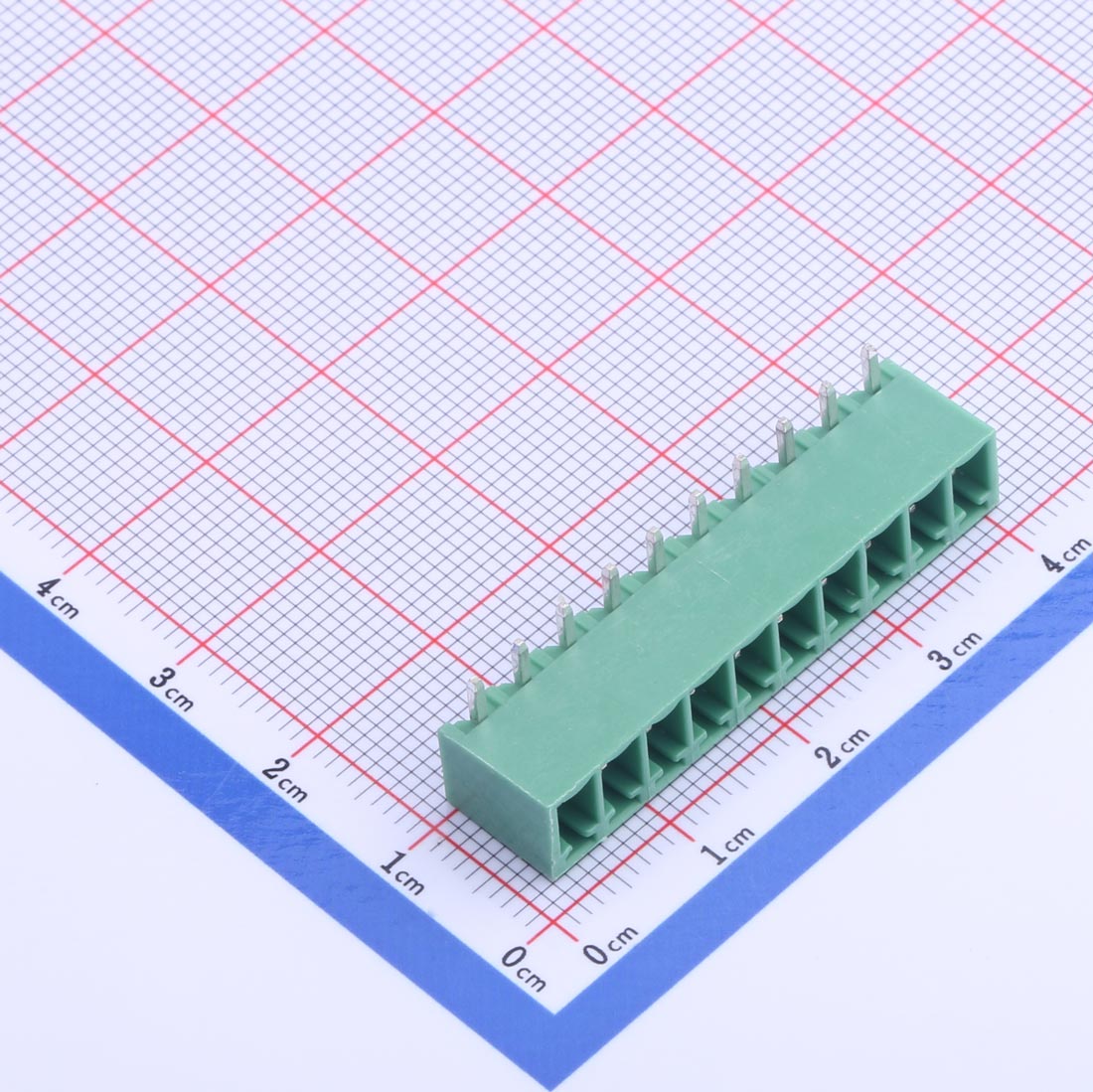

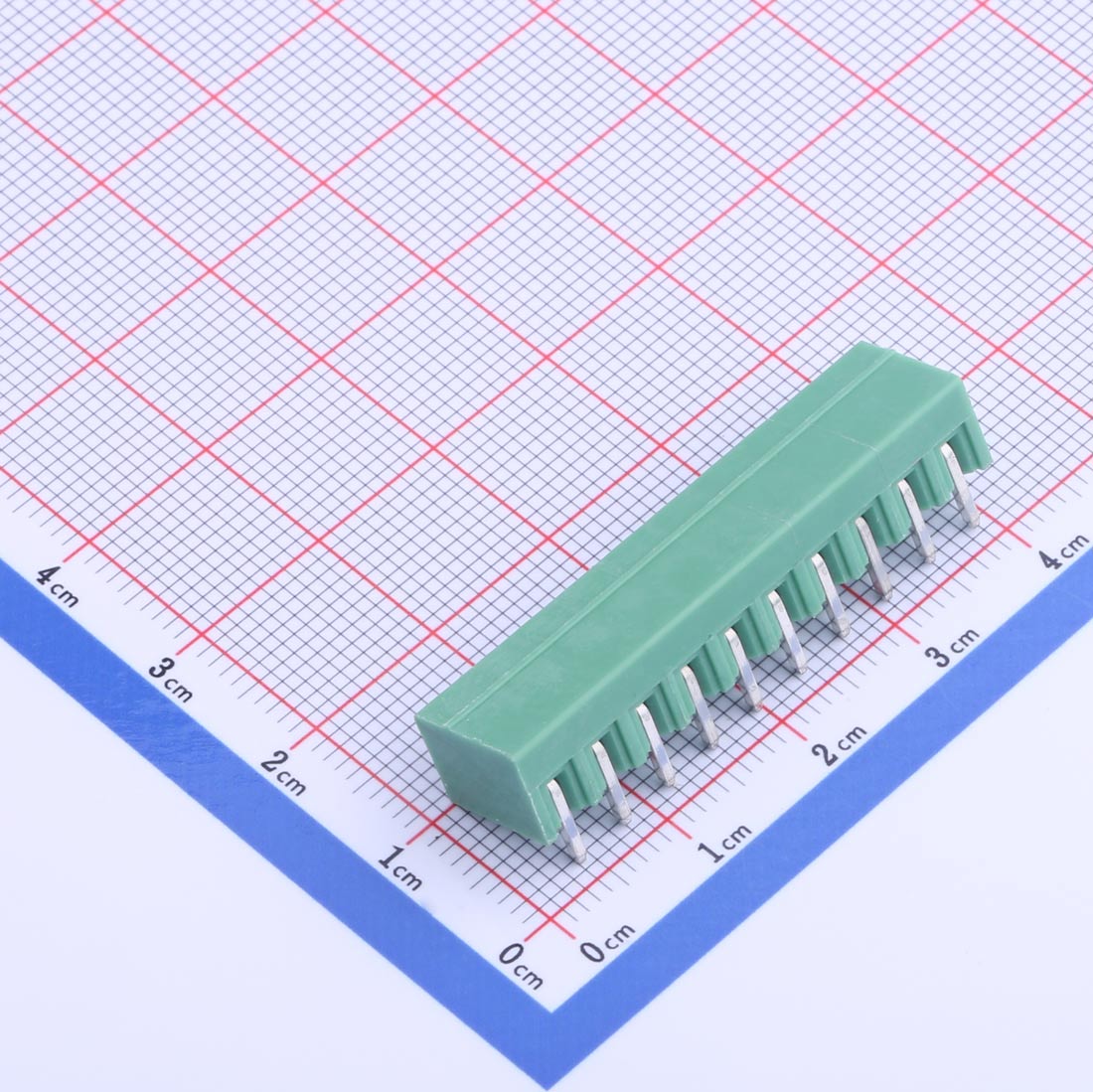

Pluggable Terminal Block, 3.81mm pitch, 10 pin, 8A 300V, KH-15EDGRC-3.81-10PG
Product Features● Board mount socket closed end design● 3.81 mm pitch spacing● Right angle pin mount
Rating: 300V, 8A
Insulation Withstand Voltage: AC 2000V/min
Insulation Resistance: ≥500MΩ at DC 500V
Operating Temperature Range: -40°C to +105°C
Standards: RoHS compliant
Product Features
● Board mount socket closed end design
● 3.81 mm pitch spacing
● Right angle pin mounting type
● 10 pins single row configuration
● Green color housing
● Rated current 8A
● Rated voltage 300V
● Operating temperature -40℃ to +105℃
Product Benefits
● High-density terminal configuration
● Reliable and stable wire connection
● Easy maintenance with pluggable design
● Performs well in extreme conditions
● Clear color identification for wiring
Product Application
● Industrial control and automation
● Power distribution and supply modules
● Signal and communication interfaces
● Building and lighting systems
● Test and measurement devices
