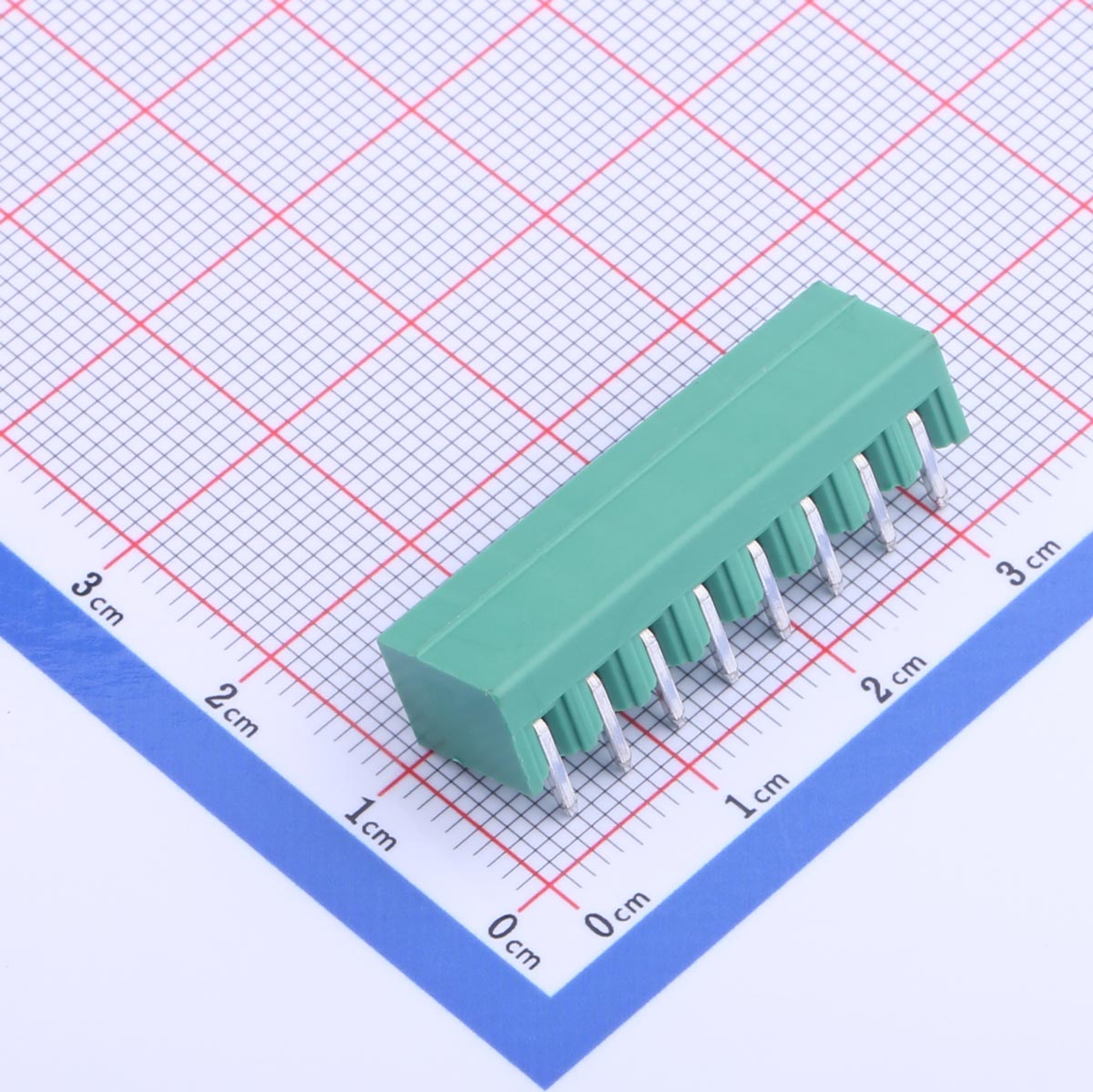

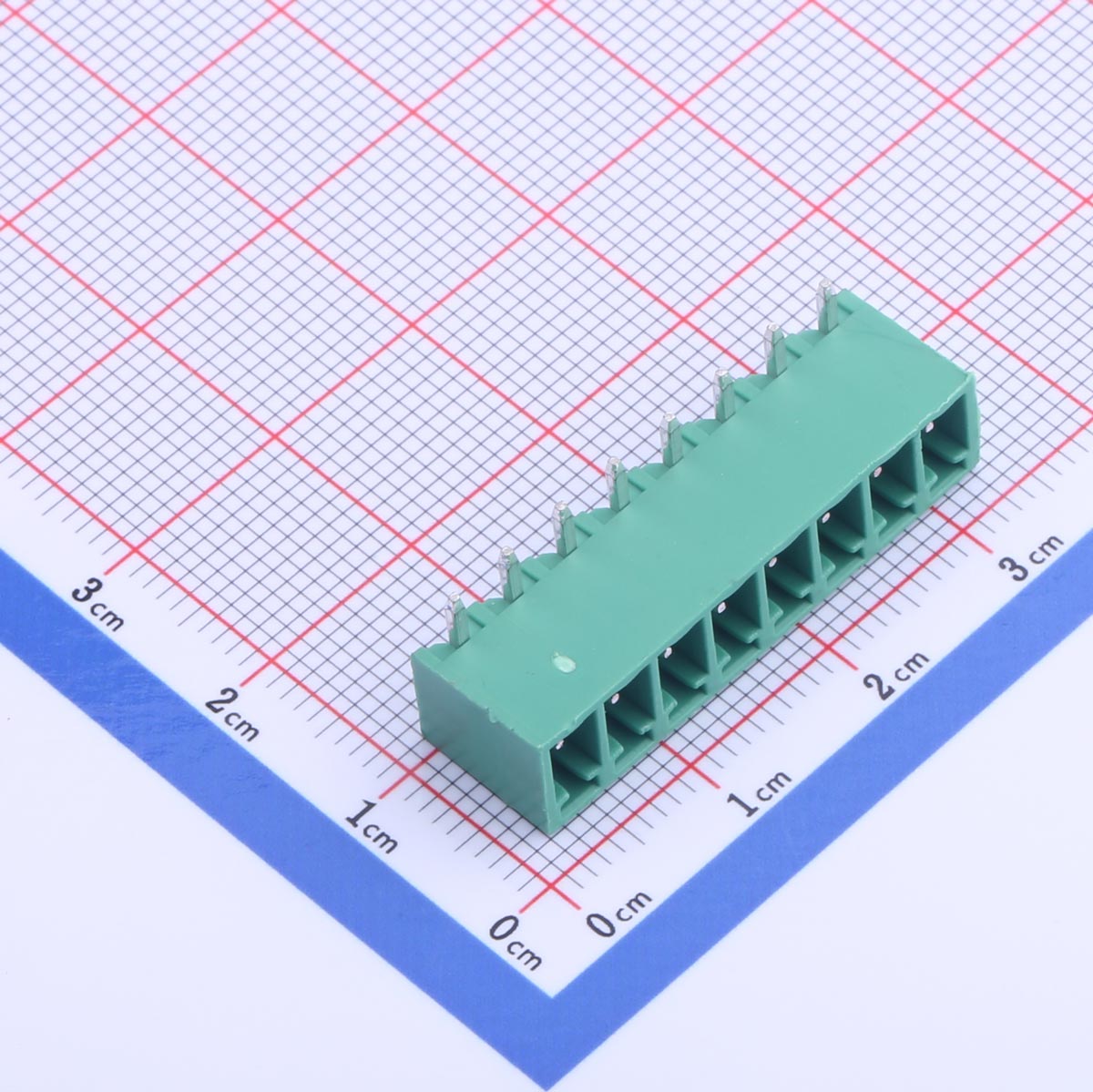

Pluggable Terminal Block, 3.81mm pitch, 8 pin, 8A 300V, KH-15EDGRC-3.81-8PG
Product Features● Board mount socket closed end design● 3.81 mm pitch spacing● Right angle pin mount
Rating: 300V, 8A
Insulation Withstand Voltage: AC 2000V/min
Insulation Resistance: ≥500MΩ at DC 500V
Operating Temperature Range: -40°C to +105°C
Standards: RoHS compliant
Product Features
● Board mount socket closed end design
● 3.81 mm pitch spacing
● Right angle pin mounting type
● 8 pins single row configuration
● Green color housing
● Rated current 8A
● Rated voltage 300V
● Operating temperature -40℃ to +105℃
Product Benefits
● Efficient use of PCB space
● Reliable and secure wire-to-board connection
● Easy installation and maintenance
● Durable performance in wide temperature range
● Color-coded for clear identification
Product Application
● Industrial automation controls
● Power supply and distribution units
● Signal and communication systems
● Building management equipment
● Instrumentation and test devices
