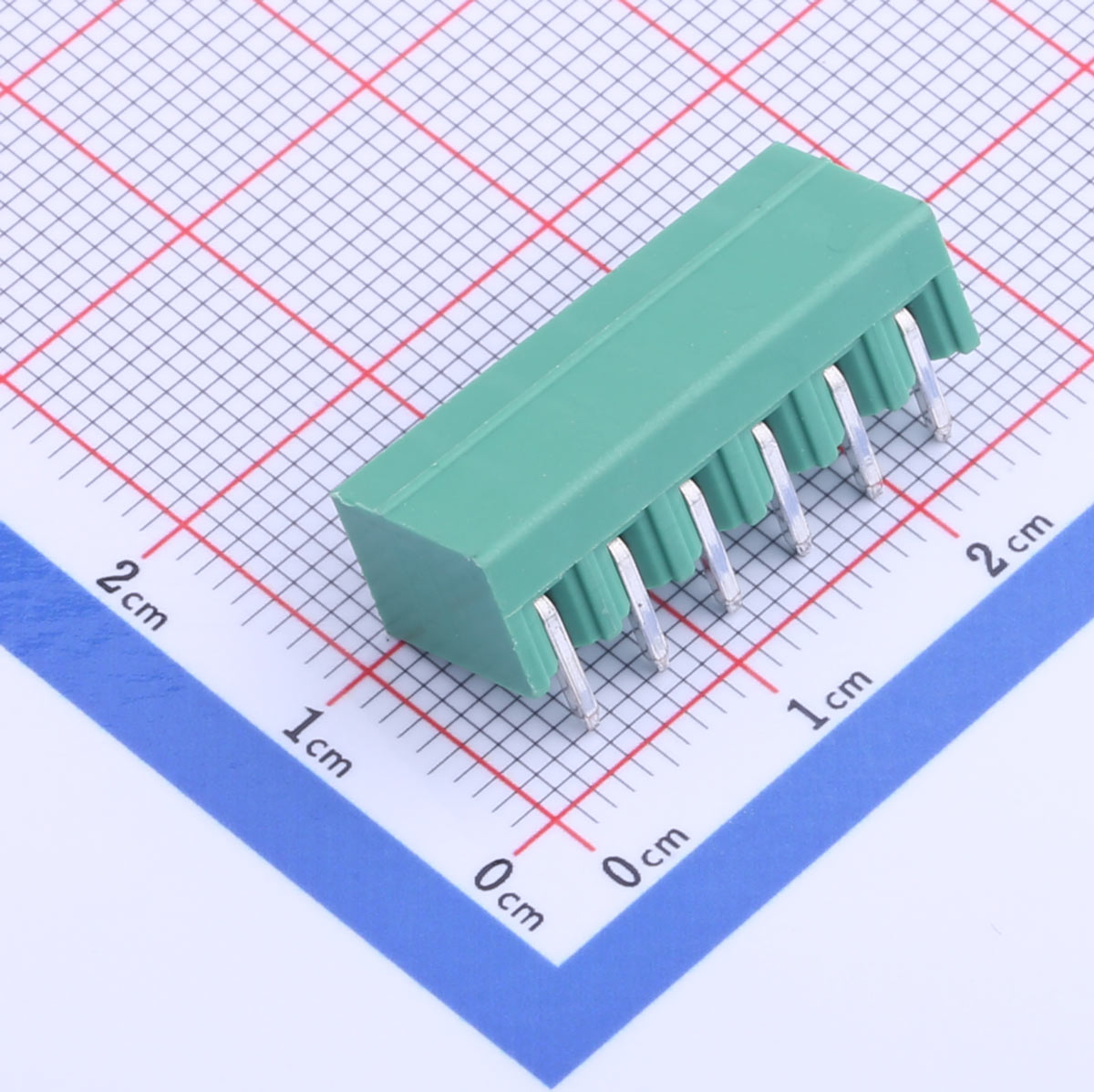

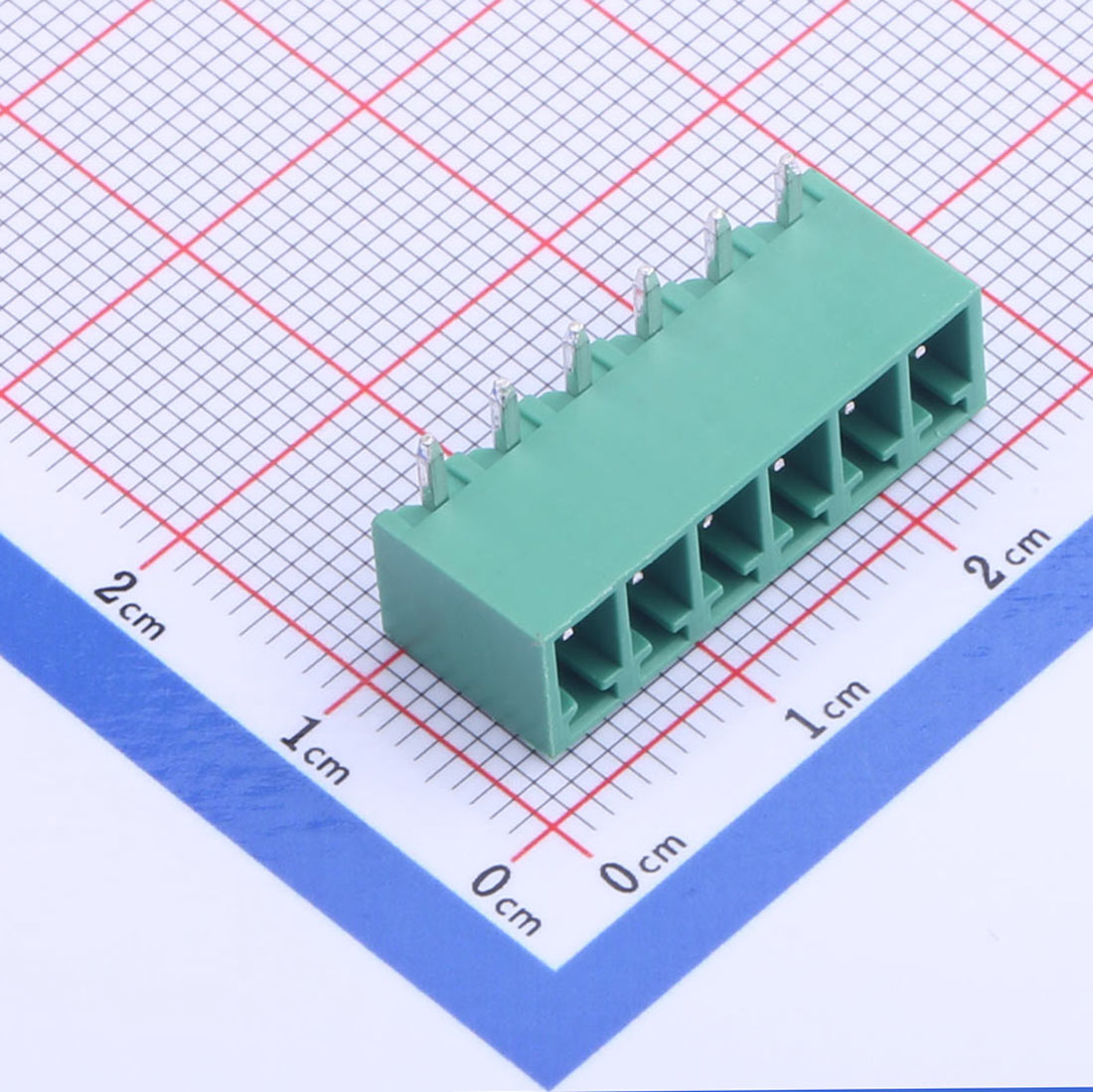

Pluggable Terminal Block, 3.81mm pitch, 6 pin, 8A 300V, KH-15EDGRC-3.81-6PG
Product Features● Board mount socket closed end design● 3.81 mm pitch spacing● Right angle pin mount
Rating: 300V, 8A
Insulation Withstand Voltage: AC 2000V/min
Insulation Resistance: ≥500MΩ at DC 500V
Operating Temperature Range: -40°C to +105°C
Standards: RoHS compliant
Product Features
● Board mount socket closed end design
● 3.81 mm pitch spacing
● Right angle pin mounting type
● 6 pins single row configuration
● Green color housing
● Rated current 8A
● Rated voltage 300V
● Operating temperature -40℃ to +105℃
Product Benefits
● Compact and space-efficient layout
● Secure and stable terminal connection
● Quick plug-in and removal for easy wiring
● Reliable performance under extreme temperatures
● Standard color for simplified circuit mapping
Product Application
● Industrial machinery wiring
● Electrical control systems
● Power and signal connections
● HVAC and building control systems
● Automation and monitoring equipment
