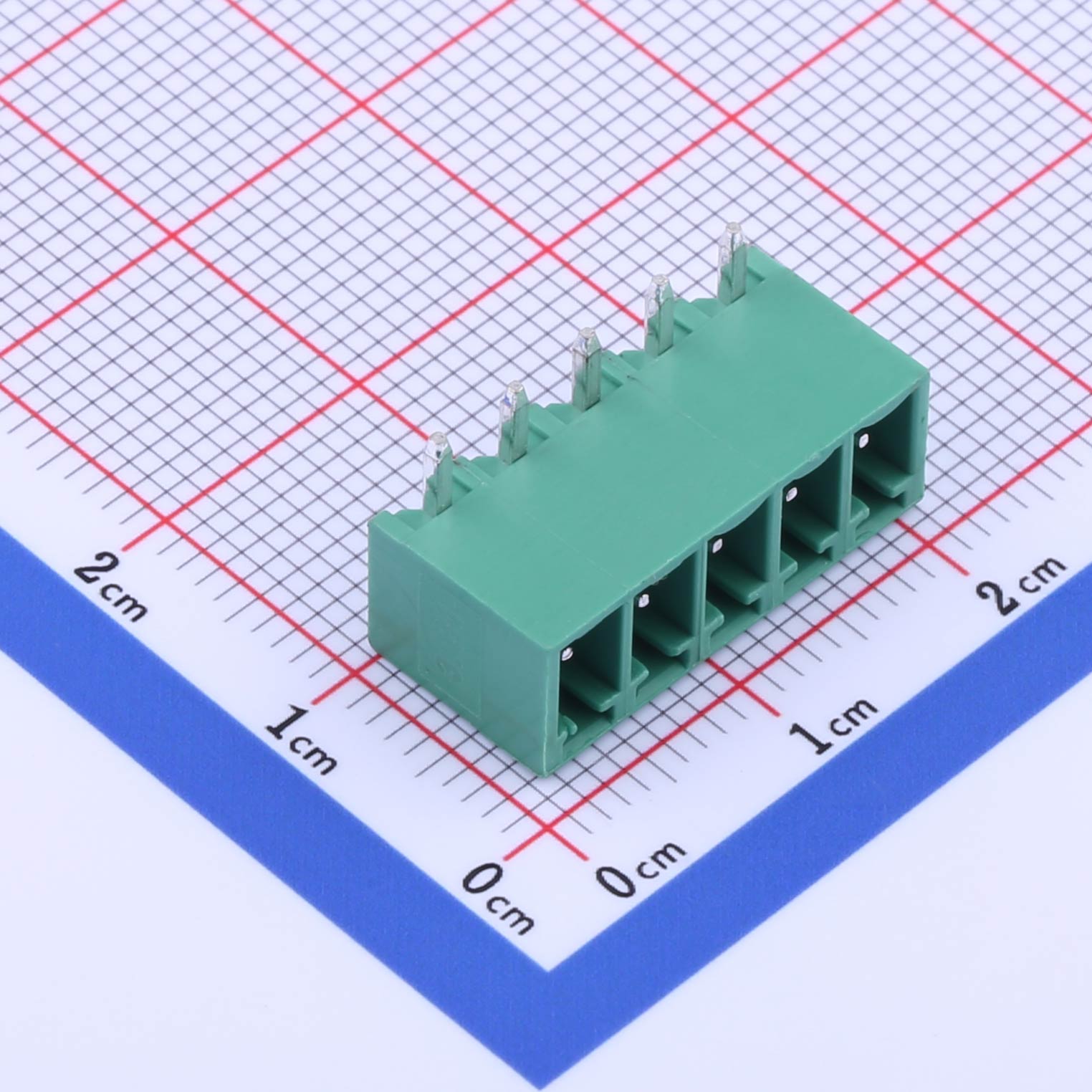

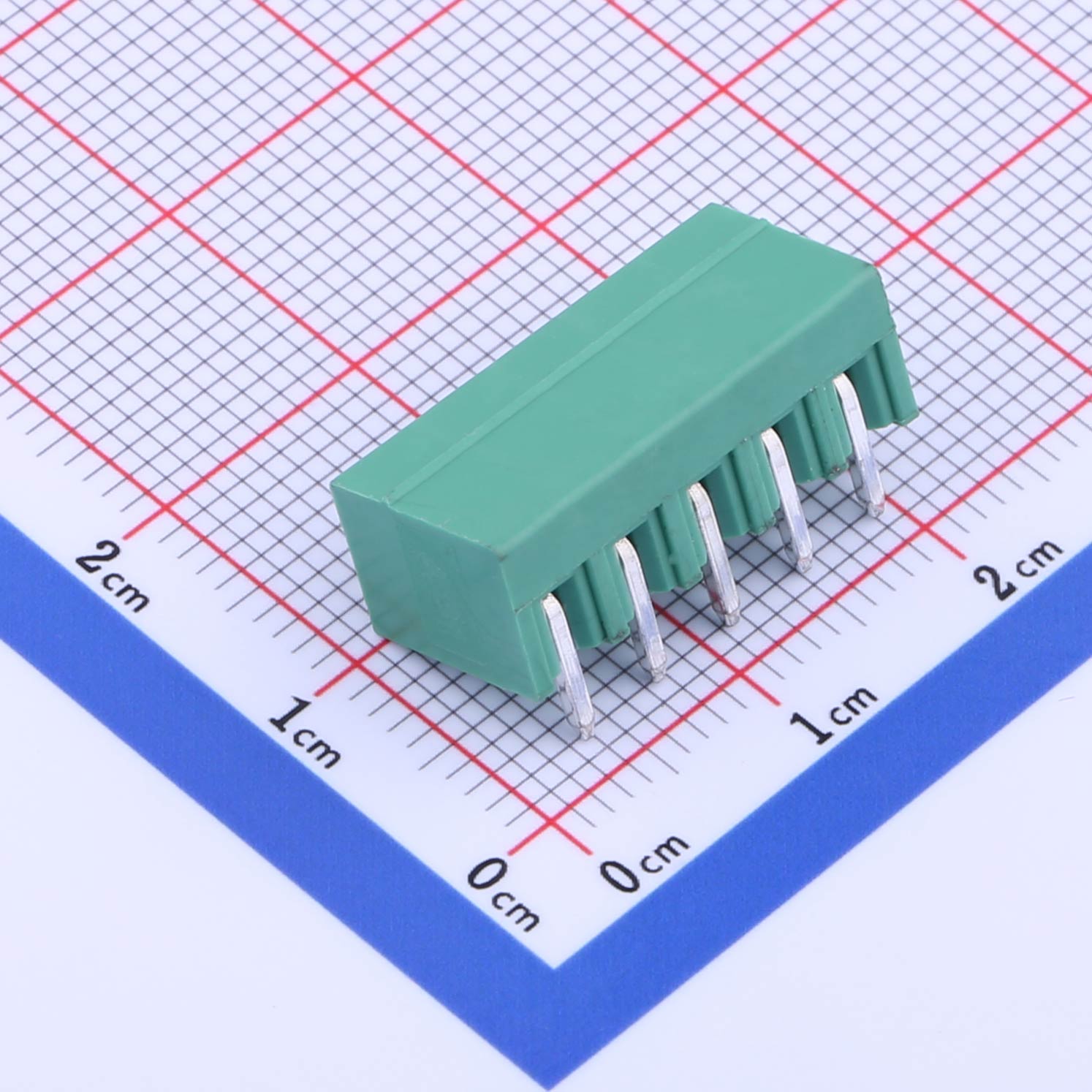

Pluggable Terminal Block, 3.81mm pitch, 5 pin, 8A 300V, KH-15EDGRC-3.81-5PG
Product Features● Board mount socket closed end design● 3.81 mm pitch spacing● Right angle pin mount
Rated Voltage & Current: 300V, 8A
Insulation Withstand Voltage: AC 2000V/min
Insulation Resistance: ≥500MΩ at DC 500V
Operating Temperature Range: -40°C to +105°C
Standards: RoHS compliant
Product Features
● Board mount socket closed end design
● 3.81 mm pitch spacing
● Right angle pin mounting type
● 5 pins single row configuration
● Green color housing
● Rated current 8A
● Rated voltage 300V
● Operating temperature -40℃ to +105℃
Product Benefits
● Space-saving compact design
● Stable and secure wire connection
● Convenient plug-in terminal interface
● Reliable performance in extreme temperatures
● Easy identification with green housing
Product Application
● Control and instrumentation panels
● Automation and robotics systems
● Power and signal interface boards
● Communication equipment
● Smart building solutions
