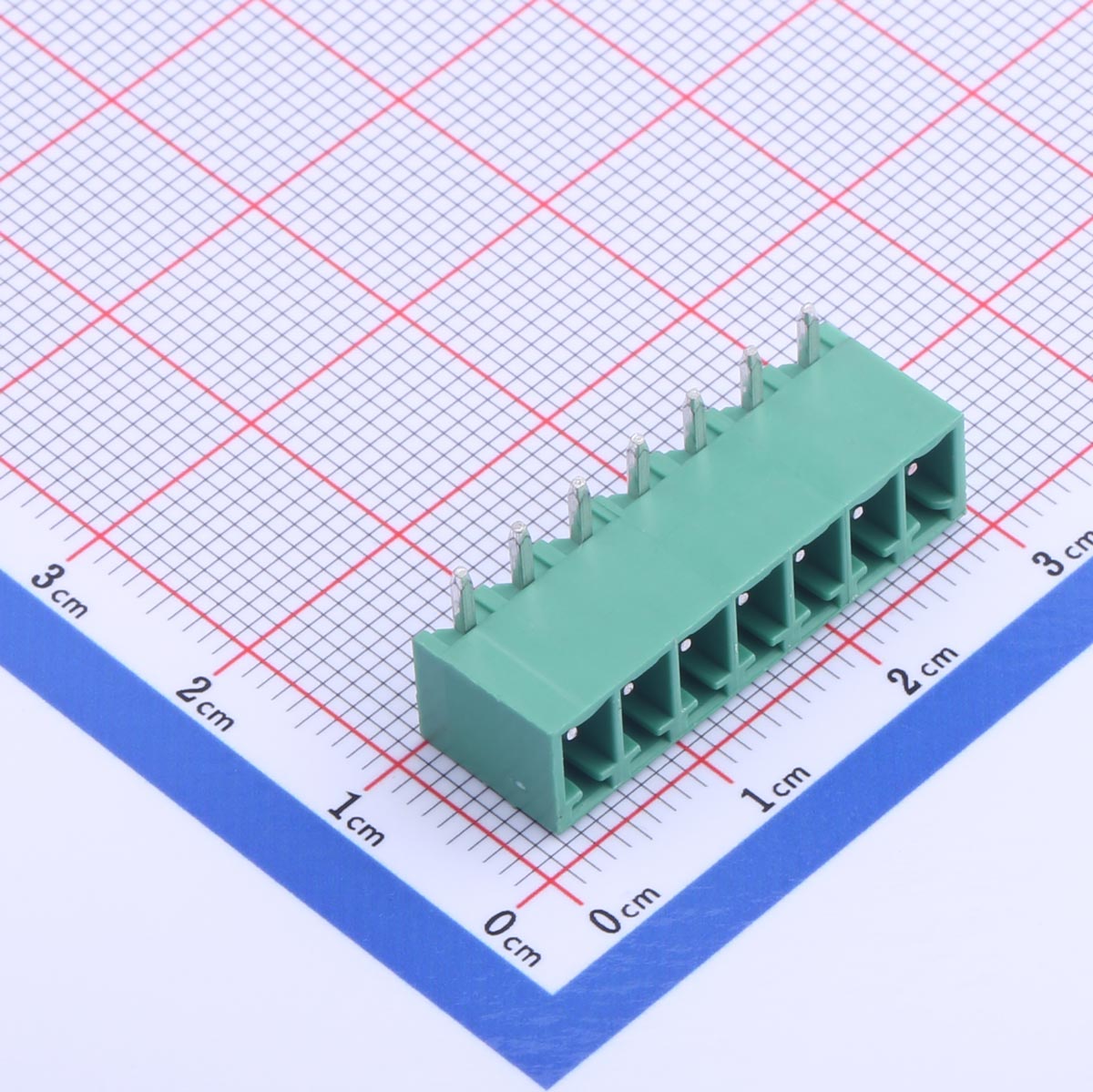

Pluggable Terminal Block, 3.81mm pitch, 7 pin, 8A 300V, KH-15EDGRC-3.81-7PG
Product Features● Board mount socket closed end design● 3.81 mm pitch spacing● Right angle pin mount
Rating: 300V, 8A
Insulation Withstand Voltage: AC 2000V/min
Insulation Resistance: ≥500MΩ at DC 500V
Operating Temperature Range: -40°C to +105°C
Standards: RoHS compliant
Product Features
● Board mount socket closed end design
● 3.81 mm pitch spacing
● Right angle pin mounting type
● 7 pins single row configuration
● Green color housing
● Rated current 8A
● Rated voltage 300V
● Operating temperature -40℃ to +105℃
Product Benefits
● Efficient space usage with 7-pin configuration
● Stable and secure electrical connection
● Easy to install and replace for maintenance
● Reliable in various temperature extremes
● Color-coded for easy identification
Product Application
● Industrial control systems
● Power distribution and supply systems
● Automation and robotics systems
● Signal and communication applications
● Building management and HVAC systems
