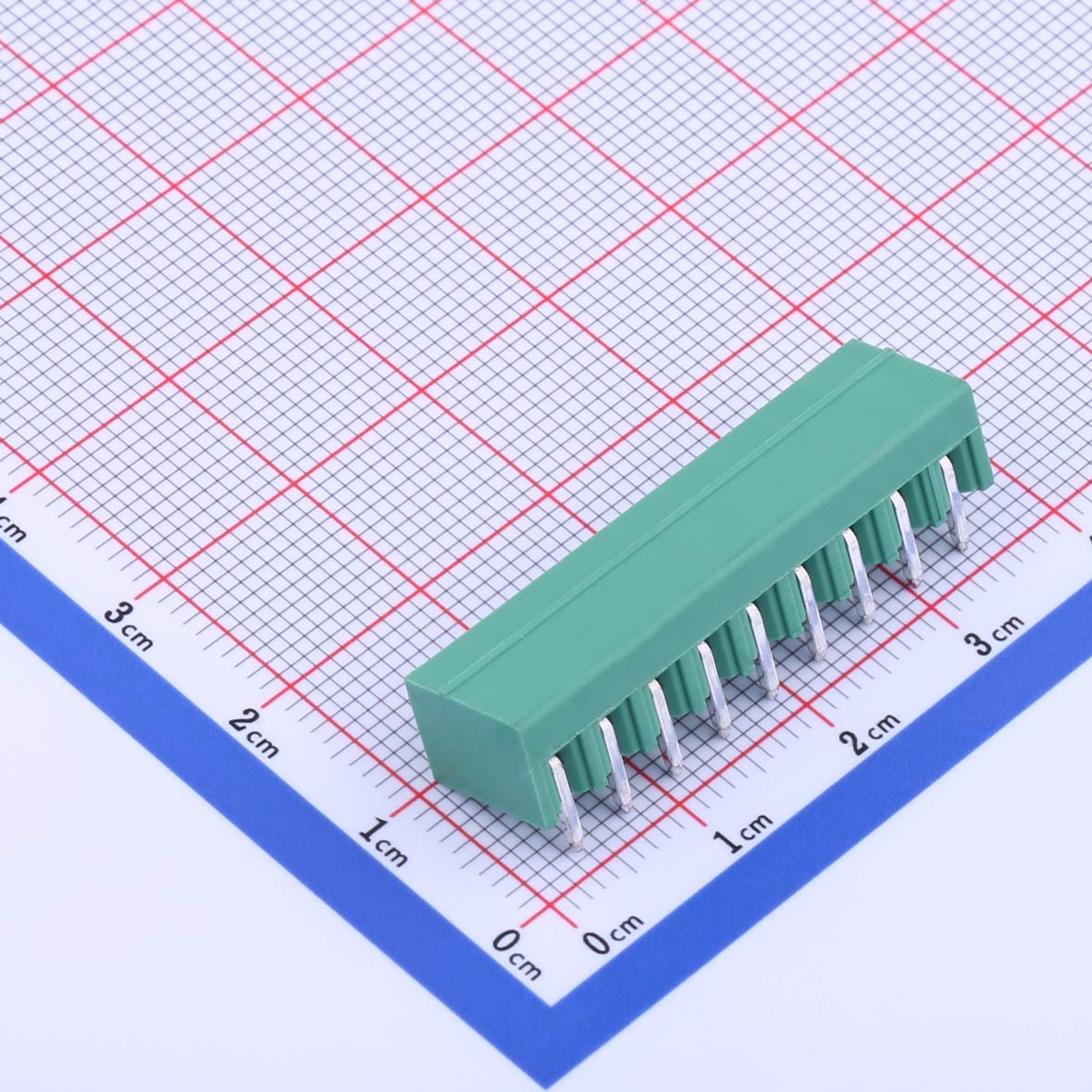

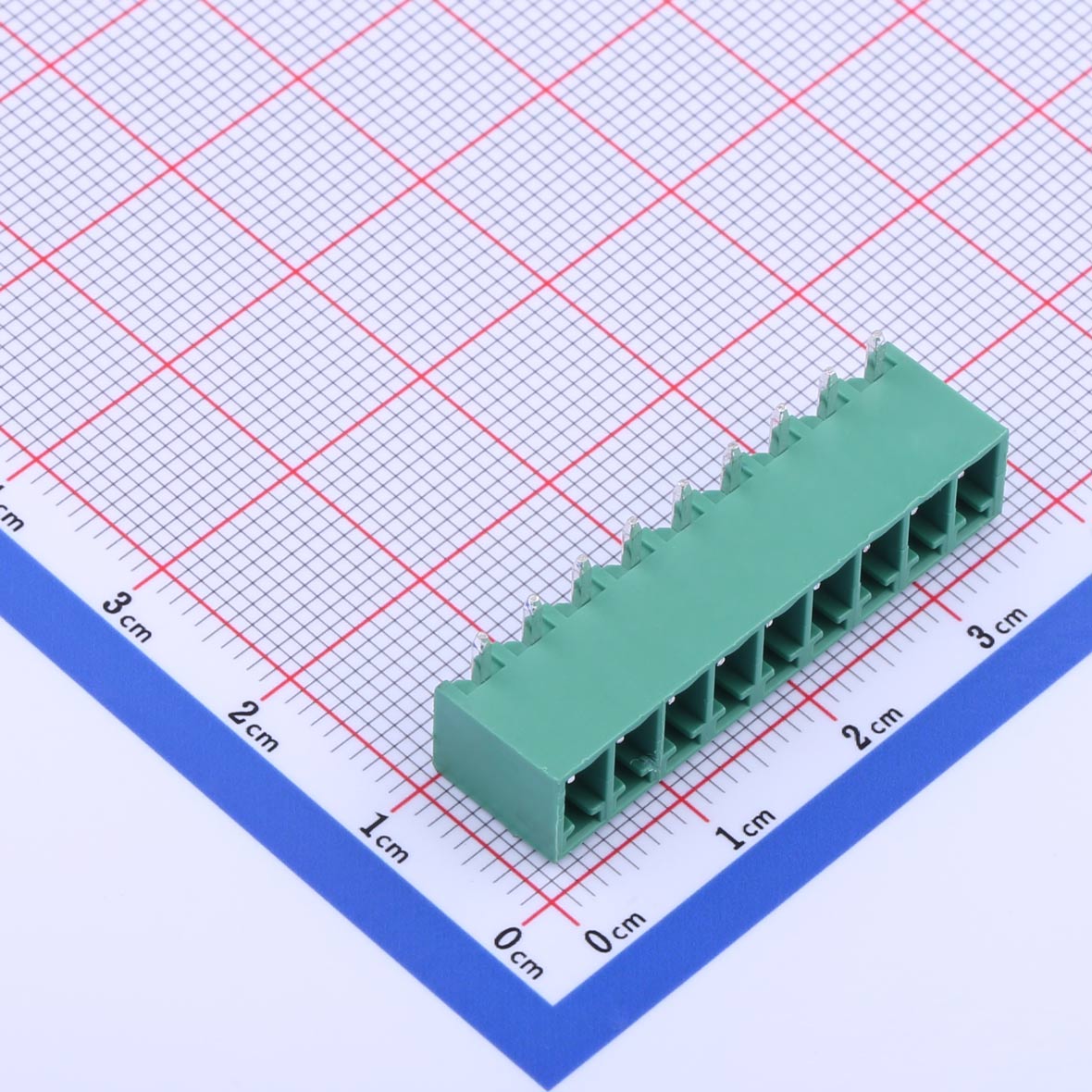

Pluggable Terminal Block, 3.81mm pitch, 9 pin, 8A 300V, KH-15EDGRC-3.81-9PG
Product Features● Board mount socket closed end design● 3.81 mm pitch spacing● Right angle pin mount
Rated Voltage & Current: 300V, 8A
Insulation Withstand Voltage: AC 2000V/min
Insulation Resistance: ≥500MΩ at DC 500V
Operating Temperature Range: -40°C to +105°C
Standards: RoHS compliant
Product Features
● Board mount socket closed end design
● 3.81 mm pitch spacing
● Right angle pin mounting type
● 9 pins single row configuration
● Green color housing
● Rated current 8A
● Rated voltage 300V
● Operating temperature -40℃ to +105℃
Product Benefits
● Compact design saves board space
● Secure and stable electrical connection
● Easy plug and unplug functionality
● Durable under wide temperature range
● Clear color coding for circuit identification
Product Application
● Industrial control systems
● Automation equipment
● Power distribution units
● Signal and data connections
● Building management systems
Name
Title
Description
Datasheet
Support
Support
If you need design/technical support, please let us know and fill inResponse FormWe will get back to you as soon as possible.
Longevity
The Longevity Program is aimed to provide our customers information from time to time about the expected time that our products can be ordered. The NLP is reviewed and updated regularly by our executive Management Team. View ourlongevity programhere.
