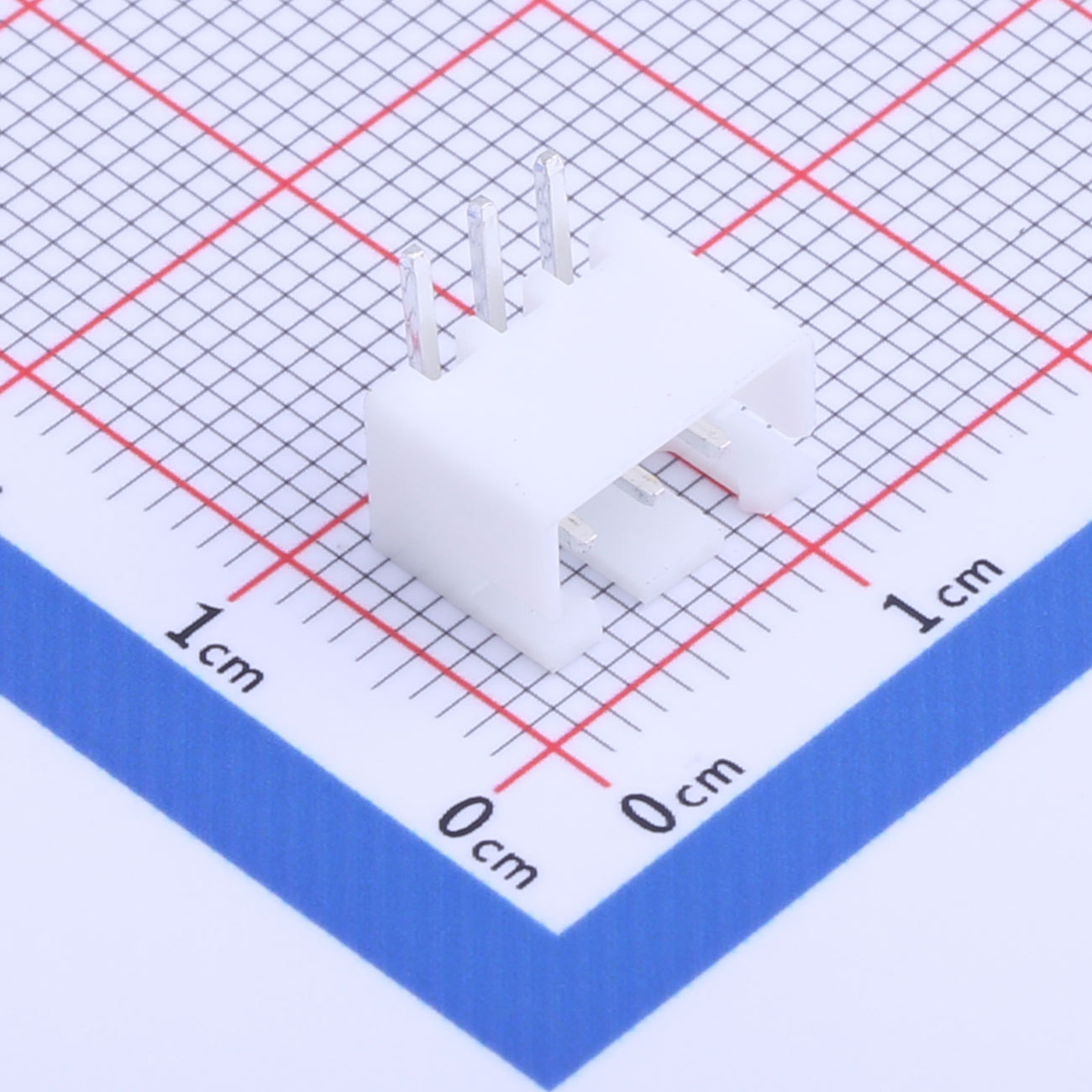

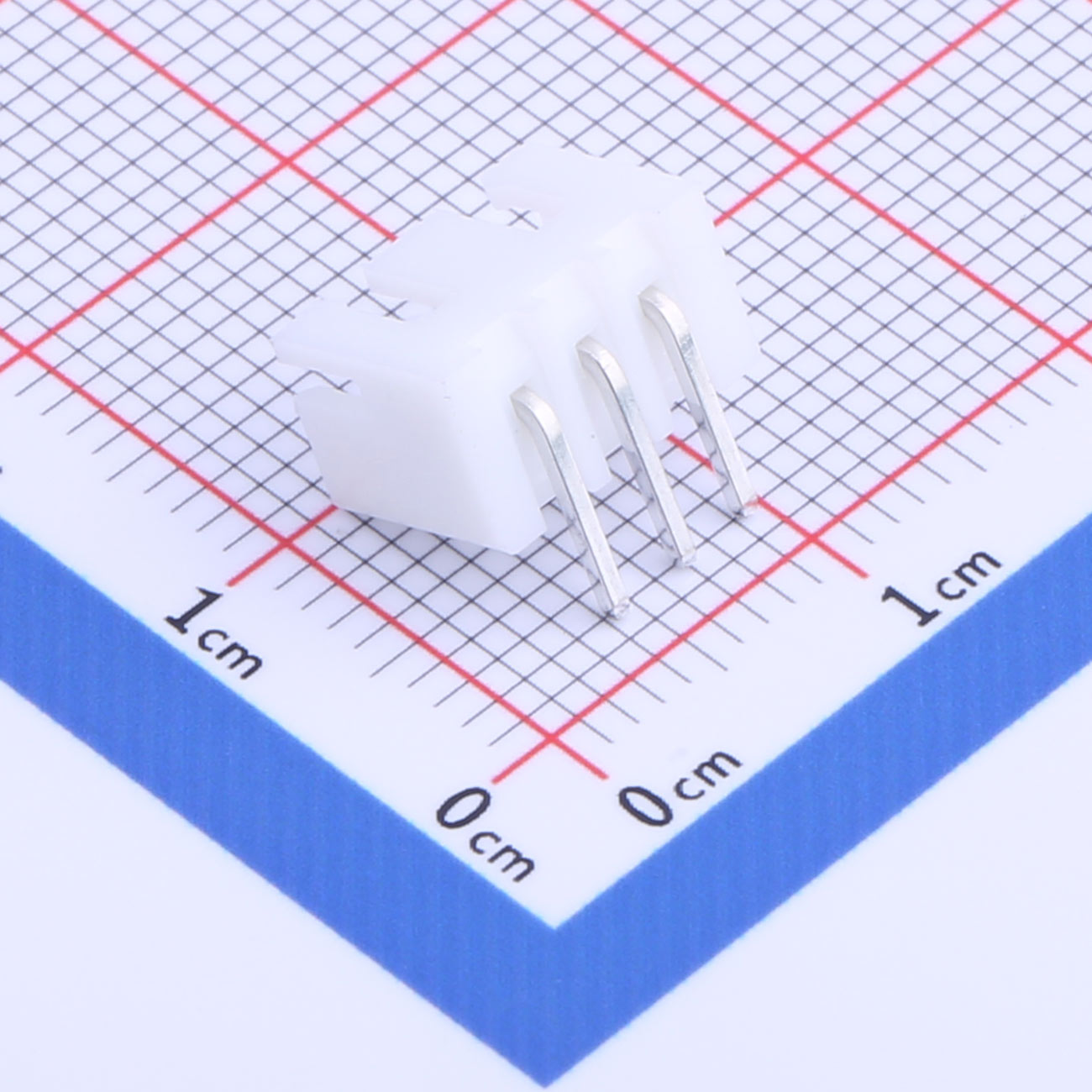

Wire to Board Connector, XH Connector, 2.5mm Pitch, 1x3P, KH-XH-3A-W
Product Features● 2.5mm pitch● 1x3P single row● Right-angle mounting type● 3A current rating● -25℃ t
Current Rating: 3A AC/DC
Voltage Rating: 250V AC/DC
Temperature Range: -25℃ to +85℃
Contact Resistance: 20mΩ Max
Insulation Resistance: 1000MΩ Min
Product Features
● 2.5mm pitch
● 1x3P single row
● Right-angle mounting type
● 3A current rating
● -25℃ to +85℃ operating temperature
● Push-pull locking feature
Product Benefits
● Reliable 3-pin signal or power link
● Compact and efficient layout
● Easy plug-in/out operation
● Good resistance to environmental stress
● Supports quick maintenance
Product Applications
● Wearables
● Automotive sensors
● Miniature industrial sensors
● Audio signal modules
● Smart door locks
Name
Title
Description
Datasheet
Support
Support
If you need design/technical support, please let us know and fill inResponse FormWe will get back to you as soon as possible.
Longevity
The Longevity Program is aimed to provide our customers information from time to time about the expected time that our products can be ordered. The NLP is reviewed and updated regularly by our executive Management Team. View ourlongevity programhere.
