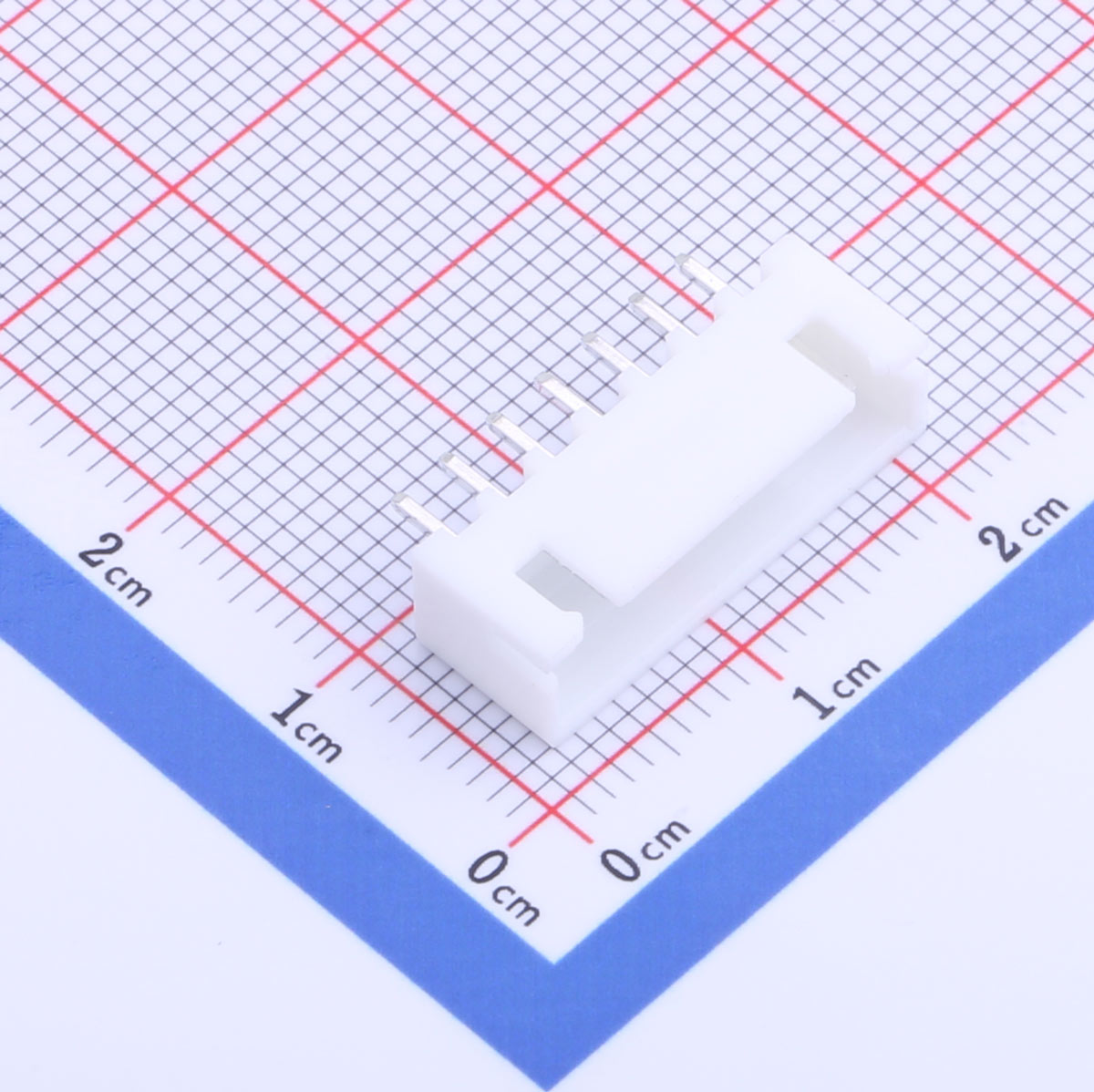

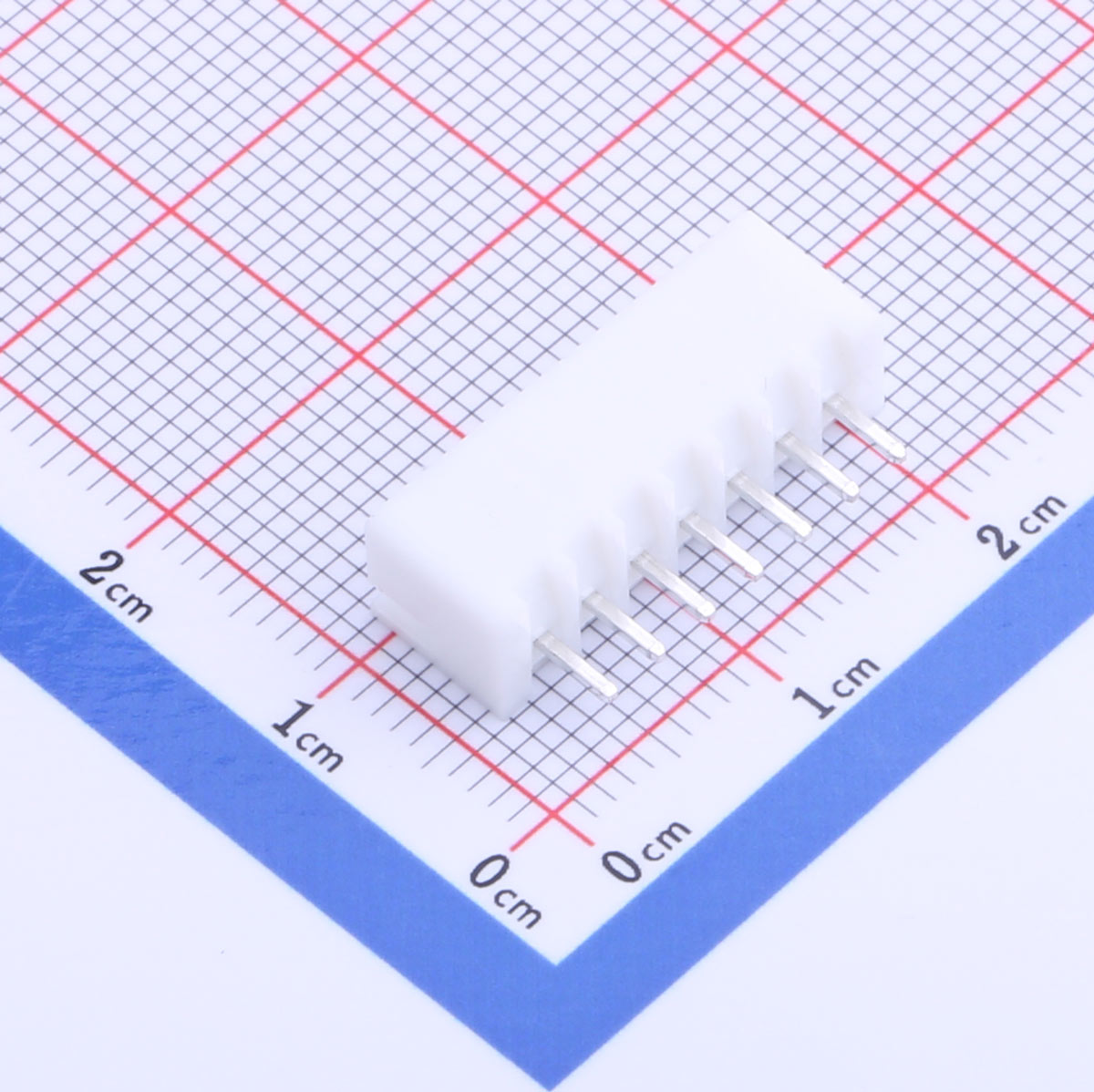

Wire to Board Connector, XH Connector, 2.5mm Pitch, 1x7P, KH-XH-7A-Z

Product Features● 2.5mm pitch● 1x7P single row● Straight mounting type● 3A current rating● -25℃ to +

Current Rating: 3A AC/DC

Voltage Rating: 250V AC/DC

Temperature Range: -25℃ to +85℃

Contact Resistance: 20mΩ Max

Insulation Resistance: 1000MΩ Min

Download Datasheet Online Consultation

Product Details Product Documents Technical Support

Product Features
● 2.5mm pitch
● 1x7P single row
● Straight mounting type
● 3A current rating
● -25℃ to +85℃ operating temperature

Product Benefits
● Stable and compact connection
● Suitable for 7-pin signal or power lines
● Easy to install on PCB
● Heat- and vibration-resistant
● Efficient assembly process

Product Applications
● Small electronics
● Automotive sensors
● Compact industrial devices
● Communication modules
● Smart home appliances

Name

Title

Description

KH-XH-7A-Z.pdf

Datasheet
