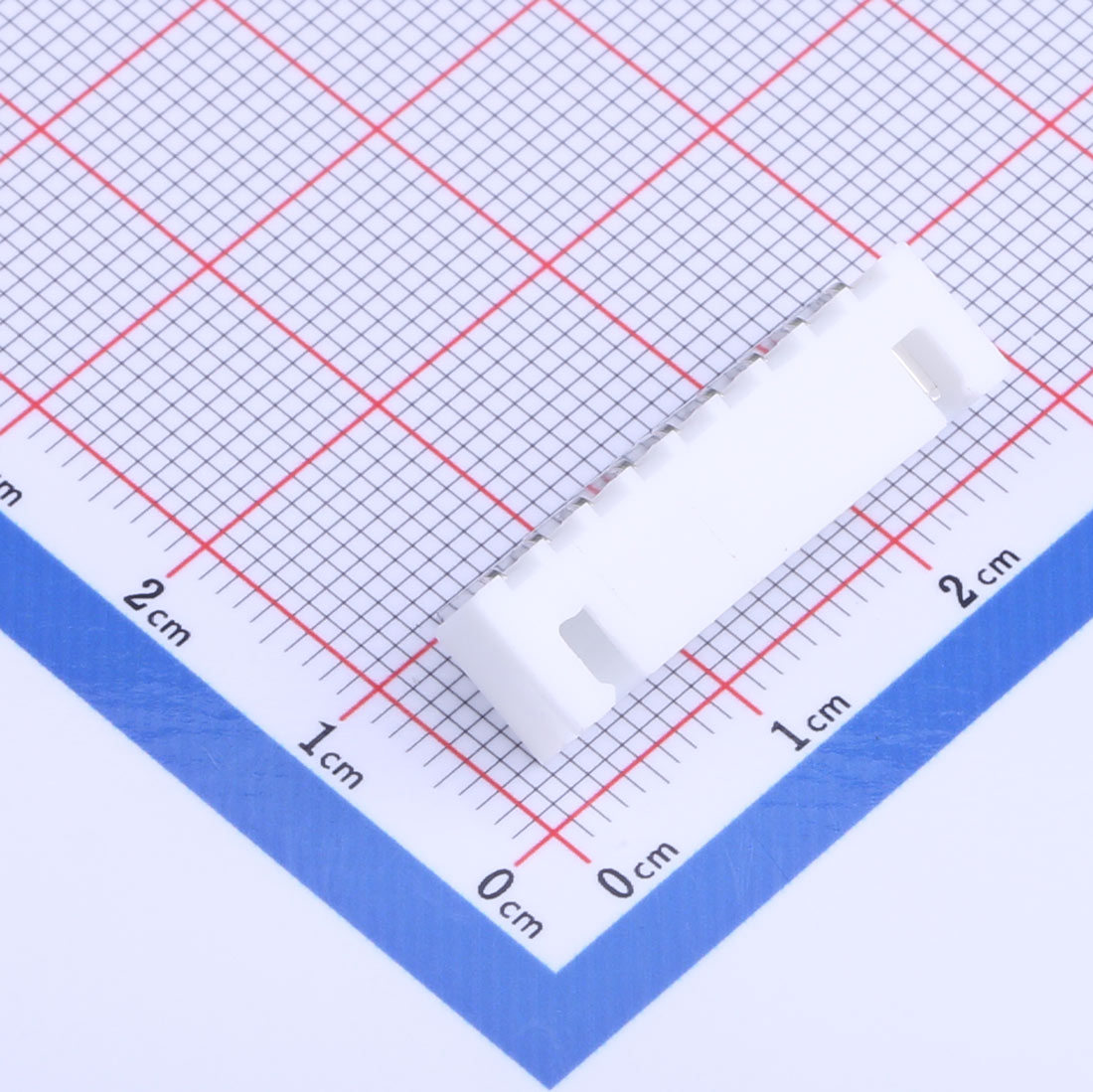

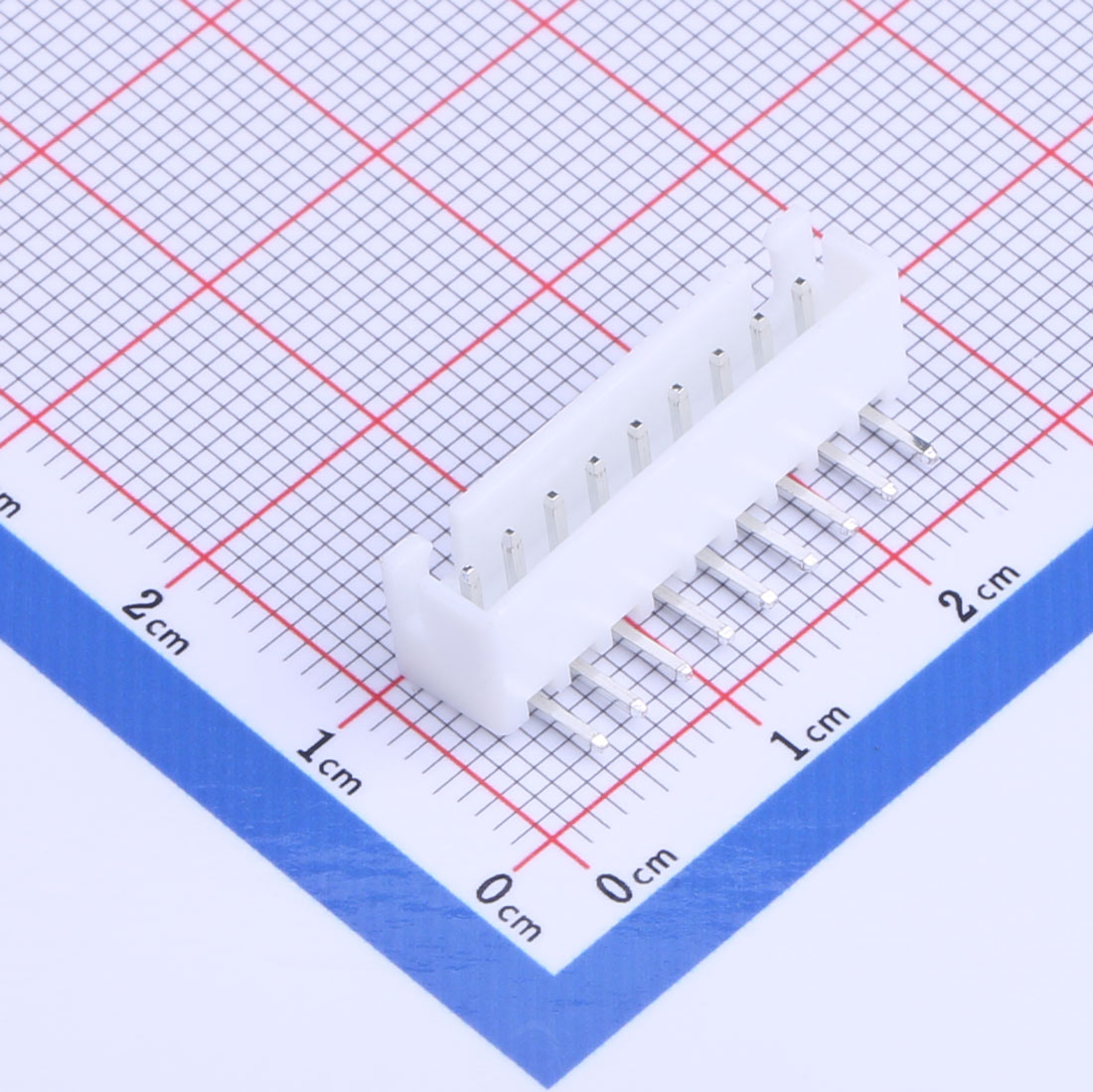

Wire to Board Connector, XH Connector, 2.5mm Pitch, 1x9P, KH-XH-9A-W
Product Features● 2.5mm pitch● 1x9P single row● Right-angle mounting type● 3A current rating● -25℃ t
Current Rating: 3A AC/DC
Voltage Rating: 250V AC/DC
Temperature Range: -25℃ to +85℃
Contact Resistance: 20mΩ Max
Insulation Resistance: 1000MΩ Min
Product Features
● 2.5mm pitch
● 1x9P single row
● Right-angle mounting type
● 3A current rating
● -25℃ to +85℃ operating temperature
● Push-pull package for secure locking
Product Benefits
● Stable and secure electrical connection
● Space-saving right-angle design
● Easy plug-in and removal with push-pull feature
● Durable under heat and vibration
● Simplifies installation and maintenance
Product Applications
● Consumer electronics: tablets, gaming devices
● Automotive: dashboard modules, sensors
● Industrial automation: control units, compact sensors
● Communication: networking devices, routers
● Medical devices: portable diagnostic tools
Name
Title
Description
Datasheet
Support
Support
If you need design/technical support, please let us know and fill inResponse FormWe will get back to you as soon as possible.
Longevity
The Longevity Program is aimed to provide our customers information from time to time about the expected time that our products can be ordered. The NLP is reviewed and updated regularly by our executive Management Team. View ourlongevity programhere.
