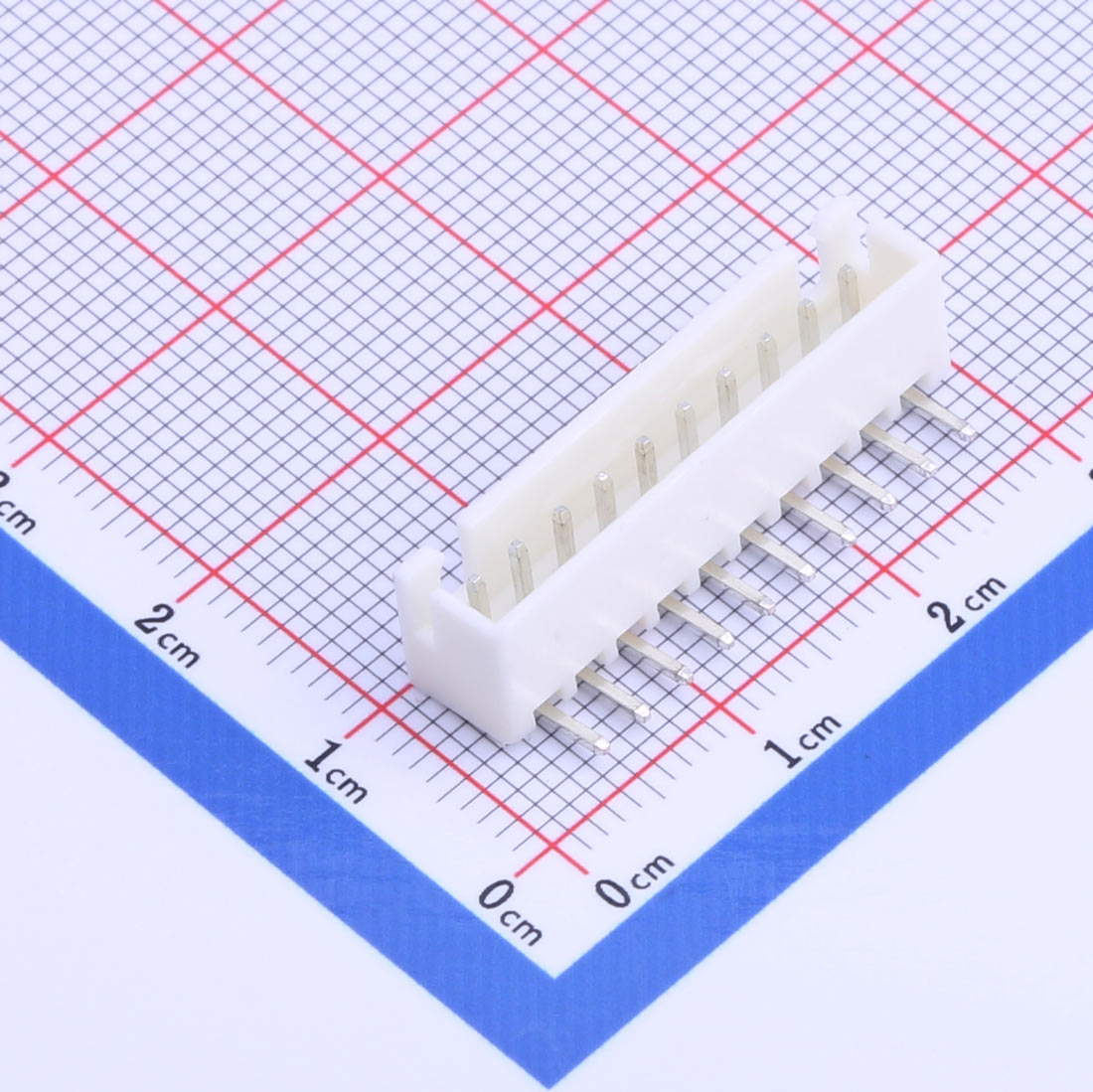

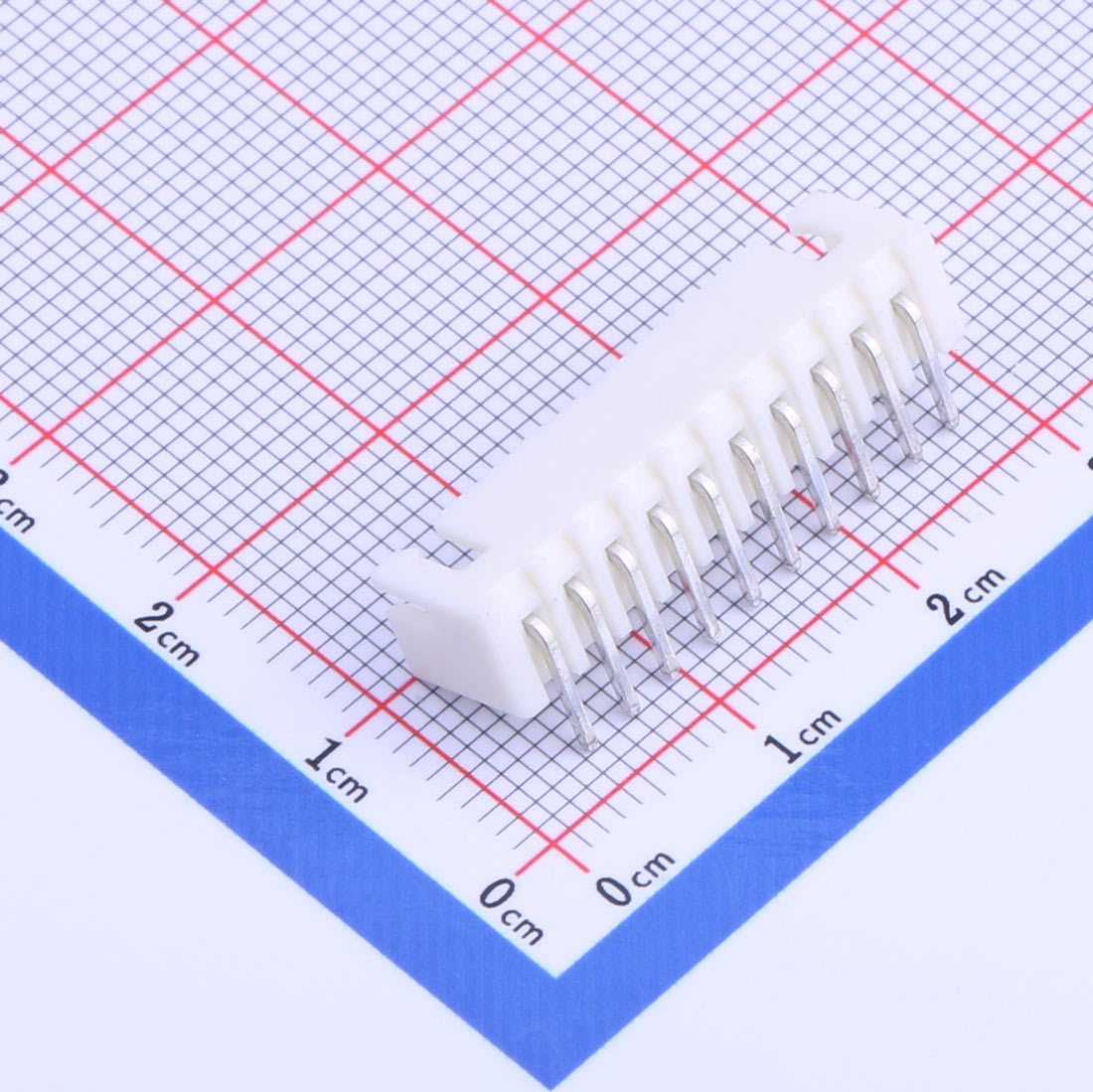

Wire to Board Connector, XH Connector, 2.5mm Pitch, 1x10P, KH-XH-10A-W
Key Features●Supports line-to-board and line-to-line connections●2.5mm pitch and 1x10 pin arrangemen
Current Rating:3A AC,DC
Voltage Rating:250V AC,DC
Temperatuer Range:-25℃~+85℃
Contact Resistance:20mΩ Max
Insulation Resistance:1000MΩ Min
Key Features
●Supports line-to-board and line-to-line connections
●2.5mm pitch and 1x10 pin arrangement for easy installation
●Rated for 3A, ensuring stable signal transmission
●Bent-insertion design for space-efficient connection
Product Advantages
●Reliable: Made with high-quality materials for durability
●Flexible: Works for both line-to-board and line-to-line connections
●Easy to Install: Quick and simple bent-insertion mounting
●High Performance: Low contact resistance for optimal signal transfer
Applications
●Electronics: Used in home appliances, communication devices, and computers
●Industrial Control: Ideal for automation and instrumentation
●LED Lighting: Perfect for LED strips and displays
●Automotive Electronics: Common in circuit boards, lights, and audio systems
Name
Title
Description
Datasheet
Support
Support
If you need design/technical support, please let us know and fill inResponse FormWe will get back to you as soon as possible.
Longevity
The Longevity Program is aimed to provide our customers information from time to time about the expected time that our products can be ordered. The NLP is reviewed and updated regularly by our executive Management Team. View ourlongevity programhere.
