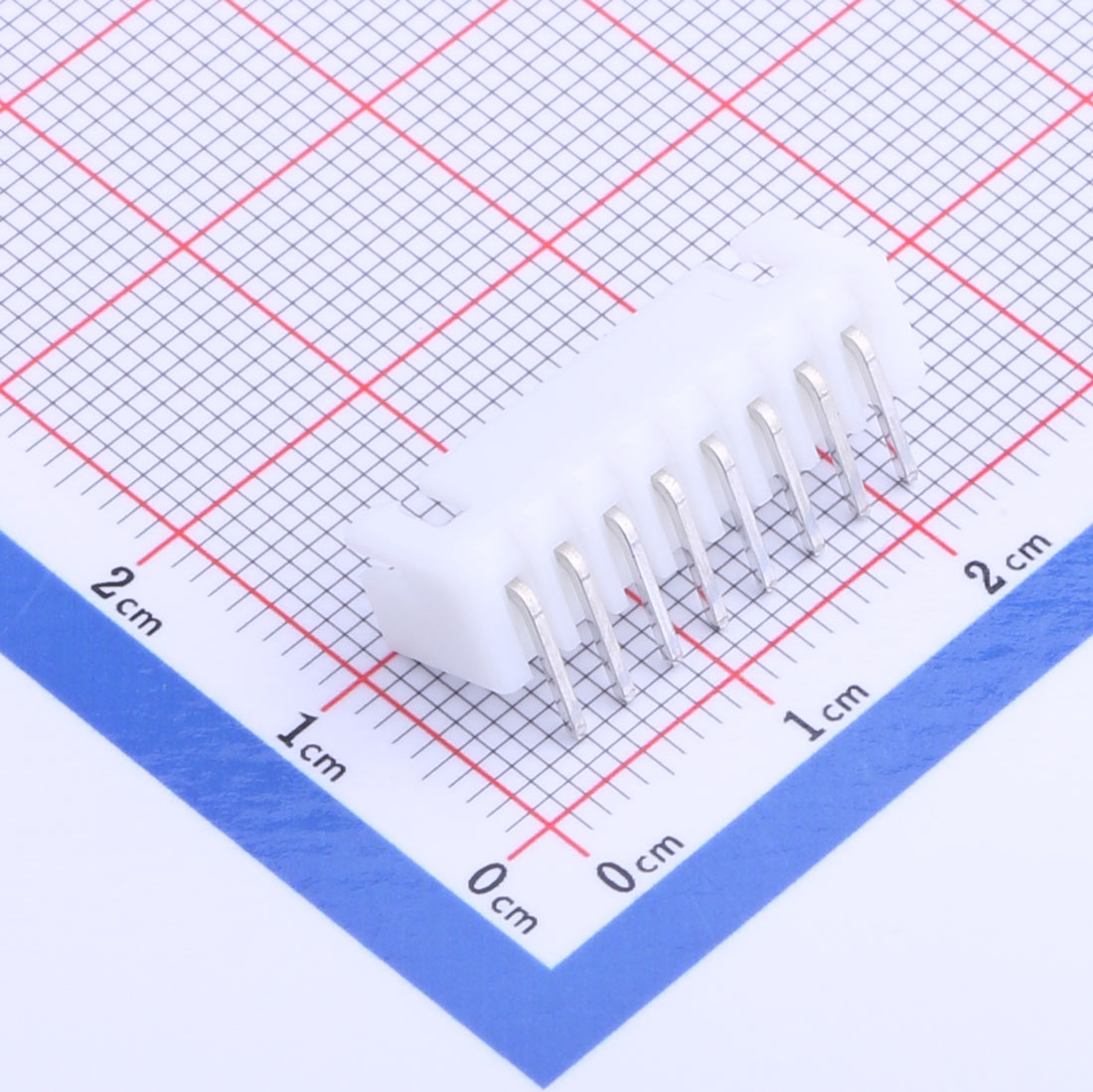

Wire to Board Connector, XH Connector, 2.5mm Pitch, 1x8P, KH-XH-8A-W
Product Features● 2.5mm pitch● 1x8P single row● Right-angle mounting type● 3A current rating● -25℃ t
Current Rating: 3A AC/DC
Voltage Rating: 250V AC/DC
Temperature Range: -25℃ to +85℃
Contact Resistance: 20mΩ Max
Insulation Resistance: 1000MΩ Min
Product Features
● 2.5mm pitch
● 1x8P single row
● Right-angle mounting type
● 3A current rating
● -25℃ to +85℃ operating temperature
● Push-pull package for secure connection
Product Benefits
● Reliable and stable connection
● Saves PCB space with right-angle design
● Easy insertion and removal via push-pull lock
● Resistant to heat and vibration
● Streamlines assembly and maintenance
Product Applications
● Handheld electronics
● Automotive sensor modules
● Industrial control systems
● Communication devices
● Portable medical equipment
